PLANET FWA-2100-NR-EU Industrial 5G NR Outdoor Unit PoE
|
560,40 EUR 562,00 EUR |
|
|
( 666,88 EUR incl. VAT ) ≈ £467.37 | ≈ $625.97 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1196868 |
|---|---|
| Mfg Part No: | FWA-2100-NR-EU |
| UPC/EAN: | 4711605287494 |
| Weight: | 0.123 kg |
Product information for PLANET FWA-2100-NR-EU:
The PLANET FWA-2100-NR is an IP68-rated 5G-NR outdoor gateway built for industrial-grade connectivity. Supporting dual SIM failover, high-speed 5G networking, advanced VPN security, centralized AP control, and GPS tracking, it's ideal for mission-critical outdoor and remote deployments.
5G Redundancy with Dual SIM Slots:
- Automatic WAN failover between two SIMs
- Supports 5G NR DL up to 2.4 Gbps
- Compatible with LTE FDD/TDD, WCDMA, GSM
Wi-Fi Access Point Management:
- Built-in 802.11b/g/n (2.4GHz) interface for setup/config
- Supports up to 128 managed APs
- Captive Portal, VLAN-to-SSID mapping, and RADIUS authentication
- Bulk provisioning and firmware upgrades
Enterprise-Class VPN Security:
- Full VPN suite: IPSec, PPTP, L2TP, GRE, OpenVPN (SSL)
- Up to 30 concurrent VPN tunnels
- Encryption: DES, 3DES, AES 128/192/256-bit
- Authentication: MD5, SHA-1/256/384/512
Robust Firewall and Cybersecurity:
- SPI Firewall, DoS/DDoS protection, content filtering
- NAT ALG, MAC/IP filtering, port forwarding, DMZ
Location Tracking and Industrial Protocols:
- Built-in GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS
- Modbus support for industrial system integration
Centralized Management and Cloud Monitoring:
- Admin via Web GUI, SNMP v1/v2c/v3, SSH, and TLS
- Supports PLANET NMS and CloudViewerPro app
Hardware Overview:
- Ports: 1x Gigabit LAN, 2x Nano SIM, reset button
- Antennas: 3 dBi internal cellular antennas
- Size: 150 x 100 x 240 mm
- Weight: 1020g
- Enclosure: IP68-rated for outdoor durability

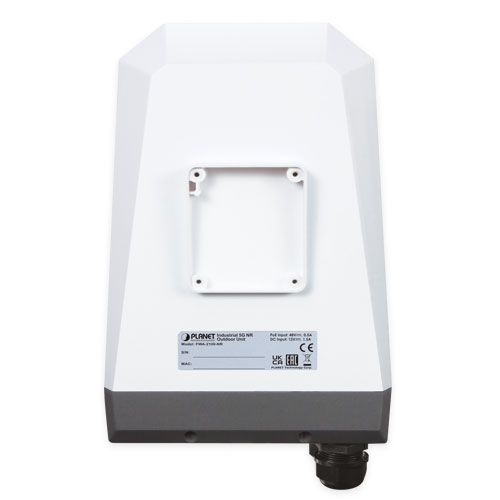

- Installation: Wall or pole mount
- Power: 48V DC PoE+ or 12V DC input
- Max. Power Consumption: 18W
Frequency Bands (EAU Variant):
- 5G NR Sub-6: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78/n79
- LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
- LTE-TDD: B38/B40/B41/B42/B43
- WCDMA: B1/B5/B8
Environment:
- Operating Temp: -20 to 60 °C
- Storage Temp: -40 to 85 °C
- Humidity: 5–90% (non-condensing)
Certifications:
- CE compliant
Wi-Fi Encryption Standards:
- WPA/WPA2/WPA3 (TKIP/AES)
- WEP 64/128-bit
- 802.1x authentication
