PLANET 4-Port 10/100TX 802.3at PoE + 2-Port 10/100TX (60W)

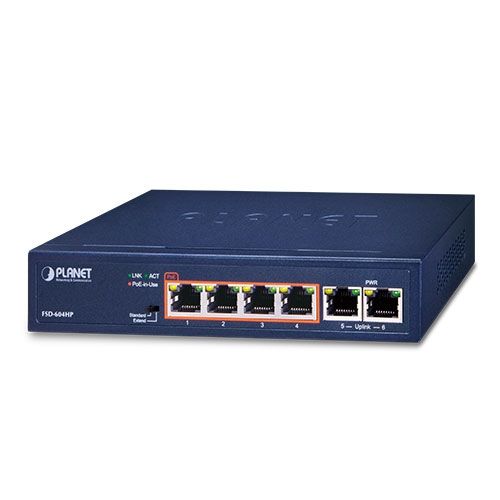

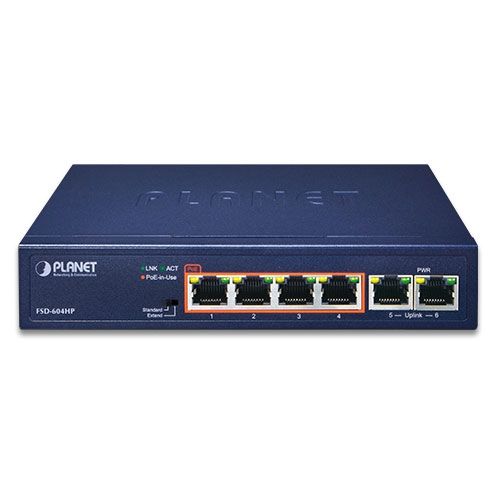

PLANET FSD-604HP – Compact 6-Port Fast Ethernet PoE+ Switch for IP Surveillance Networks

The PLANET FSD-604HP is a space-saving and efficient PoE+ switch designed for SOHO and small surveillance setups. Equipped with four 802.3af/at PoE+ ports and two 10/100Mbps uplink ports, it offers a simple solution for powering and connecting up to four PoE-enabled devices such as IP cameras or wireless APs — even in remote or hard-to-wire locations.

Compact Power Distribution with Extended Reach:

Delivering up to 30 watts per PoE port and a total PoE budget of 60 watts, the FSD-604HP includes an innovative DIP switch that allows switching between standard and extended modes. The Extend mode enables both data and power transmission up to 250 meters at 10Mbps.

Enhanced Network Isolation and Protection:

The unit supports port-based VLAN isolation to minimize broadcast storms and enhance network stability in surveillance setups. It also includes robust surge and ESD protection to ensure stable operation in challenging environments.

Integrated Surveillance and IP Office Solution:

By connecting directly to a 4-channel NVR, each PoE port can manage one IP camera, making it perfect for a full-featured small surveillance solution. Additionally, the switch supports IP phones and wireless APs, making it ideal for IP telephony and access point deployments in office environments.

Technical Specifications (English):

Network Ports:

• 6 x 10/100BASE-TX RJ45 ports (Auto MDI/MDI-X)
• 4 ports support IEEE 802.3af/at PoE (Port 1–4)

Power over Ethernet:

• IEEE 802.3af/at compliant (End-span)
• 30W max per port, 60W total power budget
• Supports 4x 15.4W PDs or 2x 30W PDs
• DIP switch: 100m (Standard), up to 250m (Extend mode at 10Mbps)
• Power output: 52V DC @ 300–600mA
• Power pins: 1/2(+), 3/6(-)

Switching Features:

• Switching architecture: Store-and-Forward
• Switching capacity: 1.2 Gbps
• Throughput: 0.89 Mpps @ 64 bytes
• 2K MAC address table
• Max frame size: 1536 bytes
• Flow control: IEEE 802.3x full duplex, Back pressure for half duplex

Hardware:

• Metal case, desktop form factor (168 x 86 x 32 mm)
• Weight: 499 g

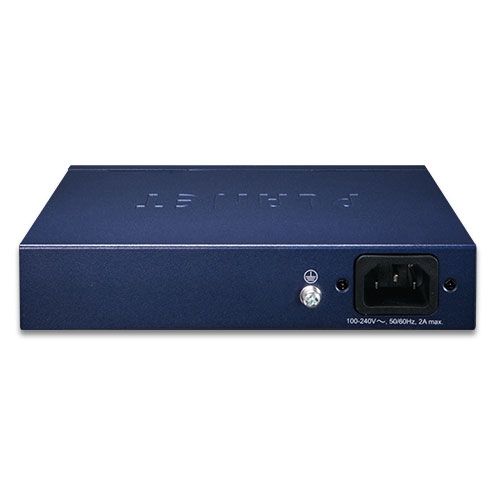

• Internal AC power (100~240V, max. 2A)
• LED indicators for PoE, Link/Act, Power
• Surge protection: ±4KV
• ESD protection: Contact ±4KV, Air ±6KV

Environmental:

• Operating temperature: 0–50°C
• Storage temperature: -10–70°C
• Humidity: 5–95% RH (non-condensing)

Standards Compliance:

• IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
• CE, FCC certified
