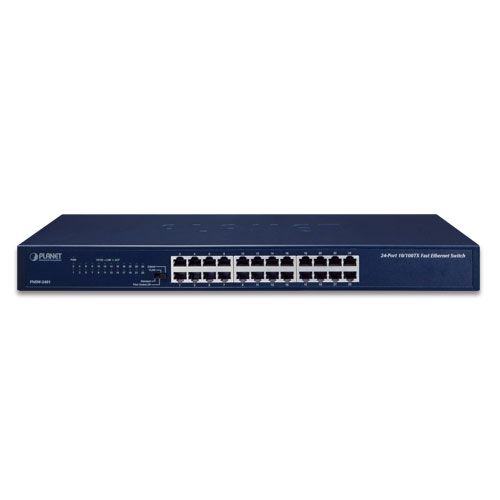

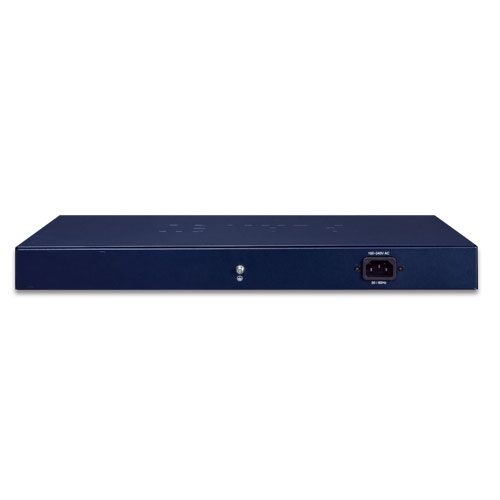

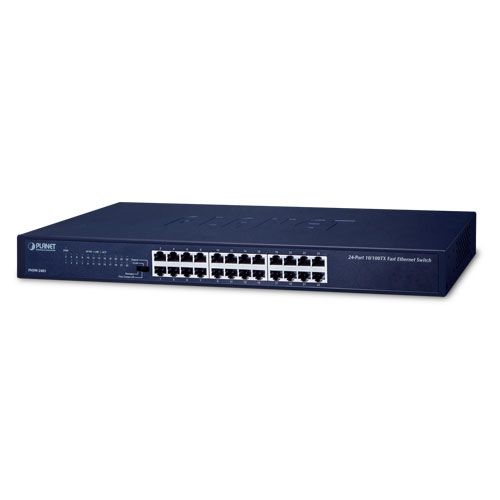

PLANET 24-Port 10/100Base-TX Fast Ethernet Switch
|
79,05 EUR |
|
|
( 94,07 EUR incl. VAT ) ≈ £68.14 | ≈ $89.64 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226723 |
|---|---|
| Mfg Part No: | FNSW-2401 |
| UPC/EAN: | 4711213680021 |
| Weight: | 0.12 kg |
Product information for Planet FNSW-2401:
The PLANET FNSW-2401 is a 24-port Fast Ethernet switch optimized for energy efficiency and high performance. Engineered with advanced Green Networking technology and user-friendly DIP switch modes, this switch offers versatile deployment scenarios while reducing power consumption.
Flexible DIP Switch Modes:
- Standard (Default): Normal switching with 10/100Mbps auto-negotiation.
- Flow Control Off: Disables IEEE 802.3x flow control.
- VLAN Mode: Ports 1–22 are isolated and only communicate with ports 23 and 24.
- Extend Mode: Ports 1–8 support extended distances up to 200 meters at 10Mbps – ideal for long-range installations.
Energy Efficiency:
- Intelligent power scaling based on cable length
- Up to 12% lower energy use without performance compromise
High Network Performance:
- 4.8Gbps switching fabric
- 3.57Mpps packet forwarding rate
- Store-and-Forward architecture ensures smooth and reliable data transfer
Plug-and-Play Operation:
- 10/100Mbps speed auto-negotiation
- Auto MDI/MDI-X for hassle-free cabling
- No setup required for basic operation
Use Cases:
- Backbone Switch: Provides high bandwidth for Fast Ethernet backbone infrastructure
- Department Switch: Ideal for segmenting workgroup traffic while uplinking to a core network
Technical Specifications:
Ports:
- 24 x 10/100BASE-TX RJ45 ports with Auto MDI/MDI-X support
Switching:
- Switch Fabric: 4.8Gbps
- Forwarding Rate: 3.57Mpps
- MAC Address Table: 8K entries
- Max Packet Size: 1522 bytes
Power & Consumption:
- Power Input: 100~240V AC, 0.2A, 50–60Hz
- Max Power Usage: 1.4W / 4.7BTU
Physical & Environmental:
- Dimensions: 440 x 140 x 44 mm (1U)
- Weight: 1.4 kg
- Operating Temperature: 0~50°C
- Humidity: 5–95% RH (non-condensing)
Standards Compliance:
- IEEE 802.3 (10BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3x (Flow Control)
- IEEE 802.3az (Energy Efficient Ethernet)
- FCC Class A, CE certified
