PLANET 24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP
|
300,77 EUR |
|
|
( 357,92 EUR incl. VAT ) ≈ £260.77 | ≈ $350.10 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226101 |
|---|---|
| Mfg Part No: | FGSW-2624HPS |
| UPC/EAN: | 4711605281232 |
| Weight: | 0.12 kg |
Product information for Planet FGSW-2624HPS:

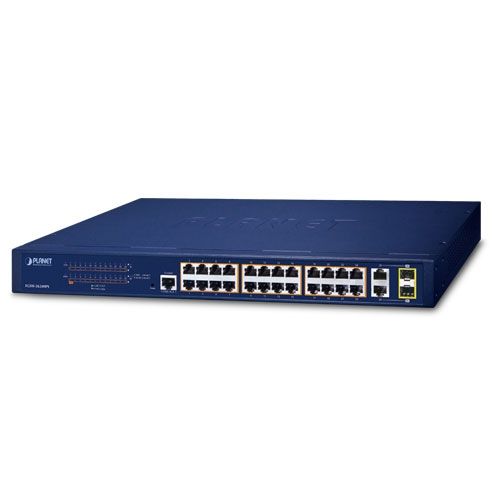

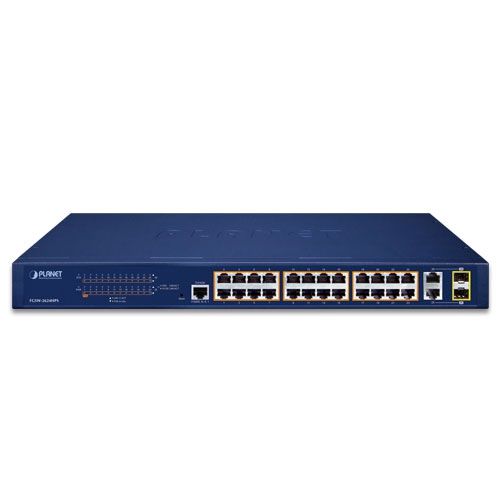

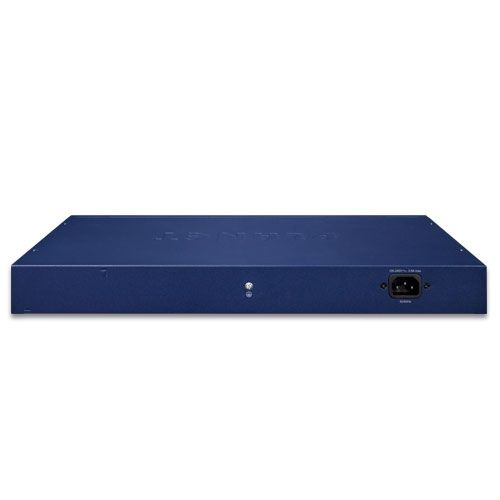

PLANET FGSW-2624HPS – 24-Port Layer 2 Managed PoE+ Switch with IPv6, QoS and Security
The PLANET FGSW-2624HPS is a robust Layer 2 Managed PoE+ switch engineered for SMBs and industrial networks requiring intelligent, centralized management of powered devices. With 24 IEEE 802.3af/at Fast Ethernet PoE+ ports and 2 Gigabit TP/SFP combo uplink interfaces, this switch delivers up to 30W per port and a total PoE power budget of 240W—ideal for powering IP cameras, VoIP phones, and wireless APs.
Smart PoE Features for Surveillance
- PD Alive Check: Automatically reboots unresponsive powered devices
- PoE Port Sequence: Staggered power-up during system boot
- PoE Schedule: Time-based power provisioning for energy efficiency
Extended Reach up to 250m
In Extend mode, the switch delivers PoE power and data up to 250 meters at 10Mbps—ideal for large-scale IP surveillance installations with long cable runs.
Advanced Layer 2/4 Features
- VLANs: Port-based, 802.1Q, Q-in-Q, Voice VLAN
- STP/RSTP/MSTP, LACP Link Aggregation
- IGMP/MLD Snooping for multicast
- ACLs: IPv4/IPv6 IP and MAC-based
- Storm control for broadcast, multicast, ARP, and unknown traffic
Secure and Flexible Network Management
- DHCP Snooping, ARP Inspection, and MAC-IP binding
- Admin access via Web, Telnet, Console, SNMP v1/v2c/v3
- Dual-stack IPv4/IPv6 support
- Syslog event logging and PLANET Smart Discovery Utility
Technical Specifications:
Ports:
- 24 x 10/100BASE-TX RJ45 with PoE+
- 2 x 10/100/1000BASE-T RJ45 (shared)
- 2 x 1000BASE-X SFP slots (shared with ports 25–26)
- 1 x RJ45 Console
Switching:
- Architecture: Store-and-Forward
- Switching Capacity: 8.8 Gbps
- MAC Address Table: 16K
- Jumbo Frame: 16K Bytes
- Data Buffer: 4Mbit
Power over Ethernet:
- Standard: IEEE 802.3af/at, Mid-span
- Per Port: Up to 30W (53V DC)
- Total Budget: 240W
- Power Pins: 4/5 (+), 7/8 (-)
- Features: Per-port enable/disable, scheduling, sequencing, budget limits
Chassis & Environment:
- Dimensions: 441.2 x 207.5 x 44 mm (1U)
- Weight: 2.79 kg
- Enclosure: Metal, rack-mountable
- Fans: 2
- Max Consumption: 281W / 959 BTU
- Operating Temp: 0 ~ 50 °C
- Humidity: 10 ~ 90% RH (non-condensing)
Compliance:
- Standards: IEEE 802.3af/at, 802.1Q, 802.1D/w/s, 802.1p, 802.3x, LLDP
- Protocols: RFCs for IGMP v1/v2/v3, MLD v1/v2
- Certifications: FCC Class A, CE
