PLANET 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP

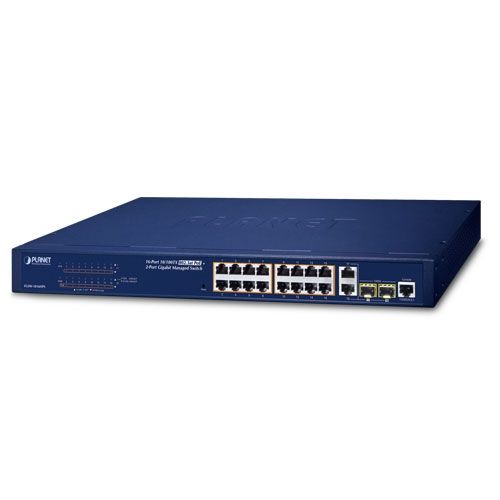

PLANET FGSW-1816HPS – 16-Port Fast Ethernet PoE+ Layer 2 Managed Switch with Gigabit Combo Uplinks

The PLANET FGSW-1816HPS is a cost-optimized, intelligent Layer 2 PoE+ managed switch designed for small and medium-sized businesses, IP surveillance networks, and enterprise environments. It integrates 16 10/100BASE-TX PoE+ ports and two Gigabit TP/SFP combo uplink interfaces, offering up to 240 watts total PoE budget with full management capabilities.

With full support for IPv4/IPv6 dual stack, advanced VLAN/QoS, IGMP/MLD snooping, and strong Layer 2–4 security features, the switch is well-equipped for traffic control and high network reliability. Intelligent PoE functions like PD alive check, power scheduling, and port sequencing ensure operational efficiency and cost-saving energy management.

Key Features:

• 16 x Fast Ethernet PoE+ ports, 2 x Gigabit TP/SFP combo uplinks
• Compliant with IEEE 802.3af/at (up to 30W/port)
• Total PoE budget: 240 watts
• Intelligent PoE management: scheduling, port sequence, PD alive check
• Extend mode: up to 250m PoE reach
• VLAN, QoS, ACL, LACP, IGMP/MLD snooping, and IPv6 support

Technical Details:

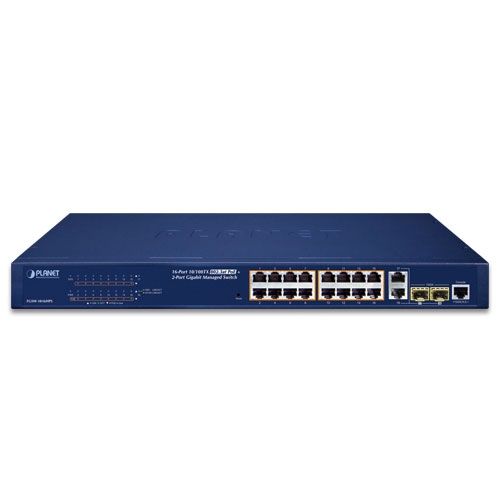

Physical Interfaces:

• 16 x 10/100BASE-TX PoE+ ports
• 2 x 10/100/1000BASE-T RJ45 uplinks
• 2 x 1000BASE-X SFP (shared with ports 17–18)
• RS232 console port, reset button

PoE Specifications:

• IEEE 802.3af/at compliant
• Max. 30W per port
• Total budget: 240W
• Remote PoE up to 250m in extend mode
• Intelligent PD detection, PoE port delay, per-port budget control

Switching Features:

• Store-and-forward architecture
• Switching capacity: 7.2Gbps, Throughput: 5.35Mpps
• 16K MAC address table, 16K jumbo frames

Layer 2 Features:

• VLAN: Port-based, 802.1Q, Q-in-Q, GVRP, Voice VLAN
• STP, RSTP, MSTP with BPDU Guard and filtering
• Link Aggregation: LACP and static trunks (2 ports max.)
• Loop detection, port mirroring, rate limiting

Quality of Service:

• Per-port ingress/egress control
• Storm control: Broadcast, Multicast, ARP, DLF, ICMP
• CoS policies: 802.1p, DSCP, TCP/UDP prioritization
• WRR and strict priority queues

Multicast Support:

• IGMP v1/v2/v3 and MLD v1/v2 snooping
• Multicast VLAN Registration (MVR)

Security Features:

• ACL: MAC/IP (IPv4/IPv6)
• Static MAC binding and filtering
• DHCP snooping, ARP inspection, IP source guard
• MAC-IP-Port binding for network access control
• Secure management: SSH, SSL, SNMPv3

Management:

• Interfaces: Web GUI, Telnet CLI, SNMP v1/v2c/v3
• IPv4/IPv6 dual stack
• Features: LLDP, SNTP, Syslog, Smart Discovery Tool
• Firmware upgrades via HTTP

Hardware and Environmental Specs:

• Dimensions: 441.2 x 207.5 x 44 mm (1U)
• Weight: 2.3 kg

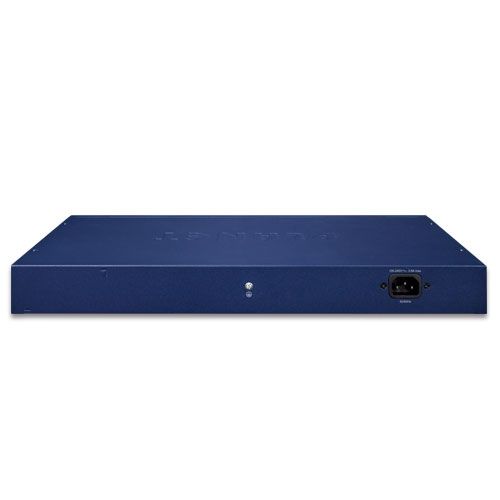

• Power supply: 100–240V AC, max. 270W
• Cooling: 2 fans
• ESD protection: ±6KV, Surge protection: ±6KV
• Operating temp: 0–50°C, Humidity: 5–95% RH
