PLANET 10GBase-T PCI Express Server Adapter

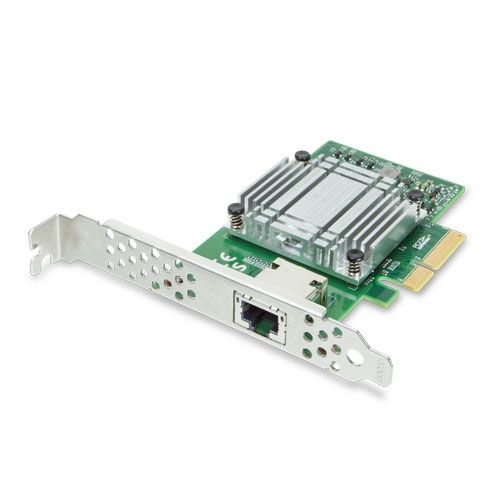

PLANET ENW-9803 V3 – 10GBASE-T PCIe x4 Multi-Gigabit Server Network Adapter

PLANET’s ENW-9803 V3 delivers a powerful and cost-effective solution to upgrade your network to multi-gigabit speed. With support for 10G/5G/2.5G/1G/100M Ethernet over standard RJ45, this adapter is designed using the Marvell AQtion controller and PCIe 3.0 x4 interface for high-performance server and workstation connectivity.

Key Features:

• 1 x 10GBASE-T RJ45 Port (Supports 10M/100M/1G/2.5G/5G/10G)
• PCI Express v3.0 x4 interface
• IEEE 802.3an/bz/ab/u compliant, NBASE-T compatible
• 16K jumbo frame support for optimized performance
• PXE Boot, iSCSI, FCoE, DPDK support
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Supports IEEE 802.1Q VLAN tagging and 802.1p CoS
• Operates with Cat.6a/7 cabling up to 100 meters
• Low power draw at just 4.7W

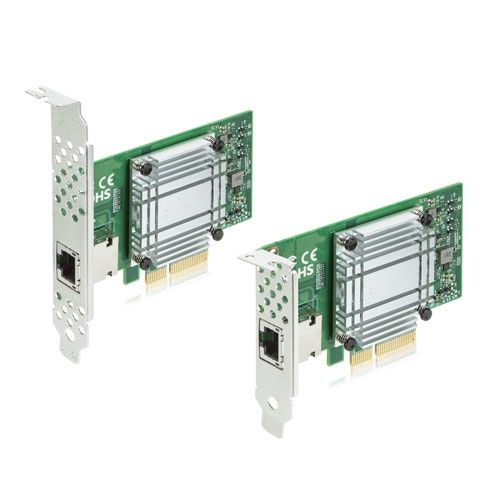

• Includes low-profile bracket for flexible installation

Advantages:

• More cost-effective than CX4 or SFP+ solutions
• Flexible speed negotiation across multiple cable types
• Utilizes standard RJ45 cabling, no transceivers needed
• Plug-and-play for a wide range of OS platforms

Technical Specifications:

Interface:

• PCIe 3.0 x4
• 1 x 10GBASE-T RJ45 port
• LED Indicators: 10G (Green), 5G/2.5G/1G/100M (Amber), LNK/ACT (Green)

Speed Support:

• 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps

Cable Compatibility:

• Cat.5e for 1G/2.5G
• Cat.6 for 1G/2.5G/5G
• Cat.6a/7 for 10G up to 100m

Advanced Features:

• IEEE 802.3x flow control
• IEEE 802.1Q VLAN support
• IEEE 802.1p CoS support
• Jumbo frame support up to 16K bytes
• Supports iSCSI, FCoE, PXE boot, and DPDK
• Supports Energy Efficient Ethernet (IEEE 802.3az)

OS Compatibility:

• Windows Server 2008R2–2019R2 (64bit)
• Windows 7/8/10 (32/64bit)
• Linux Kernel 2.6.32.x – 5.x, CentOS/RHEL, Ubuntu, UOS V20
• VMware ESX/ESXi 4.x – 6.x

Physical:

• Dimensions: 120 x 109 x 69 mm
• Weight: 82g
• Power Consumption: 4.7W typical / 16 BTU

Environment:

• Operating Temp: 0 – 50 °C
• Storage Temp: -10 – 85 °C
• Humidity: 5 – 95% RH (non-condensing)

Package Includes:

• ENW-9803 Server Adapter
• Quick Installation Guide
• Low-profile bracket

Certifications:

• FCC Part 15 Class B, CE
