PLANET 10G SFP+ Server Adapter

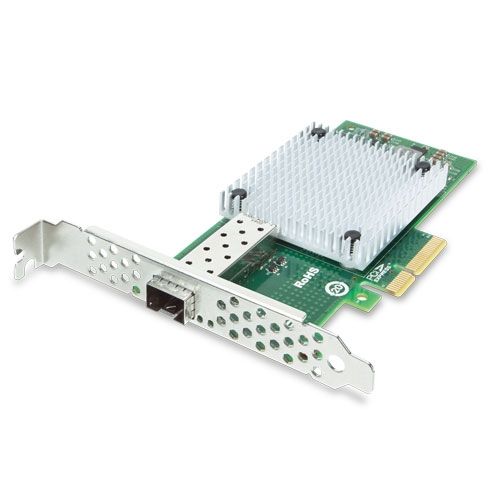

PLANET ENW-9801 V3 – 10G SFP+ PCIe x4 Server Adapter for High-Performance Applications

The PLANET ENW-9801 Version 3 is a powerful and compact PCI Express server adapter designed to meet the increasing demands of high-bandwidth and virtualized networking. Featuring a single 10G SFP+ port and Intel®-based controller, it ensures outstanding speed, low latency, and compatibility with modern OS environments.

Key Features:

• 1 x 10G SFP+ Slot (compatible with SR, LR, LRM modules)
• PCIe x4 Interface (Rev. 2.0)
• IEEE 802.3ae compliant 10Gbps Ethernet
• Supports Jumbo Frames up to 9K Bytes
• IEEE 802.1Q VLAN, 802.1p CoS, and Flow Control
• IEEE 1588 PTP support (Transparent Clock Mode)
• iSCSI, FCoE, PXE Boot, and DPDK Ready
• Low power consumption (4.8W typical)

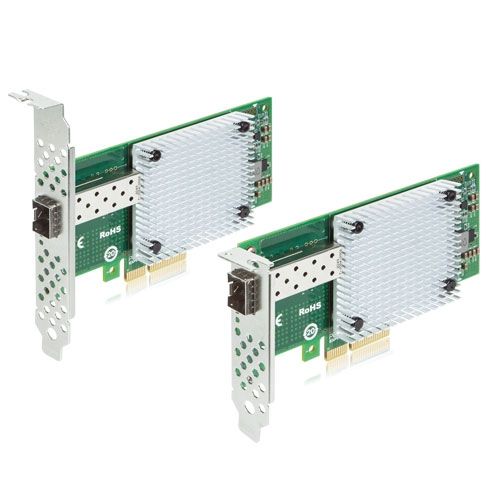

• Includes low-profile bracket for flexible deployment

Ideal Applications:

• High-performance virtualized servers
• Data center top-of-rack (ToR) integration
• 10G uplink for enterprise backbone switches
• SAN/NAS server deployments with iSCSI or FCoE

Technical Specifications:

Interface:

• PCI Express Rev. 2.0, x4 Lane
• 1 x SFP+ Port
• LED Indicators: LNK Speed (Green), LNK/ACT (Green)

Module Support:

• SFP+ SR (short-range)
• SFP+ LR (long-range)
• SFP+ LRM (multimode long-range)

Network Features:

• Jumbo Frames: 4K / 9K Bytes
• VLAN tagging (IEEE 802.1Q)
• IEEE 802.3x Full-Duplex Flow Control
• IEEE 802.1p CoS traffic prioritization
• Link Aggregation (IEEE 802.3ad)
• Energy Efficient Ethernet (IEEE 802.3az)

Boot & Virtualization Features:

• PXE Boot
• FCoE (Fiber Channel over Ethernet)
• iSCSI
• DPDK (Data Plane Development Kit)

OS Compatibility:

• Windows Server 2008R2–2019R2 (64bit)
• Windows 7, 8, 10 (32/64bit)
• Linux Kernel 2.6.32.x – 5.x
• CentOS/RHEL 6.x–7.x, Ubuntu 14.x–16.x, UOS V20
• VMware ESX/ESXi 4.x–6.x

Physical:

• Dimensions: 120 x 133 x 68 mm
• Weight: 93g
• Power Consumption: Max. 4.8W (16.3 BTU)

Environmental:

• Operating Temp: 0 – 50 °C
• Storage Temp: -10 – 85 °C
• Humidity: 5 – 95% RH (non-condensing)

Package Includes:

• ENW-9801 V3 10G NIC
• Quick Installation Guide
• Low-profile bracket

Certifications:

• FCC Class A, CE
