PLANET 4-Port 10/100/1000T 802.3at PoE+ PCI-E (120W PoE)
|
257,06 EUR |
|
|
( 305,90 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 1489544 |
|---|---|
| Mfg Part No: | ENW-9740P |
| UPC/EAN: | 4711605283861 |
| Weight: | 0.39 kg |
Product information for Planet ENW-9740P:

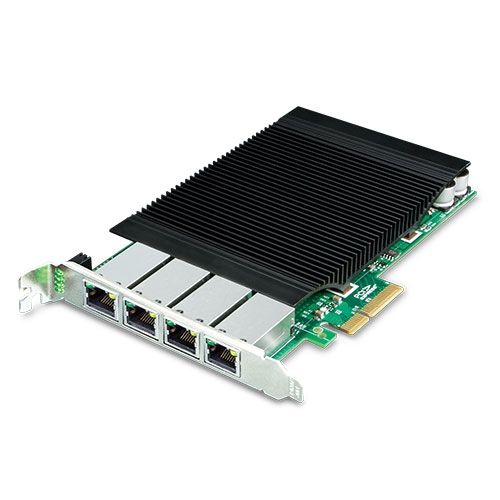

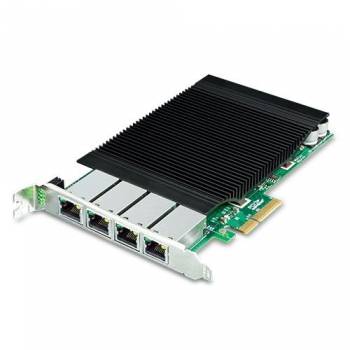

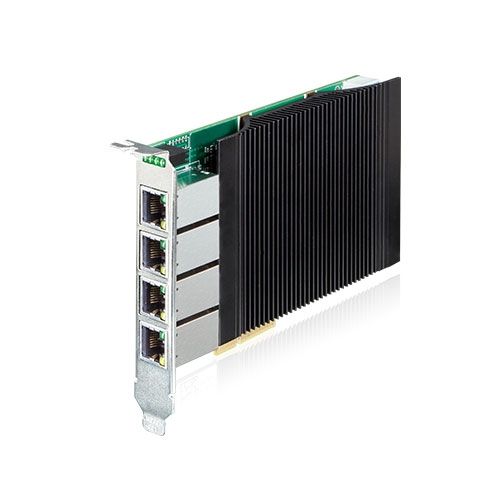

The PLANET ENW-9740P is a high-performance quad-port 10/100/1000T PCIe Ethernet adapter with IEEE 802.3at PoE+ support. It adds up to 120W of PoE capability (95W recommended if temperature exceeds 25°C) to industrial PCs and servers, enabling the simultaneous transfer of data and power to IP-based devices.
Powered by an Intel® I350 server-grade GbE controller, the ENW-9740P supports a wide range of applications—from powering PoE IP cameras to managing wireless APs or VoIP phones—with reliable throughput, advanced offloading, and VLAN tagging support. It is a cost-effective, server-grade solution for high-density PoE deployments.
Key Features:
- 4 x 10/100/1000 Mbps RJ45 PoE+ ports (30W per port)
- Total PoE budget up to 120W via Molex (95W max over 25°C)
- Intel® I350 Server-Class GbE Controller
- PCI Express x4 interface (Rev. 2.1)
- IEEE 802.1Q VLAN, Jumbo Frames (9.5K), Flow Control
- Plug-and-play support for Windows Server, Linux, VMware
- Auto-detection and classification of powered devices (PD)
- Perfect for surveillance, industrial Ethernet, and wireless infrastructure
Technical Specifications:
Interface:
- 4 x RJ45 Ethernet ports (10/100/1000 Mbps)
- PCIe x4 slot, compliant with PCIe Rev. 2.1
- MAC Controller: Intel® I350
PoE Functionality:
- IEEE 802.3at PoE+ compliant (End-span)
- Max. per port output: 30W @ 50V DC
- PoE Power Budget:
- 60W via PCIe slot only
- 120W via 4-pin Molex connector (recommended 95W >25°C)
- Pin Assignment: 1/2 (+), 3/6 (–)
Advanced Features:
- VLAN Tagging (IEEE 802.1Q)
- Jumbo Frames up to 9.5K Bytes
- IEEE 802.3x Flow Control
- IP, TCP, UDP Checksum Offload
- Receive Side Scaling (RSS) for CPU optimization
Operating System Compatibility:
- Windows Server 2008R2–2022R2 (64-bit)
- Windows 7/8/10/11 (32/64-bit)
- Linux (Kernel 2.6.x/3.x/4.x or later)
- VMware ESX/ESXi 2.6.x to 6.x+
- macOS (limited support)
Physical:
- Dimensions: 169 x 121 x 18 mm
- Weight: 251 g
- Max. Power Consumption: 5W
- LED Indicators: Link/Activity per port
Environmental:
- Operating Temp: -10 ~ 60 °C
- Storage Temp: -40 ~ 70 °C
- Humidity: 5–90% RH (non-condensing)
Package Includes:
- ENW-9740P Server Adapter
- QR Code Info Sheet
Certifications:
- FCC Class B, CE approved
