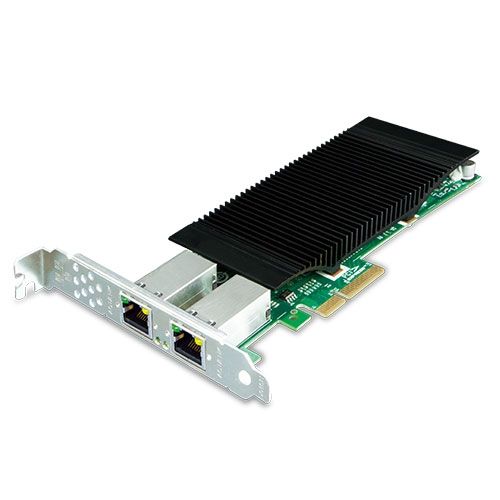

PLANET 2-Port 10/100/1000T 802.3at PoE+ PCI-E (60W PoE)
|
177,99 EUR |
|
|
( 211,81 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1489545 |
|---|---|
| Mfg Part No: | ENW-9720P |
| UPC/EAN: | 4711605283854 |
| Weight: | 0.28 kg |
Product information for Planet ENW-9720P:
The PLANET ENW-9701 is a high-performance Gigabit Ethernet adapter featuring a 1000BASE-X SFP slot and PCI Express interface. Designed for use in data-intensive server environments, it supports full-duplex transmission at 2000Mbps and is ideal for extending fiber network connectivity up to 120 kilometers using standard SFP modules.
Key Features:
- 1 x 1000BASE-X SFP Slot (modular fiber support)
- PCI Express Host Interface (Rev. 1.1, 1 lane)
- Supports distances from 550m (MMF) up to 120km (SMF)
- Jumbo frame support up to 9K Bytes
- IEEE 802.1Q VLAN Tagging
- IP, TCP, UDP checksum offloading
- Low power consumption – optimized for 24/7 server operation
- Compatible with Windows Server, Windows 7–11, Linux, VMware, and macOS
Application Scenarios:
- High-end servers and storage platforms
- Industrial PCs and terminal systems
- Surveillance video capture systems
- POS systems and kiosks
Technical Specifications:
Interface:
- Host Bus: PCIe Rev. 1.1, 1 Lane
- Media: 1 x SFP Slot (LC interface)
- LED Indicators: Link / Activity
Cabling Options:
- Multi-mode: 50/125μm & 62.5/125μm
- Single-mode: 9/125μm
Networking Features:
- IEEE 802.3z 1000BASE-X
- IEEE 802.3x Flow Control
- IEEE 802.1Q VLAN Tagging
- Jumbo Frame: 9K Bytes
- Receive Side Scaling (RSS)
- IP, TCP, UDP Checksum Offloading
- On-chip transmit/receive buffer support
Operating System Compatibility:
- Windows Server 2008R2 – 2022R2 (64-bit)
- Windows 7/8/10/11 (32/64-bit)
- Linux Kernel 2.6.x/3.x/4.x or later
- VMware ESX/ESXi 2.6.x to 6.x or later
- macOS 10.7 or later
Dimensions & Environmental:
- Size: 121.4 x 119.5 mm
- Operating Temp: 0–65°C
- Storage Temp: -10–85°C
- Humidity: 5–95% (non-condensing)
Compliance:
- FCC Part 15 Class B, CE certified
