PLANET 1000Base-X SFP PCI Express Gigabit Ethernet Adapter

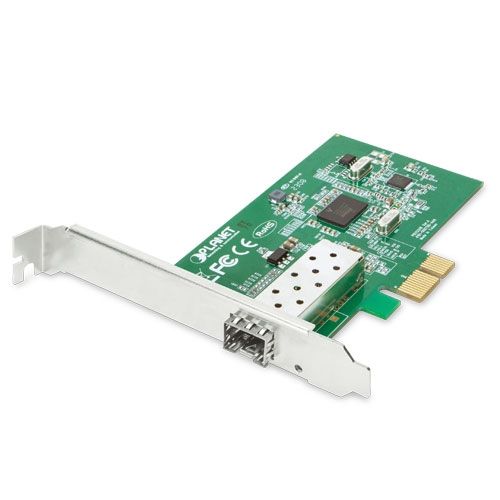

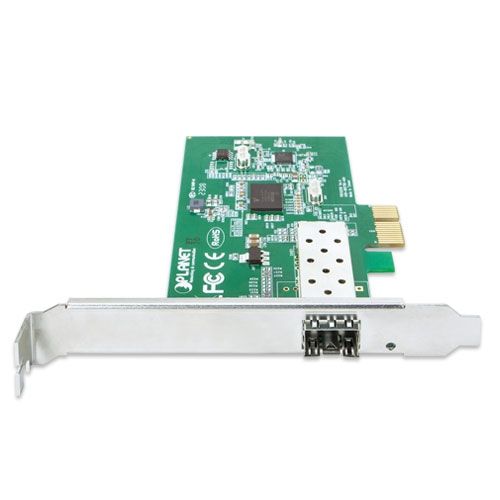

PLANET ENW-9701 – PCIe 1000BASE-X SFP Gigabit Ethernet Adapter for Long-Distance Fiber Networking

The PLANET ENW-9701 is a high-performance Gigabit Ethernet adapter featuring a 1000BASE-X SFP slot and PCI Express interface. Designed for use in data-intensive server environments, it supports full-duplex transmission at 2000Mbps and is ideal for extending fiber network connectivity up to 120 kilometers using standard SFP modules.

Key Features:

• 1 x 1000BASE-X SFP Slot (modular fiber support)
• PCI Express Host Interface (Rev. 1.1, 1 lane)
• Supports distances from 550m (MMF) up to 120km (SMF)
• Jumbo frame support up to 9K Bytes
• IEEE 802.1Q VLAN Tagging
• IP, TCP, UDP checksum offloading
• Low power consumption – optimized for 24/7 server operation
• Compatible with Windows Server, Windows 7–11, Linux, VMware, and macOS

Application Scenarios:

• High-end servers and storage platforms
• Industrial PCs and terminal systems
• Surveillance video capture systems
• POS systems and kiosks

Technical Specifications:

Interface:

• Host Bus: PCIe Rev. 1.1, 1 Lane
• Media: 1 x SFP Slot (LC interface)
• LED Indicators: Link / Activity

Cabling Options:

• Multi-mode: 50/125μm & 62.5/125μm
• Single-mode: 9/125μm

Networking Features:

• IEEE 802.3z 1000BASE-X
• IEEE 802.3x Flow Control
• IEEE 802.1Q VLAN Tagging
• Jumbo Frame: 9K Bytes
• Receive Side Scaling (RSS)
• IP, TCP, UDP Checksum Offloading
• On-chip transmit/receive buffer support

Operating System Compatibility:

• Windows Server 2008R2 – 2022R2 (64-bit)
• Windows 7/8/10/11 (32/64-bit)
• Linux Kernel 2.6.x/3.x/4.x or later
• VMware ESX/ESXi 2.6.x to 6.x or later
• macOS 10.7 or later

Dimensions & Environmental:

• Size: 121.4 x 119.5 mm
• Operating Temp: 0–65°C
• Storage Temp: -10–85°C
• Humidity: 5–95% (non-condensing)

Compliance:

• FCC Part 15 Class B, CE certified
