Planet L3 48-Port SFP28 Managed Data Center Switch DCS-7342-
|
6.071,63 EUR |
|
|
( 7.225,24 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1196501 |
|---|---|
| Mfg Part No: | DCS-7342-48Y8C |
| UPC/EAN: | 4711605288095 |
| Weight: | 0.12 kg |
Product information for Planet DCS-7342-48Y8C:

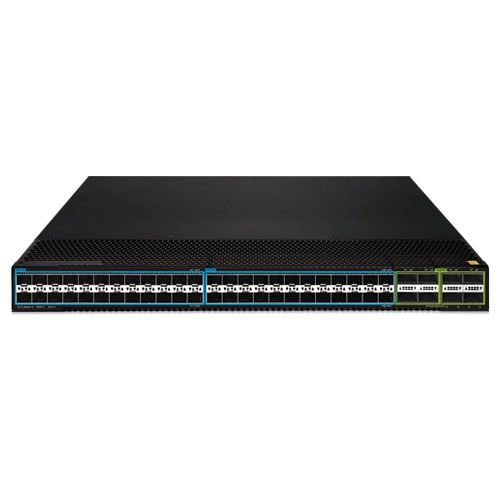

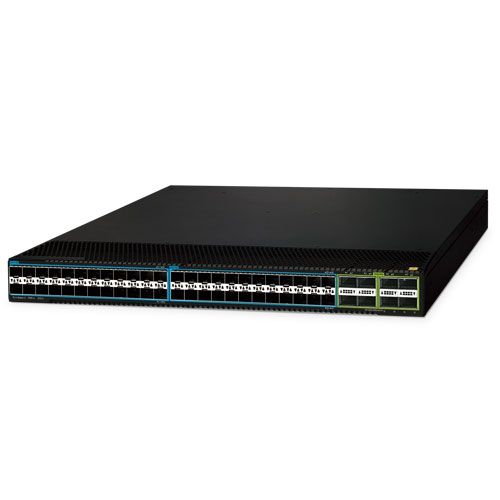

The PLANET DCS-7342-48Y8C is a next-generation data center switch equipped with 48 x 25G SFP28 downlink ports and 8 x 100G/40G QSFP28 uplink ports. Designed for high-demand environments like cloud computing, high-frequency trading, and enterprise backbones, it supports full Layer 2–4 functionality, VXLAN/EVPN, MLAG, and hardware stacking.
Key Highlights:
- 48 x 25G SFP28 + 8 x 100G QSFP28 ports
- Switching capacity: 4Tbps, Forwarding rate: 2000Mpps
- Advanced Layer 3 routing: OSPF, BGP, IS-IS, RIPng
- Full VXLAN support (L2, L3, EVPN), GRE, BFD, PBR
- Stacking with up to 2 devices, 200Gbps stack bandwidth
- Enhanced QoS: 8 queues/port, SP, WRR, DRR, WRED
- MAC/IP ACLs, DHCP Snooping, IP Source Guard
- Web GUI, CLI, SNMP v1/v2c/v3, NETCONF, SSHv2
Technical Details:
Physical Interfaces:
- 48 x 25G SFP28 (backward-compatible with 10G)
- 8 x 100G/40G QSFP28 (40G QSFP+ compatible)

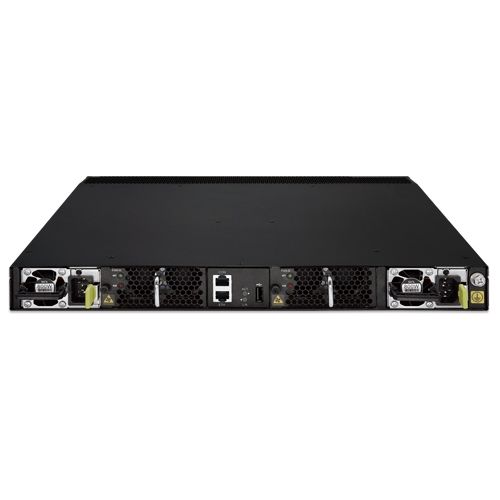

- 1 x RJ45 console, 1 x 1G RJ45 management, 1 x USB 2.0
Performance:
- Switching Fabric: 4.0Tbps, Throughput: 2000Mpps
- MAC Address Table: 96K, VLANs: 4,000, ARP: 100K
- Routing Tables: 128K (IPv4), 64K (IPv6)
- Jumbo Frames up to 9KB
Routing & Protocols:
- IPv4/IPv6: Static + Dynamic (OSPFv2/v3, BGP, IS-IS, RIPng)
- VXLAN, EVPN, GRE, PBR, BFD, ND, PMTU, VRRP
- Multicast: PIM-DM, IGMPv1/v2/v3, MLDv1/v2
Security:
- 802.1X, RADIUS, TACACS+
- DHCP Snooping, ARP Inspection, IP Source Guard
- ACLs (L2–L4), MAC Binding, DoS/DDoS Protection
Quality of Service (QoS):
- 8 priority queues per port
- Scheduling: SP, WRR, DRR, SP+WRR
- DSCP/CoS tagging and remarking
- Traffic shaping, flow/VLAN-based QoS
- Storm Control (DLF, Multicast, Broadcast)
Layer 2 Features:
- VLANs: 802.1Q, Q-in-Q, Flexible Q-in-Q
- Spanning Tree: STP, RSTP, MSTP + protections
- Link Aggregation: LACP, MLAG (cross-device)
- Port Mirroring, LLDP, IGMP/MLD Snooping
Management:
- CLI, SSH, Telnet, Web, SNMPv1/v2c/v3, NETCONF
- Logging: Syslog, RMON, BootROM upgrade, hot patch
- Monitoring: Fan & Temp alerts, DDM, NTP/SNTP
- Config backup via USB, FTP, TFTP
Hardware Specs:
- Dimensions: 440 x 400 x 44 mm (1U)
- Weight: 8.1 kg (with dual PSU)
- Power: 2 x DCS-PWR800AC (100–240V AC)
- Power Consumption: Max. 207W
- Cooling: 2 x hot-swappable smart fan modules
Certifications:
- FCC Part 15 Class A, CE, RoHS
Ideal Applications:
- Cloud data centers
- Enterprise data core networks
- High-frequency trading infrastructures
- Video streaming and high-throughput network backbones
