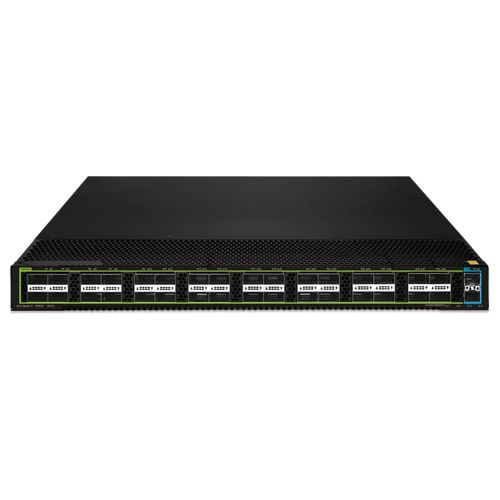

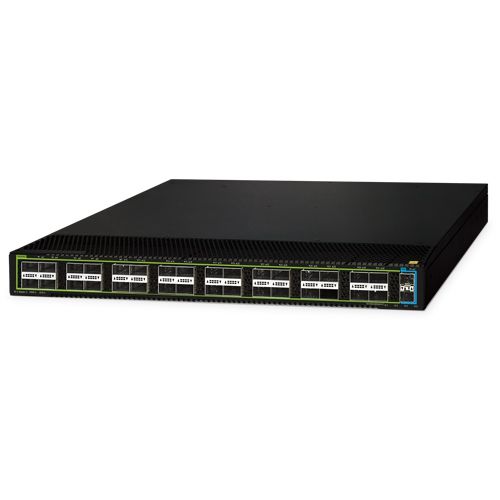

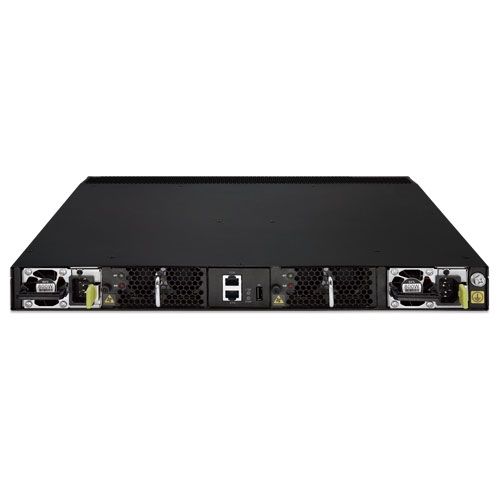

PLANET L3 32-Port QSFP28 Managed Data Center Switch DCS-7342
|
8.090,91 EUR |
|
|
( 9.628,18 EUR incl. VAT ) ≈ £7,014.82 | ≈ $9,417.82 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1196500 |
|---|---|
| Mfg Part No: | DCS-7342-32C2X |
| UPC/EAN: | 4711605288101 |
| Weight: | 0.12 kg |
Product information for Planet DCS-7342-32C2X:
The PLANET DCS-7342-32C2X is a powerful and scalable 100G data center switch designed to meet the rigorous demands of modern infrastructure including cloud computing, high-frequency trading, large enterprise data centers, and CDNs. It features 32 100G/40G QSFP28 ports and 2 10G SFP+ ports, providing exceptional bandwidth, reliability, and flexibility for mission-critical operations.
Key Highlights:
- 6.4Tbps switching capacity and 2000Mpps forwarding performance
- 32 x 100G QSFP28 + 2 x 10G SFP+ ports
- Hardware stacking support for up to 2 devices
- MLAG for redundancy and bandwidth utilization
- Full Layer 2–4 switching and routing with VXLAN + EVPN
- Dual hot-swappable power supplies and smart fan modules
- Advanced routing (OSPF, IS-IS, BGP, RIPng)
- ACLs, IP Source Guard, DHCP Snooping, DDoS defense
- 4,000 VLANs, Q-in-Q, IGMP/MLD snooping
Technical Specifications:
Ports:
- 32 x QSFP28 100G/40G ports
- 2 x 10GBASE-SR/LR SFP+ ports
- 1 x RJ45 console port, 1 x 1G RJ45 management port
- 1 x USB 2.0 for config backup/restore
Performance:
- Switching Fabric: 6.4Tbps
- Forwarding Rate: 2000Mpps
- MAC Table: 96K
- VLANs: 4,000 max
- Routing Table: 128K (IPv4), 64K (IPv6)
- Jumbo Frame: 9KB
Stacking & Redundancy:
- Hardware-based stacking via QSFP28/SFP+
- Max. 2 units per stack with single IP management
- Dual redundant power supplies (DCS-PWR800AC)
- Dual hot-swappable smart fans
Network Protocols:
- Layer 2–4 feature set
- Link Aggregation, MLAG, STP/RSTP/MSTP, LLDP
- VXLAN Layer 2/3 with EVPN overlay
- Multicast: PIM-DM, IGMPv1/v2/v3, MLD v1/v2
- QoS: 8 queues per port, SP, DRR, SP+DRR scheduling
Security:
- IEEE 802.1X, RADIUS, TACACS+
- MAC/IP/time-based ACLs, DDoS protection
- DHCP Snooping, ARP Inspection, IP Source Guard
- MAC black hole, port isolation, user binding
Management:
- CLI, Telnet, SSHv2, SNMPv1/v2c/v3, Web UI, NETCONF
- Features: Syslog, NTP/SNTP, RMON, MIB/trap, BootROM upgrades
- Temperature/fan monitoring with alerting
Energy Efficiency:
- Intelligent fan control
- Max. power consumption: 275W
Dimensions & Environment:
- Dimensions (W x D x H): 440 x 400 x 44 mm
- Weight: 8.25 kg (with power modules)
- Operating Temp: 0–50 °C, Humidity: 5–90% (non-condensing)
Application Scenarios:
- Cloud data centers
- Enterprise networks
- High-frequency trading infrastructure
- 100G backbone for VoIP/video/data
Certifications:
- FCC Part 15 Class A, CE, RoHS
Questions & answers
What is the delivery time of PLANET L3 32-Port QSFP28 Managed Data Center Switch DCS-7342?
The article PLANET L3 32-Port QSFP28 Managed Data Center Switch DCS-7342 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet DCS-7342-32C2X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET L3 32-Port QSFP28 Managed Data Center Switch DCS-7342 always at the best possible price. We can give you a discount of 2% on PLANET L3 32-Port QSFP28 Managed Data Center Switch DCS-7342 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
