PLANET CS-6303R Chassis Switch
|
1.370,56 EUR |
|
|
( 1.630,97 EUR incl. VAT ) ≈ £1,188.28 | ≈ $1,595.33 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 478761 |
|---|---|
| Mfg Part No: | CS-6303R |
| Weight: | 0.12 kg |
Product information for Planet CS-6303R:

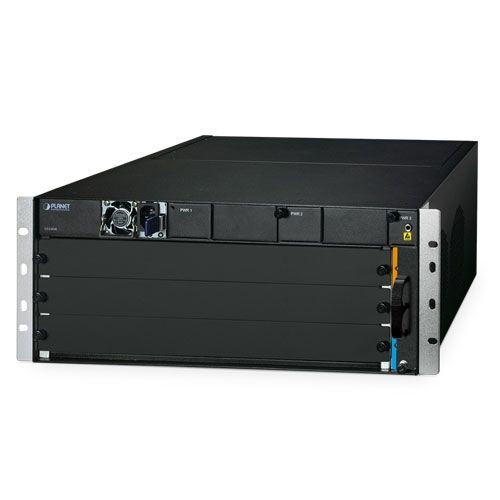

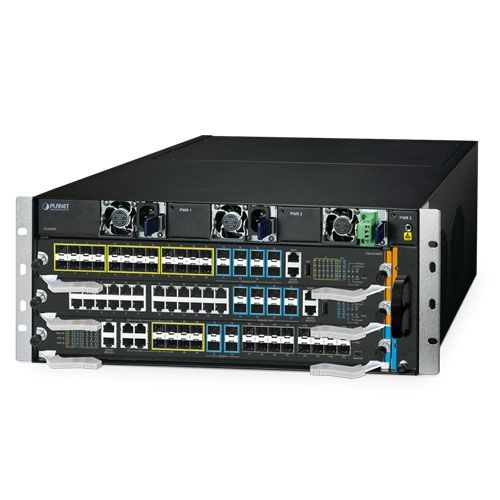

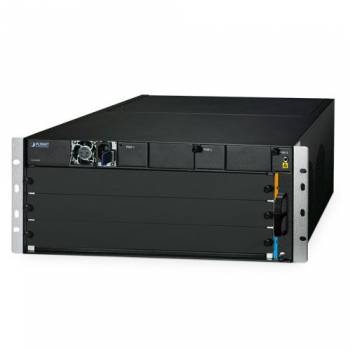

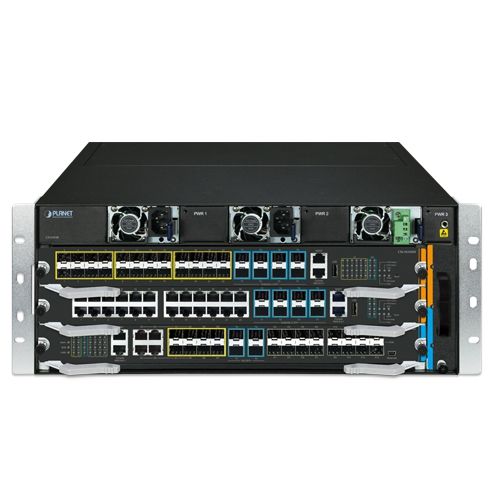

PLANET CS-6303R – Modular Core Layer Chassis Switch with High-Density, High-Availability Architecture
The PLANET CS-6303R is a carrier-class core layer chassis switch engineered for large-scale networking applications such as enterprise backbones, metro Ethernet, campus networks, ISPs, and data centers. With three module slots, redundant AC/DC power support, and hot-swappable components, the CS-6303R provides unmatched flexibility, performance, and uptime.
It supports up to 120 Gigabit ports, 40 10G SFP+ ports, 8 40G QSFP+ ports, or 48 GPON OLT ports – allowing flexible deployment across fiber, copper, and xPON networks.
Hardware:
Management & Security:
QoS & Traffic Control:
The PLANET CS-6303R is a carrier-class core layer chassis switch engineered for large-scale networking applications such as enterprise backbones, metro Ethernet, campus networks, ISPs, and data centers. With three module slots, redundant AC/DC power support, and hot-swappable components, the CS-6303R provides unmatched flexibility, performance, and uptime.
It supports up to 120 Gigabit ports, 40 10G SFP+ ports, 8 40G QSFP+ ports, or 48 GPON OLT ports – allowing flexible deployment across fiber, copper, and xPON networks.
Key Features:
- Up to 1.47Tbps forwarding capacity
- Supports IPv4/IPv6 full L2/L3 routing and switching
- Dual redundant management modules (hot-swappable)
- Hot-swappable power supplies and fan tray
- GPON support with up to 1024 ONUs
- Active-active redundant power input (AC/DC)
- Advanced protocol support: VRRP, MSTP, PIM-SM, BFD, ISSU, and more
Ideal For:
- Core and distribution layers in campus & enterprise networks
- Metro Ethernet aggregation
- Data center switch fabric
- ISP xPON deployments
Key Specifications:
Hardware:
- 3 module slots (2 switch, 2 management shared)
- Up to 3 hot-swappable power supplies (AC/DC)

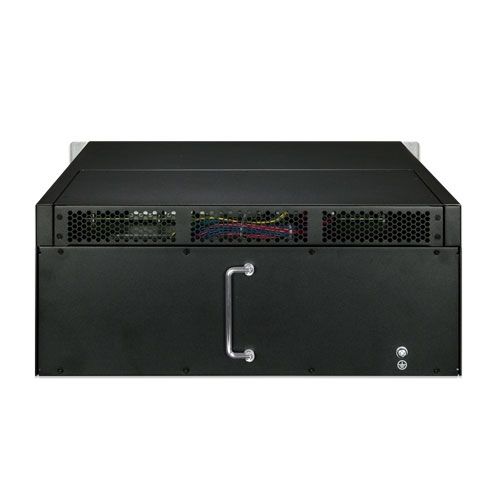

- Modular fan tray with dual axial fans
- Dimensions: 482.6 × 376.2 × 178.2 mm (4U)
- Weight: up to 14.4 kg (fully equipped)
- Power Consumption: <350W
Management & Security:
- Management: Web UI, CLI, Telnet, SSH, SNMP v1/v2c/v3
- VLANs: IEEE 802.1Q, Q-in-Q, GVRP, Private VLAN
- Security: ACLs (IP/MAC/Time), 802.1X, DHCP Snooping, DAI, IP Source Guard
- Dual configuration image, syslog, sFlow, Netflow
Layer 3 Routing:
- IPv4: RIP, OSPF, BGP, static routing, PBR, VRRP
- IPv6: RIPng, OSPFv3, BGP4+, tunnels (ISATAP, 6to4)
- Multicast: PIM-DM, PIM-SM, PIM-SSM, IGMP/MLD Snooping
- Up to 16K IPv4/IPv6 route entries
QoS & Traffic Control:
- 8 priority queues per port
- Scheduling: SP, WRR, SP+WRR
- Traffic classification: DSCP, CoS, VLAN ID, ACL
- Ingress/Egress bandwidth control

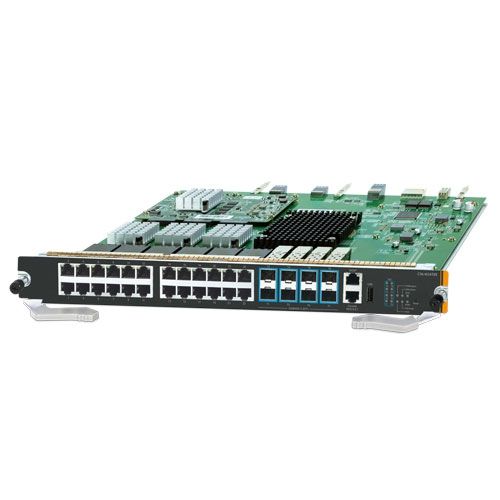

Available Modules:
- CS6-M24S8X / CS6-M24T8X (Management)

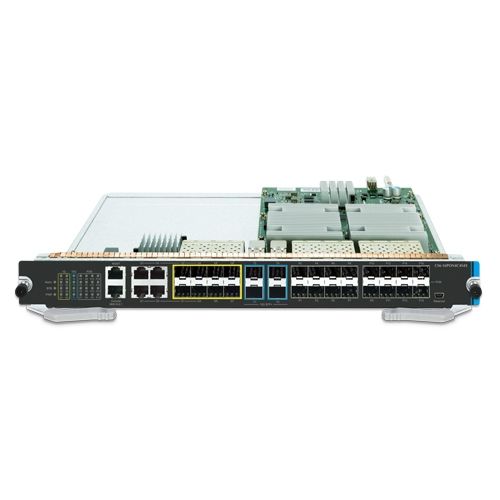

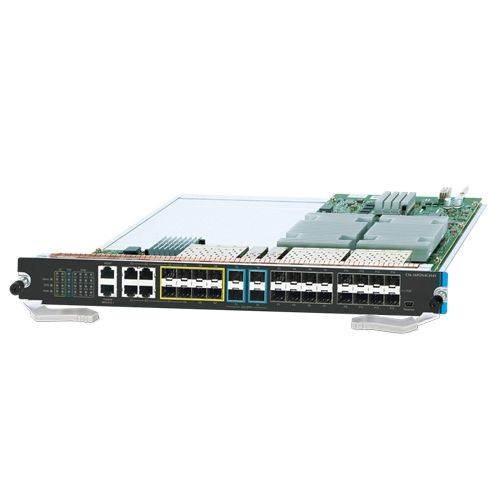

- Switch options: 24/48-port 1G, 10G, 40G, GPON (e.g., CS6-S4Q, CS6-S16X, CS6-16PON4C4S4X)
Questions & answers
What is the delivery time of PLANET CS-6303R Chassis Switch?
The article PLANET CS-6303R Chassis Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet CS-6303R to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET CS-6303R Chassis Switch always at the best possible price. We can give you a discount of 2% on PLANET CS-6303R Chassis Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
