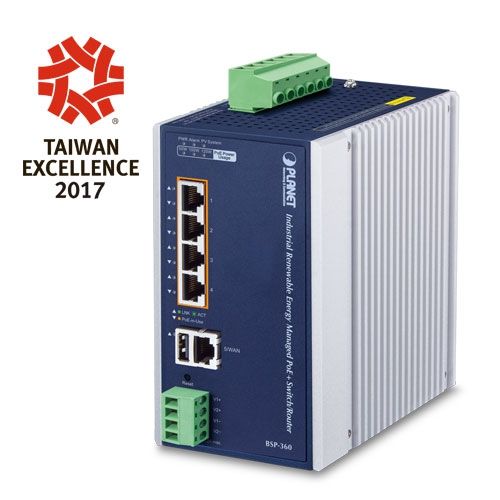

PLANET BSP-360 – Smart Solar-Powered Managed PoE+ Switch with Remote Access and ONVIF Support

The PLANET BSP-360 is an industrial-grade managed PoE+ switch built for renewable energy use in off-grid IP-based deployments such as surveillance, wireless APs, and environmental monitoring. With support for solar, wind, and hydroelectric sources, it delivers sustainability and functionality in one rugged solution. Four PoE+ ports provide up to 36W each (120W total), while additional DC output and advanced management make the BSP-360 ideal for isolated or mobile installations.

Powered by Nature, Engineered for Control

An integrated MPPT controller maximizes energy conversion from PV input (up to 400W). The BSP-360 supports 24V lithium or lead-acid batteries and features full PoE port control, priority, and scheduling. Low voltage cut-off ensures system protection, with alert and automatic shut-off at battery depletion.

Smart PoE and Battery Monitoring

The BSP-360 tracks per-port PoE usage, current draw, and environmental data (temperature and humidity). The built-in web interface and SNMP support offer full management visibility and configuration options. PD Alive Check and scheduled power cycling ensure maximum uptime for connected IP cameras and APs.

Centralized Device Management with PLANET NMS-360

Administrators can monitor and manage up to 512 BSP-360 units and over 2,000 PLANET IP cameras via MQTT and ONVIF. The system supports IP camera discovery and in-network snapshot capabilities.

Technical Specifications:

Ports:

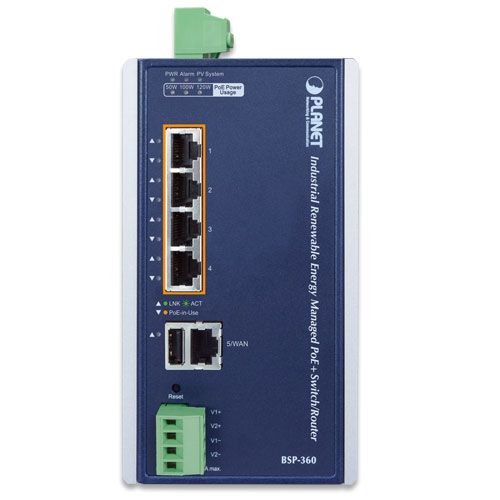

• 5 x 10/100/1000BASE-T RJ45 (4 x PoE+ IEEE 802.3at/af)
• 1 x USB Type A for config backup
• 2 x 24V DC output (max. 2A)

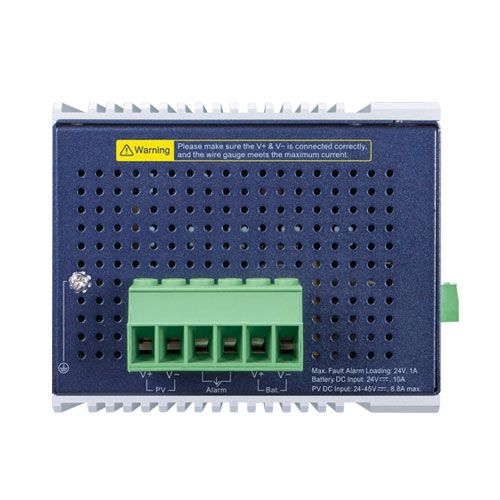

• Removable 6-pin terminal block (PV input, battery, alarm)

PoE:

• 802.3af/at compliant, 36W max per port
• PoE Budget: 120W
• Management: PD Alive Check, scheduling, usage monitoring, power prioritization

Power Input:

• PV: 24–45V DC, max 400W (8.8A)
• Battery: 24V lithium or lead-acid
• MPPT charging with overcurrent, reverse polarity, and temperature protection

Switching:

• Switch Fabric: 10Gbps
• Throughput: 5.95Mpps
• MAC Table: 8K
• Store-and-Forward architecture

Routing & Security:

• WAN (Port 5): PPPoE, Static IP, DHCP, L2TP, PPTP
• Dynamic & static routing (RIP v1/v2)
• IGMP Proxy, STP (802.1D)
• NAT firewall, MAC/IP/Port filtering, DoS prevention

Construction & Environment:

• IP30-rated aluminum housing
• DIN-rail & wall-mount
• Operating Temp: -10 to +60 °C
• Dimensions: 86.8 x 107.3 x 152 mm
• Weight: 1.251kg
• ESD protection: 6KV DC

Indicators & Management:

• LEDs: Power, PV system, Alarm, PoE usage (50/100/120W), Link/PoE for Ports 1–4
• Management: Web UI, SNMP v1/v2c, Syslog, NMS-360
• Alerts: Digital output, 24V DC

ONVIF Features:

• Discovery of PLANET ONVIF IP cameras
• Snapshot support for up to 4 cameras per unit

Standards Compliance:

• IEEE 802.3/802.3u/802.3ab/802.3af/802.3at/802.3x
• CE, FCC Part 15 Class A
