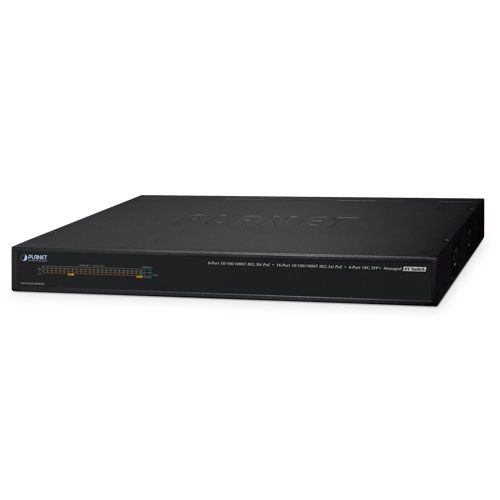

PLANET AVS-4210-24HP4X
24-Port PoE Managed AV Switch content_copy

PLANET AVS-4210-24HP4X – Professional AV Switch with 24 PoE Ports and 10G Uplink

The PLANET AVS-4210-24HP4X is a Layer 2/4 Gigabit PoE+/PoE++ Ethernet switch built specifically for the Professional AV industry. It features 24 10/100/1000BASE-T RJ45 ports and 4 10G SFP+ uplinks, delivering high performance for AV-over-IP streaming, surveillance, audio distribution, and digital signage. Ports 1–8 support IEEE 802.3bt PoE++ up to 95W per port, while ports 9–24 deliver 802.3at PoE+ up to 32W – all powered by a robust 450-watt PoE budget.

AV-Centric Design for Professional Installations

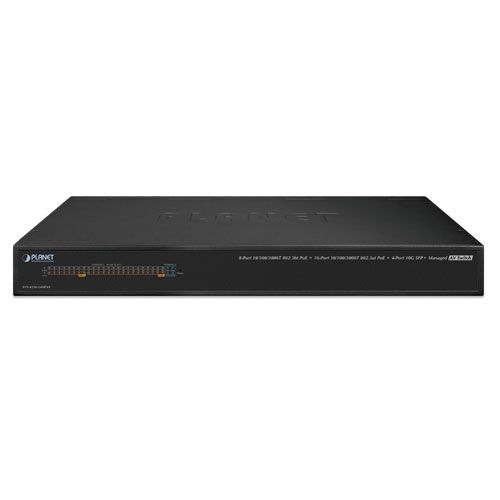

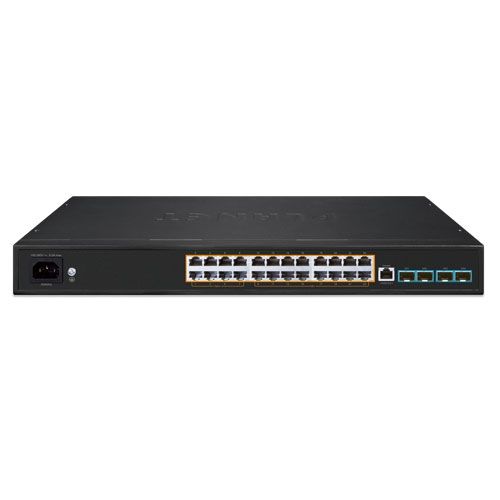

With front-facing LED indicators and rear cable ports, the AVS-4210-24HP4X improves cable organization and aesthetic consistency within AV racks. Its fanless operation ensures silent performance – a key benefit for studios, control rooms, and meeting spaces.

Intuitive AV-over-IP Interface with Pre-loaded Profiles

Designed to simplify AV network deployment, this switch features a dual Web UI with a simplified Pro AV interface and standard switch UI. Preloaded support for Dante and NDI, along with IGMP/MLD snooping enabled by default, allows plug-and-play setup without requiring networking expertise.

Advanced Layer 2 Switching and Intelligent PoE Control

The switch supports robust L2 features including VLAN tagging, MSTP, ERPS, Link Aggregation, and Port Mirroring. Advanced PoE management with PD Alive Check allows for automatic reboot of unresponsive devices, ensuring uptime and reducing manual maintenance.

Technical Specifications:

Ports:

• 8 x 10/100/1000BASE-T RJ45 with 95W PoE++ (Ports 1–8)
• 16 x 10/100/1000BASE-T RJ45 with 32W PoE+ (Ports 9–24)
• 4 x 10GBASE-SR/LR SFP+ slots (Ports XG1–XG4)
• 1 x RJ45-to-RS232 console port

PoE:

• PoE Standards: IEEE 802.3bt (Type 3/4), IEEE 802.3at
• PoE Budget: 450W total (200W in fanless mode)
• Intelligent Features: PD Alive Check, PoE scheduling, priority setting, power recycling, extended mode (250m)

Switching:

• Switching Capacity: 128 Gbps
• Throughput: 95.23 Mpps
• MAC Table: 16K entries
• Jumbo Frame: 12K bytes

Layer 2:

• VLAN: IEEE 802.1Q, Q-in-Q, Private VLAN, Management VLAN
• Spanning Tree Protocol: STP, RSTP, MSTP + BPDU Guard
• Link Aggregation: 8 trunk groups with up to 8 ports
• Multicast: IGMP v2/v3, MLD v1/v2 snooping
• ERPS Ring Protocol (<450ms recovery), LLDP

QoS & Traffic Control:

• 8 QoS queues per port
• 802.1p, DSCP, WRR, traffic classification
• Storm control, ingress/egress rate limiting

Security:

• ACLs: IP-based, MAC-based
• DHCP Snooping, IP Source Guard, ARP Inspection
• RADIUS, TACACS+, DoS protection, MAC filtering

Management:

• Pro AV UI: Simplified VLAN & multicast profiles (Dante, NDI)
• Standard UI: CLI, Web, Telnet, SNMPv1/v2c/v3, SSHv2, TLSv1.2
• Remote syslog, SNTP, firmware/config backup
• Diagnostics: SFP-DDM, cable test, ICMP Ping
• Management: PLANET NMS, CloudViewer, Smart Discovery

Dimensions & Power:

• Size: 441.5 x 207.7 x 44 mm
• Weight: 3.443 kg
• Power: AC 100~240V, 50/60Hz
• Max Power Usage: 533W (fully loaded)
• Mounting: 19” rack-mountable
