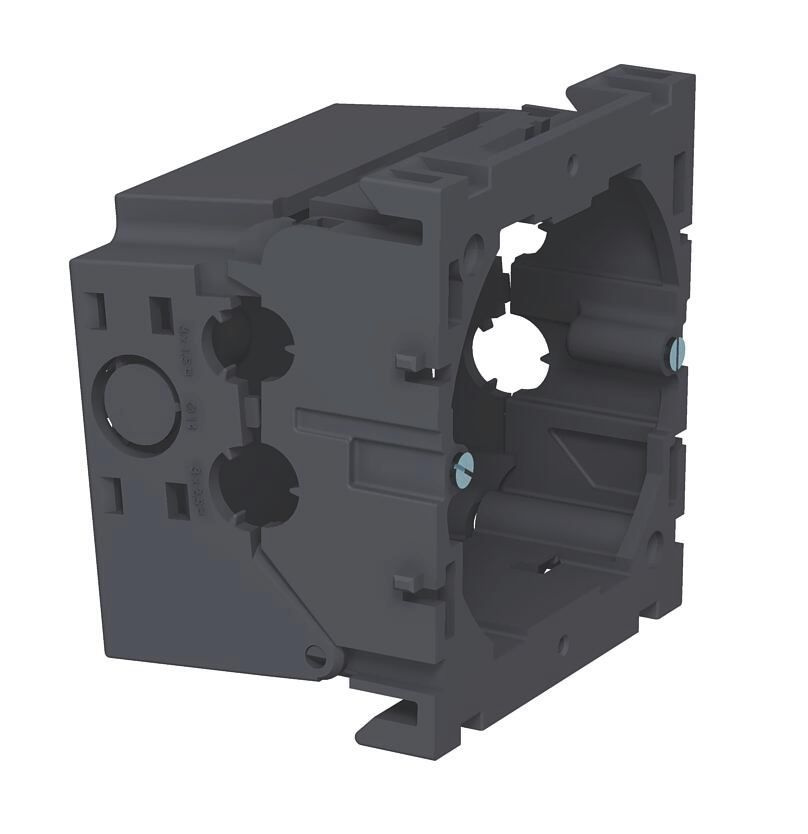

OBO Bettermann 6288610 71GD6 device mounting box 1f 71x76x51 PA iron grey RAL7011 content_copy

The OBO Bettermann device mounting box type 71GD6 is a front-loading mounting box for switch systems, used in electrical installations for securing switches, socket outlets or other electrical components. It is made of polyamide (PA) in iron grey colour (RAL 7011) and offers a halogen-free version, which improves fire behaviour properties and reduces smoke development in case of fire. The box is designed for use in cable ducts and enables clean and structured cabling in indoor environments.

Applications
The device mounting box 71GD6 is used in electrical installations, particularly in systems where switches or socket outlets are mounted in cable ducts. It is suitable for single installations (1-way) and adapts to standard dimensions of cable duct systems. The front-loading construction ensures secure fixation in the duct, preventing displacement or loosening of the box during operation. The box is intended for use in residential and commercial buildings, where orderly and accessible cabling is required.

Functions and Equipment in Detail
A central feature of the 71GD6 is the hinged and, if necessary, removable lower section. This enables time-saving and easy cable connection, as cables can be directly routed into the lower part of the box without having to remove the entire box. The cable entry openings at the bottom and side panels are designed for cable diameters up to 14 mm, supporting a variety of cable types such as NYM cables. This construction simplifies installation and maintenance, especially in complex cabling systems.

Technology Explained Simply
The box is made of polyamide, a thermoplastic material known for its high mechanical strength, heat resistance, and chemical resistance. The halogen-free version meets requirements for improved fire protection class, as it does not release toxic halogen compounds when heated. The flame retardant class corresponds to DIN VDE 0471 Part 2, and the box passes the glow wire test at 750 °C, ensuring high heat resistance and self-extinguishing properties. The dimensions of the box are 71 mm (width) × 76 mm (height) × 51 mm (depth), with the exact construction tailored for mounting in standard cable ducts.

Compatibility and Accessories
The device mounting box 71GD6 is specifically developed for use in cable duct systems from OBO Bettermann, particularly for switch systems. It is compatible with corresponding cable ducts and enables clean integration into existing installations. The box is designed for mounting single components (1-way), making it ideal for standard switches or socket outlets.

Installation and Mounting
Mounting is done by front-loading into the cable duct, where the box is fixed in the duct using the designated mounting elements. The hinged lower section is opened during installation to route the cables, and then closed again. The cable entry openings on the sides and bottom facilitate cable routing. Installation requires no additional tools, as the box is mechanically inserted and fixed into the duct. The halogen-free version and the heat resistance of the material ensure a safe and durable installation.

Advantages in Operation
The 71GD6 offers quick and easy installation thanks to the hinged lower section, reducing installation time. The halogen-free version increases safety in case of fire, as no toxic gases are released. The robust polyamide construction ensures long service life and high mechanical stability. The box is designed for indoor use and adapts to common cable duct systems, enabling uniform and professional installation. The cable entry openings for cables up to 14 mm diameter offer flexibility in selecting the cables to be used.

General
Product type	Device mounting box
Insert	for switch systems
Material	Polyamide
Colour	iron grey
Colour code	RAL 7011
Model	halogen-free
Flame retardancy class	DIN VDE 0471 Part 2
Filament test	750 °C
Number of sections	1-fold
Cable entry openings	for cable diameter up to 14 mm
Lower section	foldable and removable

---
