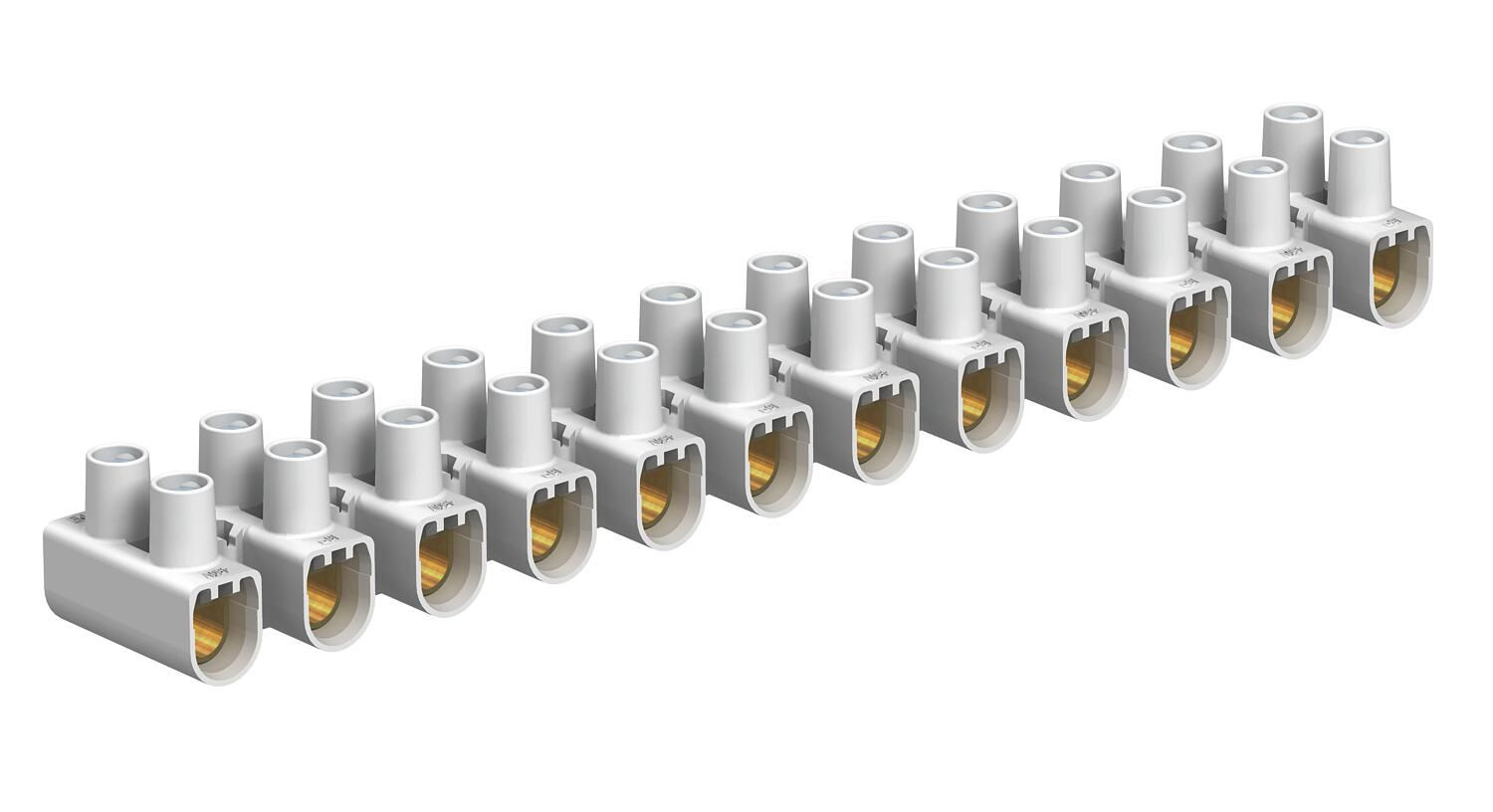

OBO Bettermann 2056550 78 CE WS series luminaire terminal 16.0 mm² PP white
|
60,35 EUR 61,96 EUR |
|||||||||||
|
( 71,82 EUR incl. VAT ) ≈ £50.45 | ≈ $66.69 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| Sales unit: 10 pieces | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 108993 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2056550 | ||||||||||
| UPC/EAN: | 4012195702436 | ||||||||||
| Weight: | 0.75 kg | ||||||||||
| Type: | 78 CE WS | ||||||||||
|
Graduated prices net
|
|||||||||||
Further TEBIS TS from OBO BettermannFurther products in category TEBIS TS
All products of OBO Bettermann
Product information for OBO Bettermann 2056550:
The OBO Bettermann series terminal block type 78 CE WS is an electrical connection component for use in installation systems, particularly in the field of home automation and TEBIS TS technology. The product is designed for secure and durable connection of conductors with a nominal cross-section of up to 16 mm². It is a 12-pole terminal block that can be separated into individual terminals, with separation achieved via the 'twist'n'pull' method. The terminals are made of steel, and the screws are also made of steel and galvanically zinc-plated, ensuring high corrosion resistance. The screws are pre-tightened and thus non-removable, simplifying installation and maintenance.
Applications
The terminal block is designed for use in electrical installations tested according to the standard EN 60998. It is particularly suitable for applications in building automation, where reliable and maintenance-friendly conductor connections are required. The maximum ambient temperature is -5 to +80 °C, enabling use in indoor environments and protected outdoor areas. The terminal block is rated for a nominal voltage of 450 V and a nominal current of 76 A, making it suitable for a wide range of electrical loads.
Functions and Equipment in Detail
The 12-pole construction allows for the parallel connection of multiple conductors within a single component. The separation of individual terminals is achieved via the 'twist'n'pull' method, in which the terminal is twisted and then pulled out. This facilitates adaptation of the terminal block to different connection requirements. The maximum terminal capacity is 16 mm² per side for rigid conductors, 10 mm² for flexible conductors, or 6 mm² for highly flexible conductors. The galvanic zinc plating of the screws ensures high mechanical strength and corrosion protection, extending the product's service life.
Technology Explained Simply
The terminal block is designed for use in electrical circuits where a stable and secure connection is required. The use of steel for the terminals and screws ensures high electrical conductivity and mechanical strength. The galvanic zinc plating protects the metal parts from oxidation and corrosion, especially in humid or aggressive environments. The 'twist'n'pull' function allows flexible adjustment of the number of terminals to match the specific connection configuration, without requiring additional tools or spare parts.
Compatibility and Accessories
The terminal block is intended for use in TEBIS TS technology systems and can be used in conjunction with other products from the OBO Bettermann range, particularly in installation systems for home automation. Compatibility with other components of the same product series is provided, with the exact mounting instructions corresponding to the respective system.
Mounting and Installation
Installation is performed using the 'twist'n'pull' method, where the desired number of individual terminals are separated. The screws are pre-tightened, so they do not get lost during installation. The terminal block is inserted into the respective mounting system, with electrical conductors connected according to the nominal cross-section (up to 16 mm² rigid, 10 mm² flexible, or 6 mm² highly flexible). Installation requires no additional tools, as the screws are pre-tensioned.
Operational Advantages
The terminal block offers high reliability and longevity due to the use of galvanically zinc-plated steel. The non-removable screws reduce the risk of installation errors and simplify maintenance. The flexible separation of individual terminals enables adaptable installation that can be adjusted to different connection configurations. The high nominal voltage of 450 V and nominal current of 76 A make the terminal block suitable for a wide range of applications, particularly in building automation and electrical installation systems.
Protection Rating
The terminal block is not specified as an IP-rated component, as it is intended for use in enclosed switch cabinets or installation systems. The ambient temperature range of -5 to +80 °C is defined according to EN 60998, enabling use in indoor environments and protected outdoor areas. The galvanic zinc plating of the screws provides additional corrosion protection.
Technical Standards
The product is tested according to EN 60998, ensuring the safety and reliability of the electrical connection. The standard sets requirements for electrical conductivity, mechanical strength, and thermal load capacity. Compliance with this standard is essential for safe operation in electrical installations.
Nominal Cross-Section
The maximum nominal cross-section is 16 mm² for rigid conductors, 10 mm² for flexible conductors, or 6 mm² for highly flexible conductors. This allows connection of conductors of different types and cross-sections, with the specific application determining the selection.
Nominal Voltage and Nominal Current
The terminal block is rated for a nominal voltage of 450 V and a nominal current of 76 A. These values are critical for selecting the terminal block based on the electrical load and voltage of the system. Adherence to these values ensures safe and reliable operation.
Materials
The terminals are made of steel, and the screws are also made of steel and galvanically zinc-plated. The zinc plating protects the metal parts from corrosion and increases the product's service life. The material selection ensures high electrical conductivity and mechanical strength.
Separability
The 12-pole terminal block is separable into individual terminals, with separation achieved via the 'twist'n'pull' method. This enables flexible adaptation to different connection requirements, without requiring additional tools or spare parts.
Ambient Temperature
The maximum ambient temperature is -5 to +80 °C, enabling use in indoor environments and protected outdoor areas. The temperature limits are defined according to EN 60998 and ensure the terminal block's functionality under various operating conditions.
Application Areas
The terminal block is particularly intended for use in home automation systems and TEBIS TS installations. It is suitable for electrical installations where a secure and maintenance-friendly connection of conductors is required. Use in enclosed switch cabinets or installation systems is intended, with environmental conditions remaining within the specified temperature limits.
The item price shown refers to 10 pieces OBO Bettermann 2056550
Applications
The terminal block is designed for use in electrical installations tested according to the standard EN 60998. It is particularly suitable for applications in building automation, where reliable and maintenance-friendly conductor connections are required. The maximum ambient temperature is -5 to +80 °C, enabling use in indoor environments and protected outdoor areas. The terminal block is rated for a nominal voltage of 450 V and a nominal current of 76 A, making it suitable for a wide range of electrical loads.
Functions and Equipment in Detail
The 12-pole construction allows for the parallel connection of multiple conductors within a single component. The separation of individual terminals is achieved via the 'twist'n'pull' method, in which the terminal is twisted and then pulled out. This facilitates adaptation of the terminal block to different connection requirements. The maximum terminal capacity is 16 mm² per side for rigid conductors, 10 mm² for flexible conductors, or 6 mm² for highly flexible conductors. The galvanic zinc plating of the screws ensures high mechanical strength and corrosion protection, extending the product's service life.
Technology Explained Simply
The terminal block is designed for use in electrical circuits where a stable and secure connection is required. The use of steel for the terminals and screws ensures high electrical conductivity and mechanical strength. The galvanic zinc plating protects the metal parts from oxidation and corrosion, especially in humid or aggressive environments. The 'twist'n'pull' function allows flexible adjustment of the number of terminals to match the specific connection configuration, without requiring additional tools or spare parts.
Compatibility and Accessories
The terminal block is intended for use in TEBIS TS technology systems and can be used in conjunction with other products from the OBO Bettermann range, particularly in installation systems for home automation. Compatibility with other components of the same product series is provided, with the exact mounting instructions corresponding to the respective system.
Mounting and Installation
Installation is performed using the 'twist'n'pull' method, where the desired number of individual terminals are separated. The screws are pre-tightened, so they do not get lost during installation. The terminal block is inserted into the respective mounting system, with electrical conductors connected according to the nominal cross-section (up to 16 mm² rigid, 10 mm² flexible, or 6 mm² highly flexible). Installation requires no additional tools, as the screws are pre-tensioned.
Operational Advantages
The terminal block offers high reliability and longevity due to the use of galvanically zinc-plated steel. The non-removable screws reduce the risk of installation errors and simplify maintenance. The flexible separation of individual terminals enables adaptable installation that can be adjusted to different connection configurations. The high nominal voltage of 450 V and nominal current of 76 A make the terminal block suitable for a wide range of applications, particularly in building automation and electrical installation systems.
Protection Rating
The terminal block is not specified as an IP-rated component, as it is intended for use in enclosed switch cabinets or installation systems. The ambient temperature range of -5 to +80 °C is defined according to EN 60998, enabling use in indoor environments and protected outdoor areas. The galvanic zinc plating of the screws provides additional corrosion protection.
Technical Standards
The product is tested according to EN 60998, ensuring the safety and reliability of the electrical connection. The standard sets requirements for electrical conductivity, mechanical strength, and thermal load capacity. Compliance with this standard is essential for safe operation in electrical installations.
Nominal Cross-Section
The maximum nominal cross-section is 16 mm² for rigid conductors, 10 mm² for flexible conductors, or 6 mm² for highly flexible conductors. This allows connection of conductors of different types and cross-sections, with the specific application determining the selection.
Nominal Voltage and Nominal Current
The terminal block is rated for a nominal voltage of 450 V and a nominal current of 76 A. These values are critical for selecting the terminal block based on the electrical load and voltage of the system. Adherence to these values ensures safe and reliable operation.
Materials
The terminals are made of steel, and the screws are also made of steel and galvanically zinc-plated. The zinc plating protects the metal parts from corrosion and increases the product's service life. The material selection ensures high electrical conductivity and mechanical strength.
Separability
The 12-pole terminal block is separable into individual terminals, with separation achieved via the 'twist'n'pull' method. This enables flexible adaptation to different connection requirements, without requiring additional tools or spare parts.
Ambient Temperature
The maximum ambient temperature is -5 to +80 °C, enabling use in indoor environments and protected outdoor areas. The temperature limits are defined according to EN 60998 and ensure the terminal block's functionality under various operating conditions.
Application Areas
The terminal block is particularly intended for use in home automation systems and TEBIS TS installations. It is suitable for electrical installations where a secure and maintenance-friendly connection of conductors is required. Use in enclosed switch cabinets or installation systems is intended, with environmental conditions remaining within the specified temperature limits.
The item price shown refers to 10 pieces OBO Bettermann 2056550
| General | |
| Operating voltage | 450 V |
| Nominal current | 76 A |
| Nominal cross section | 16 mm² |
| Max. terminable per side | 16 mm² solid or 10 mm² flexible or 6 mm² flexible |
| Ambient temperature | -5 to +80 °C |
| Terminal material | Steel |
| Screw material | Galvanized steel |
| Removability | in individual terminals via 'twist'n'pull' |
| Test standard | EN 60998 |
| Number of poles | 12 |
| Screw anchoring | raised, non-removable |
Questions & answers
What is the delivery time of OBO Bettermann 2056550 78 CE WS series luminaire terminal 16.0 mm² PP white ?
The article OBO Bettermann 2056550 78 CE WS series luminaire terminal 16.0 mm² PP white is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of OBO Bettermann 2056550 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you OBO Bettermann 2056550 78 CE WS series luminaire terminal 16.0 mm² PP white always at the best possible price. We can give you a discount of 2% on OBO Bettermann 2056550 78 CE WS series luminaire terminal 16.0 mm² PP white if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of OBO Bettermann 2056550 78 CE WS series luminaire terminal 16.0 mm² PP white we can offer you a price of 58,99 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
OBO Bettermann 2056550 78 CE WS series luminaire terminal 16.0 mm² PP white is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
