OBO Bettermann 2000024 A 8 5 cable branch box 75x75x36 PE with terminal strip light grey RAL7035

Your rating:
Average rating
product review for OBO Bettermann 2000024 A 8 5 cable branch box 75x75x36 PE with terminal strip light grey RAL7035
( 4.6 / 5 ) 45 ratings
OBO Bettermann 2000024
This image may differ from the desired article.
OBO Bettermann 2000024OBO Bettermann 2000024
23,56 EUR
( 28,04 EUR incl. VAT )
≈ £19.72  |  ≈ $25.89
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Sales unit: 10 pieces
In Stock: >50 pieces
1x OBO Bettermann 2000024 A 8 5 cable branch box 75x75x36 PE with terminal strip light grey RAL7035
Lieske Part No.:121127
Mfg Part No: 2000024
UPC/EAN: 4012195151456
Weight:0.123 kg
Type:A 8 5

Product information for OBO Bettermann 2000024:

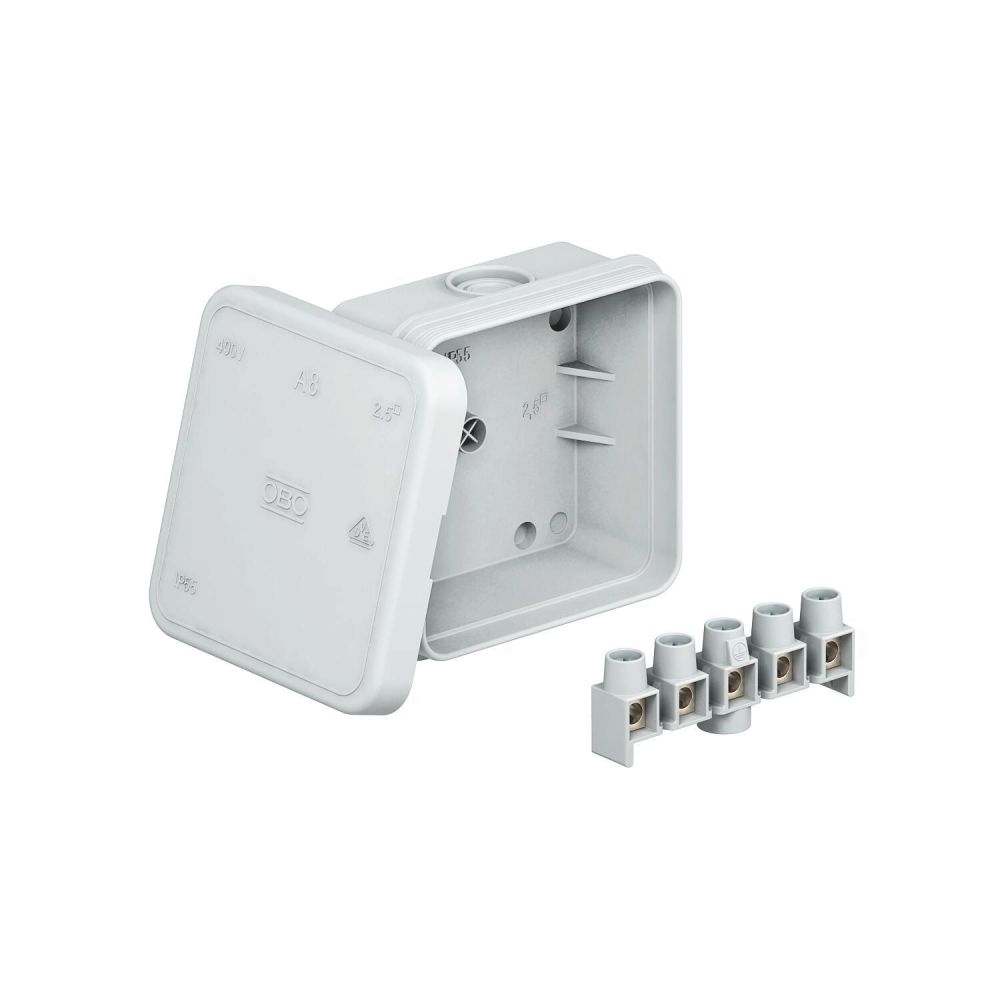

The OBO Bettermann cable junction box type A 8 5 is a surface-mounted box made of polyethylene (PE) in light grey colour (RAL 7035), designed for use in outdoor areas or damp indoor environments. It serves as a branching point for electrical wiring and enables the secure connection of multiple cables within a protected housing. The box features a protection rating of IP55, meaning it is dust-tight and protected against water jets from any direction – a property that makes it suitable for use in damp or wet environments. The rated voltage is 690 V, and the rated cross-section of the connected conductors must not exceed 2.5 mm². The box is equipped with a terminal cover that allows for secure and accessible cable connections.

Applications

The cable junction box A 8 5 is suitable for installations in outdoor areas, such as terraces, garages, or on buildings, where high moisture resistance is required. It can also be used in indoor areas with increased humidity, such as bathrooms or kitchens, provided that electrical regulations and applicable standards permit it. The IP55 protection rating ensures reliable protection against dust and water, extending the lifespan of the installation and enhancing safety.

Functions and Equipment in Detail

The box features seven cable entries designed for cables with a diameter between 5 mm and 14 mm. These entries allow for flexible cable arrangement and simplify installation. The terminal cover ensures secure fastening of the conductors and prevents connections from loosening. The internal clear dimensions are 65 mm × 65 mm × 32 mm, providing sufficient space for routing and connecting multiple cables. The overall dimensions of the box are 75 mm × 75 mm × 36.2 mm, allowing it to integrate well into standardised installation systems.

Technology Explained Simply

The IP55 protection rating is crucial for use in damp or wet environments. IP stands for Ingress Protection, where the first digit (5) indicates protection against dust (dust-tight) and the second digit (5) indicates protection against water jets from any direction. The rated voltage of 690 V is sufficient for industrial and commercial applications, while the rated cross-section of 2.5 mm² specifies the maximum conductor size that can be safely handled. The material polyethylene (PE) is resistant to weather influences and chemical substances, enhancing the durability of the box.

Compatibility and Accessories

The cable junction box A 8 5 is equipped with a terminal cover designed for connecting up to four conductors per terminal point. The box is suitable for cables with a diameter of 5 to 14 mm, covering a wide range of cable types. The use of PE as the material ensures high mechanical stability and weather resistance. The box is available in light grey (RAL 7035), allowing for discreet integration into many environments.

Installation and Mounting

Mounting is done using the surface-mounted method, where the box is directly attached to a wall or other surface. The seven cable entries allow for flexible cable arrangement, with cable diameters ranging from 5 mm to 14 mm. The cutting tool, supplied in quantities of ten boxes, facilitates adaptation of the entries to the respective cable diameters.

Operational Advantages

The IP55 protection rating ensures high reliability in damp environments and protects electrical connections from damage caused by moisture. The robust construction from PE guarantees a long service life and resistance to external influences. The integrated terminal strip enables secure and quick cable connections, reducing installation time. The internal clear dimensions provide sufficient space for routing and connecting multiple conductors, increasing flexibility during installation.

The item price shown refers to 10 pieces OBO Bettermann 2000024
General
Degree of protectionIP55
Nominal voltage690 V
Nominal cross section2,5 mm²
Number of entries7
Cable diameter5-14 mm
MaterialPolyethylene (PE)
ColourLight grey
Colour codeRAL 7035
Clear internal dimensions65 x 65 x 32 mm
AccessoriesTerminal cover


Questions & answers

What is the delivery time of OBO Bettermann 2000024 A 8 5 cable branch box 75x75x36 PE with terminal strip light grey RAL7035 ?

The article OBO Bettermann 2000024 A 8 5 cable branch box 75x75x36 PE with terminal strip light grey RAL7035 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of OBO Bettermann 2000024 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you OBO Bettermann 2000024 A 8 5 cable branch box 75x75x36 PE with terminal strip light grey RAL7035 always at the best possible price. We can give you a discount of 2% on OBO Bettermann 2000024 A 8 5 cable branch box 75x75x36 PE with terminal strip light grey RAL7035 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

OBO Bettermann 2000024 A 8 5 cable branch box 75x75x36 PE with terminal strip light grey RAL7035 is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
