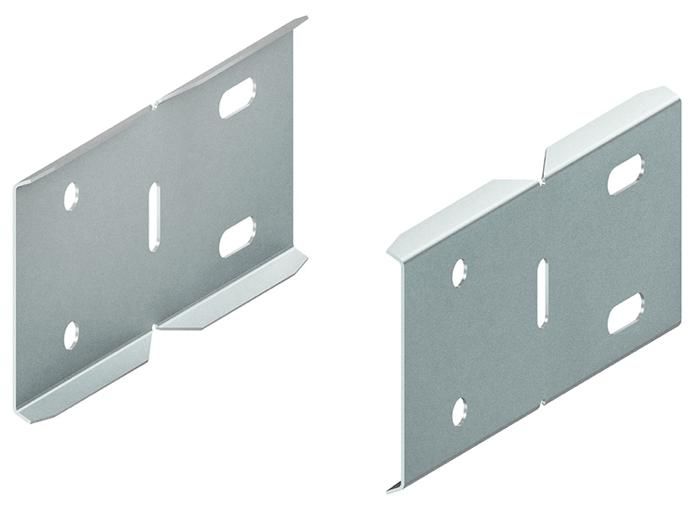

Niedax ULIH150E4 joint connector stainless steel 1.4404 content_copy

Joint connector, horizontal, screwless, for horizontal changes in direction and a longitudinally aligned connection of the cable ladders and their fittings at the joint. When assembling the cable ladders, an assembly distance of approx. 30 mm must be taken into account. It must also be ensured that the elongated holes in the connectors are arranged on the side of the joint on which the boom is located. The ULP 100 assembly pliers are used as an assembly aid. The connector holes enable permanent fastening and ensure that the material can expand. To ensure correct assembly, 4 FKM 6X20 E4 screws must be attached per connector under high loads. Can be used for: GRP cable ladder UL 150... GRP cable ladder ULL 150... and their fittings Required: 1 pair (2 pieces) per joint Dimensions (approx. dimensions) H x L: 138 x 150 mm Material thickness t: 1.5 mm Fixing holes, two rows: Ø 8 mm and 8x20 mm Center distance: 45 mm Row spacing: 80 mm Material: Stainless steel, material no. 1.4404, AISI 316L
