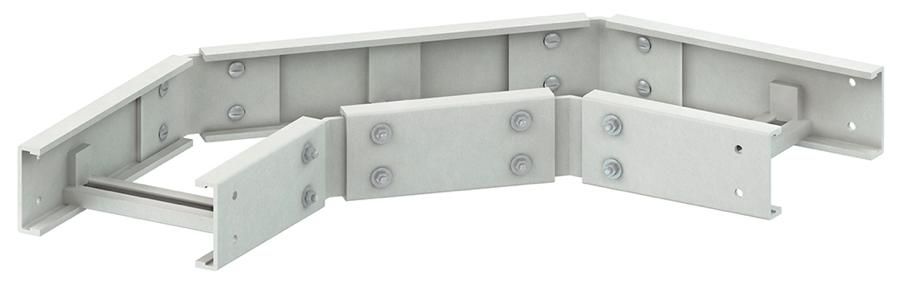

Niedax ULB 150.400 GRP arch 90° 150x400mm, with unperforated rungs content_copy

GRP bend 90°, pultruded, with unperforated side rails, but with connector holes and with unperforated rungs made of C-profile that are open at the top with a slot width of approx. 17 mm, for creating horizontal 90° corner connections, please order appropriate fastening accessories separately, halogen-free. The following must be observed during assembly: - When connecting the fitting, an assembly distance of approx. 30 mm must be taken into account. - The fitting must be supported with brackets at each cable ladder access. - If the radius > 250 mm and/or the width > 400 mm, an additional central support should be provided. - To ensure correct assembly, the connectors at each cable ladder access must be screwed with 4 FKM 6X20 E4. GRP bend 90° with connecting straps (1) made of stainless steel on request. The joint connectors ULGH 150/150 and ULIH 150 E4 are not included in the scope of delivery (please order separately). Use for: GRP cable ladder UL 150... GRP cable ladder ULL 150... Dimensions (approx. dimensions) H x W: 150 x 400 mm External dimensions: 345 mm + W Radius R: 250 mm Material: UP-GF (glass fiber reinforced polyester) Screw material: stainless steel, material no. 1.4404, AISI 316L Color: pebble gray RAL: 7032 (similar)
