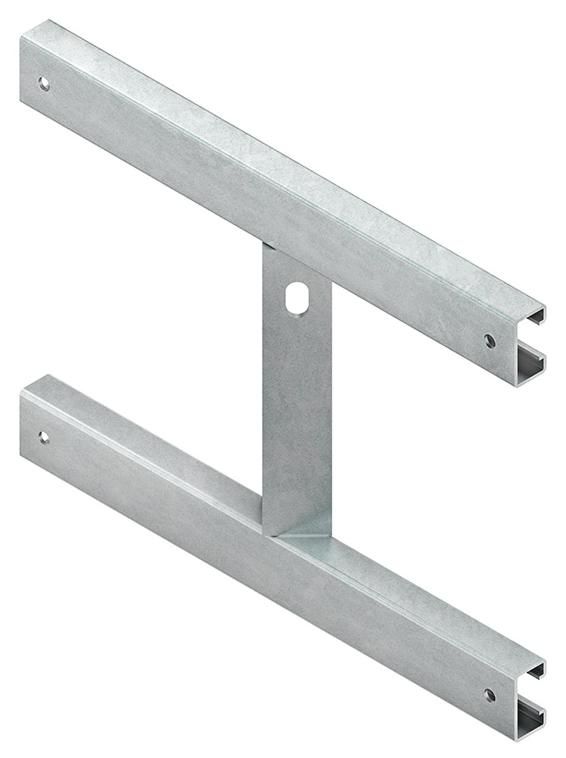

Niedax KWAT300 terminal adapter,

Clamp adapter for 45° boom arrangement on T-beams with a flange width = 300 mm, including fastening accessories for mounting the boom on the clamp adapter, please order required clamp accessories on T-beams, such as 4 x HK 610/... and 4 x HSK... separately. In general, the booms must be attached to the adapter first! For the 45° adapters, the length of the booms required depends on the local conditions and the fittings to be used. The clamp fastening should be symmetrical and the screws should be attached as close to the flange as possible. The load-bearing capacity specifications of the booms used apply. For the clamp adapters, these load-bearing capacity specifications only apply if the surfaces of the T-supports and the profile clamps in the clamping area are made of steel or galvanized steel. If the subsurface of a clamp connection has a coat of paint, this must be removed, otherwise the load-bearing capacity is not given or guaranteed. Danger of slipping! If steel supports are coated with fire protection paint, this may not be removed without consultation and written approval from the client or construction management. In any case, the introduction of loads into the structure must be coordinated with the construction planning or construction management. for hanging support and wall brackets: KTCL..., KTC... for hanging support and wall brackets: KTAC..., KTAL..., KTAM..., KTA = 600 mm (F version), KTA...E3/E5 Dimensions (approx. dimensions) H x W: 296 x 400 mm Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461 Flange thickness of the support in mm: [customer information required]
Type: KWAT 300
