Niedax KKL80.600 KKL 80,600 FRP cable tray,

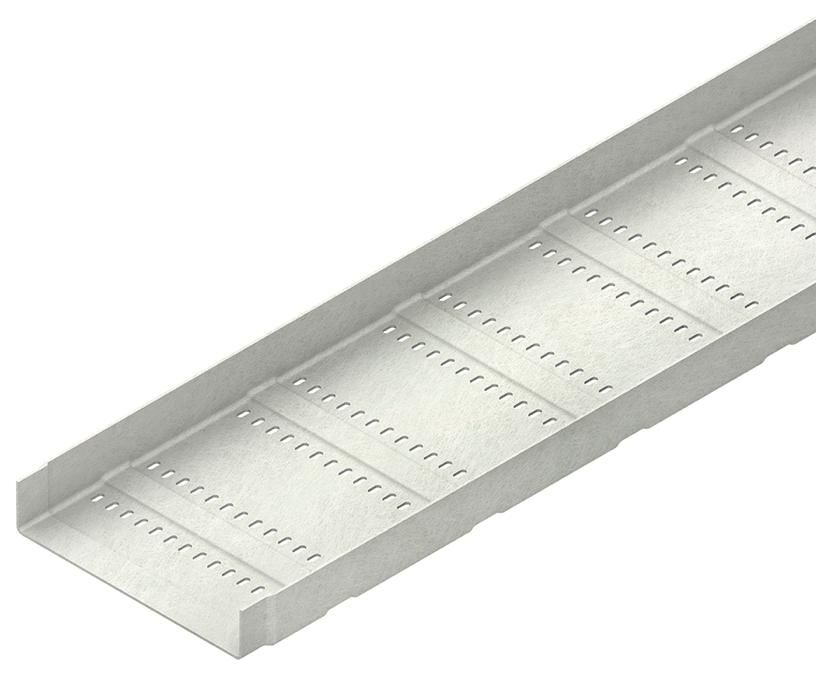

This image may differ from the desired article.

421,44 EUR

( 501,51 EUR incl. VAT )

plus delivery charges

Delivery time on request

Sales unit: 3 meters

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

193096

Mfg Part No:

KKL80.600

UPC/EAN:

4013339952335

Weight:

0 kg

Graduated prices net

From pieces	Price per meters
4	402,48 EUR
8	383,51 EUR
12	364,55 EUR
16	345,58 EUR

Further Cable support systems, cable trays and accessories from Niedax Further products in category Cable support systems, cable trays and accessories All products of Niedax

Product information for Niedax KKL80.600:

GRP cable tray, pressed, with unperforated side rails, with molded connector, with transverse reinforcements (5 mm) over the entire cable tray width and twenty-three rows of fastening holes in the base, mechanical strength in accordance with IEC 61537, please order corresponding fastening accessories separately, halogen-free. Due to the transverse reinforcements, the cable tray is also approved for use with high-frequency cables in accordance with UTE C15-900 (application class D, frequency 16 MHz). An expansion distance of 8 mm must be taken into account. Due to the expansion of the material, the following must be observed during assembly: - The cable tray should not be screwed close to or at the joint. - When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray. Article also available in ...AC (resin mixture with acrylic resin). Dimensions (approx. dimensions) H x W : 80 x 600 mm Material thickness t : 4 mm Bottom bead shape : 60 x 5 mm Bottom bead shape Grid dimension : 313 mm Bottom perforation : 9 x 20 mm Row spacing : 25 mm Bottom hole spacing Grid dimension : 313 mm Load capacity F at a support spacing of 1.5 m : 1 kN/m Delivery length : 3000 mm Usable cross-section : 42120 mm² Material : UP-GF (glass fiber reinforced polyester) Color : pebble gray RAL : 7032 (similar)
Type: KKL 80.600

The item price shown refers to 3 meters Niedax KKL80.600

Please note...

This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.

Questions & answers

What is the delivery time of Niedax KKL80.600 KKL 80,600 FRP cable tray,?

The article Niedax KKL80.600 KKL 80,600 FRP cable tray, is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Niedax KKL80.600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Niedax KKL80.600 KKL 80,600 FRP cable tray, always at the best possible price. We can give you a discount of 2% on Niedax KKL80.600 KKL 80,600 FRP cable tray, if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 meters of Niedax KKL80.600 KKL 80,600 FRP cable tray, we can offer you a price of 402,48 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Niedax KKL80.600 KKL 80,600 FRP cable tray, via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Niedax KKL80.600 KKL 80,600 FRP cable tray, is offered by us in a sales unit of 3 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
