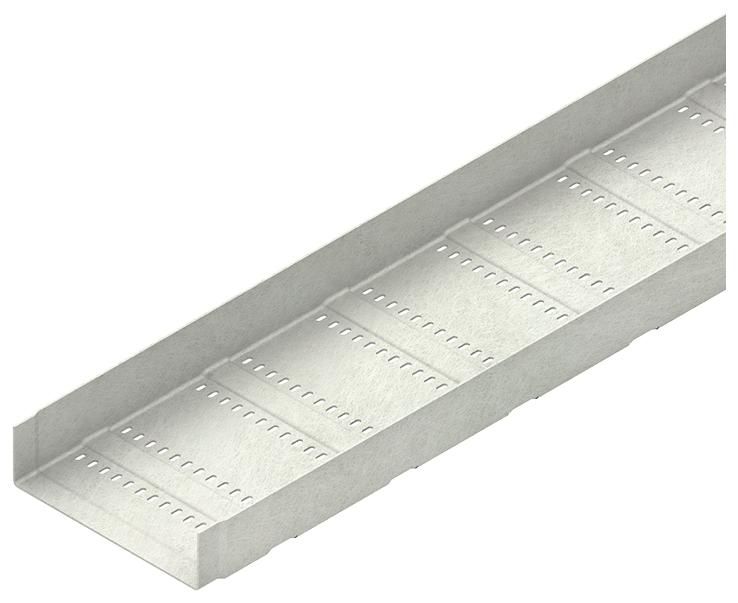

Niedax KKL 110.400 GRP cable tray 110x 400x3000mm, molded composite gel pressed, GY

This image may differ from the desired article.

-67% 102,47 EUR 307,40 EUR

( 121,94 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

1330109

Mfg Part No:

KKL110.400

UPC/EAN:

4013339952373

Weight:

0.12 kg

Graduated prices net

From pieces	Price per meters
5	97,86 EUR
10	93,25 EUR
15	88,64 EUR
20	84,03 EUR

Further Cable support systems, cable trays and accessories from Niedax Further products in category Cable support systems, cable trays and accessories All products of Niedax

Product information for Niedax KKL110.400:

GRP cable tray, pressed, with unperforated side rails and molded connector, with transverse reinforcements (5 mm) over the entire width of the cable tray and fifteen rows of fastening holes in the base, mechanical strength in accordance with IEC 61537, please order corresponding fastening accessories separately, halogen-free. Due to the transverse reinforcements, the cable tray is also approved for use with high-frequency cables in accordance with UTE C15-900 (application class D, frequency 16 MHz). An expansion distance of 8 mm must be taken into account. Due to the expansion of the material, the following must be observed during assembly: - The cable tray should not be screwed close to or at the joint. - When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray. Article also available in ...AC (resin mixture with acrylic resin). Dimensions (approx. dimensions) H x W : 110 x 400 mm Material thickness t : 4 mm Bottom bead shape : 60 x 5 mm Bottom bead shape Grid dimension : 250 mm Bottom perforation : 9 x 20 mm Row spacing : 25 mm Bottom hole spacing Grid dimension : 250 mm Load capacity F at a support spacing of 1.5 m : 1.2 kN/m Delivery length : 3000 mm Usable cross-section : 38556 mm² Material : UP-GF (glass fiber reinforced polyester) Color : pebble gray RAL : 7032 (similar)
Type: KKL 110.400

Please note...

This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.

Questions & answers

What is the delivery time of Niedax KKL 110.400 GRP cable tray 110x 400x3000mm, molded composite gel pressed, GY?

The article Niedax KKL 110.400 GRP cable tray 110x 400x3000mm, molded composite gel pressed, GY is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Niedax KKL110.400 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Niedax KKL 110.400 GRP cable tray 110x 400x3000mm, molded composite gel pressed, GY always at the best possible price. We can give you a discount of 2% on Niedax KKL 110.400 GRP cable tray 110x 400x3000mm, molded composite gel pressed, GY if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 meters of Niedax KKL 110.400 GRP cable tray 110x 400x3000mm, molded composite gel pressed, GY we can offer you a price of 97,86 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Niedax KKL 110.400 GRP cable tray 110x 400x3000mm, molded composite gel pressed, GY via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

1x	Niedax KKL 110.400 (KKL110.400) Niedax KKL 110.400 GRP cable tray 110x 400x3000mm, molded composite gel pressed, GY	102,47 EUR
