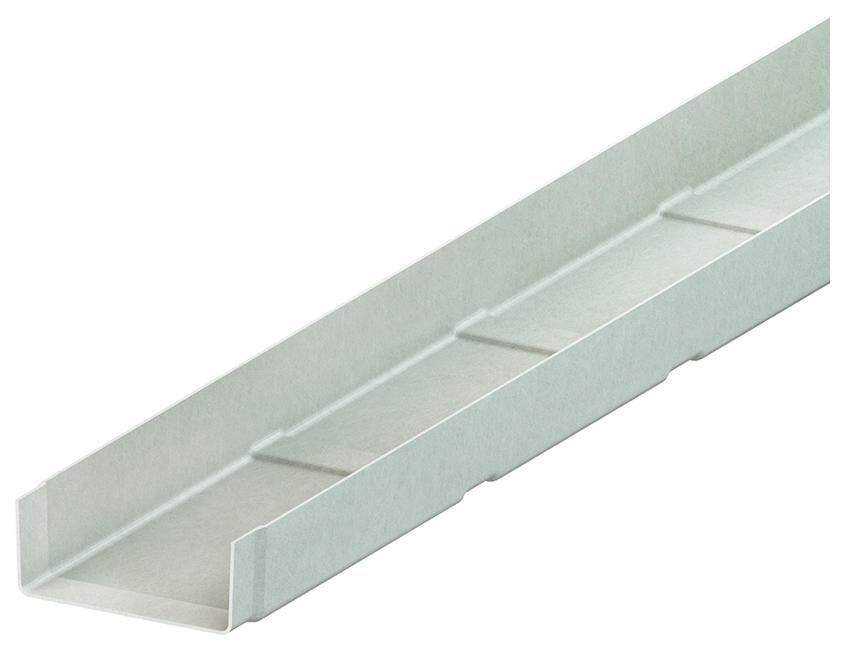

Niedax KK80.150 KK 80,150 GRP cable tray, KK 80,150

This image may differ from the desired article.

131,87 EUR

( 156,93 EUR incl. VAT )

plus delivery charges

Delivery time on request

Sales unit: 3 meters

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

323400

Mfg Part No:

KK80.150

UPC/EAN:

4013339952076

Weight:

0.12 kg

Graduated prices net

From pieces	Price per meters
10	125,94 EUR
25	120,00 EUR
50	114,07 EUR
75	108,13 EUR

Further Cable support systems, cable trays and accessories from Niedax Further products in category Cable support systems, cable trays and accessories All products of Niedax

Product information for Niedax KK80.150:

GRP cable tray, pressed, with unperforated side rails and base, with molded connector and with transverse reinforcements (5 mm) over the entire cable tray width in the base, mechanical strength according to IEC 61537, please order appropriate fastening accessories separately, halogen-free. Due to the transverse reinforcements, the cable tray is also approved for use with high-frequency cables in accordance with UTE C15-900 (application class D, frequency 16 MHz). An expansion distance of 8 mm must be taken into account. Due to the expansion of the material, the following must be observed during assembly: - The cable tray should not be screwed close to or at the joint. - When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray. Article also available in ...AC (resin mixture with acrylic resin). Dimensions (approx. dimensions) H x W : 80 x 150 mm Material thickness t : 3 mm Bottom bead shape : 60 x 5 mm Bottom bead shape Grid dimension : 313 mm Load capacity F at a support distance of 1.5 m : 0.5 kN/m Delivery length : 3000 mm Usable cross-section : 9576 mm² Material : UP-GF (glass fiber reinforced polyester) Color : pebble gray RAL : 7032 (similar)
Type: KK 80.150

The item price shown refers to 3 meters Niedax KK80.150

Please note...

This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.

Questions & answers

What is the delivery time of Niedax KK80.150 KK 80,150 GRP cable tray, KK 80,150?

The article Niedax KK80.150 KK 80,150 GRP cable tray, KK 80,150 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Niedax KK80.150 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Niedax KK80.150 KK 80,150 GRP cable tray, KK 80,150 always at the best possible price. We can give you a discount of 2% on Niedax KK80.150 KK 80,150 GRP cable tray, KK 80,150 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 meters of Niedax KK80.150 KK 80,150 GRP cable tray, KK 80,150 we can offer you a price of 125,94 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Niedax KK80.150 KK 80,150 GRP cable tray, KK 80,150 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Niedax KK80.150 KK 80,150 GRP cable tray, KK 80,150 is offered by us in a sales unit of 3 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
