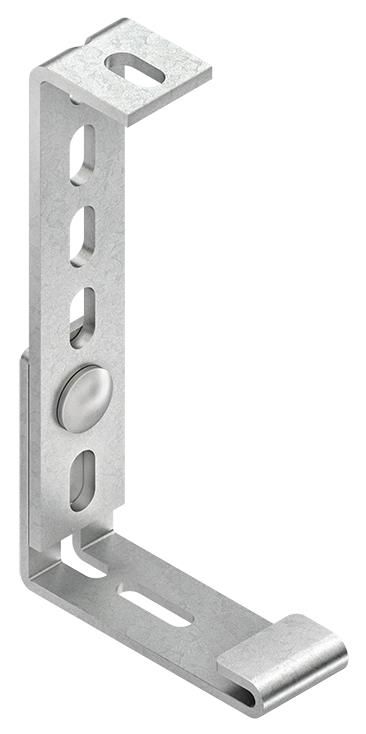

Niedax GRSH30F standard holder,

Standard bracket for mesh cable trays, for mesh cable trays with at least two longitudinal floor wires with a central spacing of 50 mm, for central or offset ceiling suspension for mesh cable trays = 200 mm wide, for ceiling suspension on both sides (inside and outside the mesh cable tray cross-section) for mesh cable trays = 300 mm wide, installation in the longitudinal direction only possible for mesh cable trays with a cross-wire spacing of 75 mm, screwless fastening in the floor of the mesh trays, please order a hook screw GRSM 6 separately to prevent the mesh cable trays from tipping over. When introducing large loads into ceiling-suspended mesh cable trays 200 mm wide or more, these must be supported to prevent deflection! Can be used for: Wall mounting = 100 mm mesh cable tray width GR... .100 GRS 60.100 central and offset arrangement = 200 mm mesh cable tray width with GRTS 30/3 F or GRHS 30/... F GR... .100 - ... GRS 60.100 - ... GRC 60.200 GRCI 50.200 MTC... .100 - ... Exception: mini mesh cable trays arrangement on both sides outside the mesh cable tray cross-section = 300 mm mesh cable tray width with GRTS 30/3 F or GRHS 30/... F GR... .300 - ... GRS 60.300 - ... GRC 60.300 - ... MTC... .300 - ... arrangement on both sides within the mesh cable tray cross-section = 300 mm mesh cable tray width with GRTS 30/3 F or GRHS 30/... F GR... .300 - ... GRS 60.300 - ... GRC 60.300 - ... GRCI 50.300 MTC... .300 - ... central arrangement in the longitudinal direction with a cross wire spacing of 75 mm = 300 mm mesh cable tray width with GRTS 30/3 F or GRHS 30/... F GRCI 50.100 - ... .300 Exception: mini mesh cable trays Dimensions (approx. dimensions) Height H x Length L : 170 x 86.5 mm Fixing hole mesh cable tray : 7 x 25 mm Fixing hole : 9 x 18 mm Material : Steel, hot-dip galvanized in accordance with DIN EN ISO 1461
Type: GRSH 30 F

The item price shown refers to 10 pieces Niedax GRSH30F
