Niedax GRHB30/150F bracket,

This image may differ from the desired article.

223,74 EUR

( 266,25 EUR incl. VAT )

plus delivery charges

Delivery time on request

Sales unit: 20 pieces

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

504693

Mfg Part No:

GRHB30/150F

UPC/EAN:

4013339895168

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
25	210,32 EUR
50	196,89 EUR
100	183,47 EUR
250	170,04 EUR

Further Cable support systems, cable trays and accessories from Niedax Further products in category Cable support systems, cable trays and accessories All products of Niedax

Product information for Niedax GRHB30/150F:

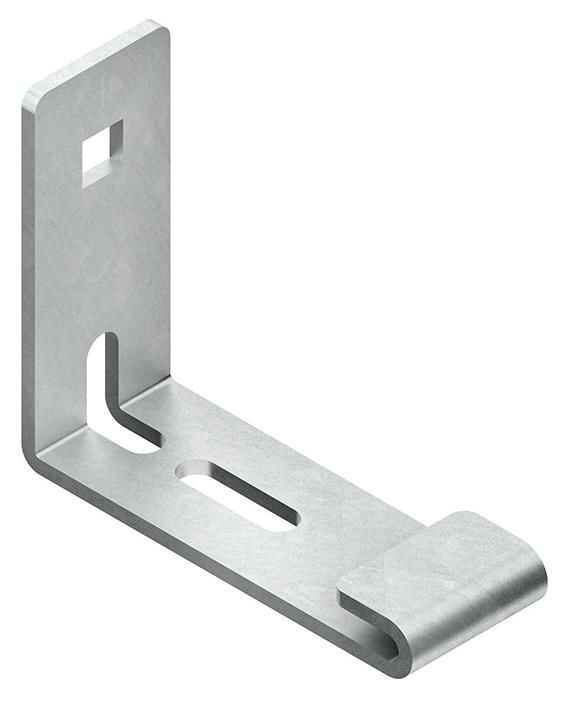

Mesh cable tray retaining bracket, single, for mesh cable trays with at least two longitudinal floor wires with a central spacing of 50 mm, for wall fastening of mesh cables with a width = 100 mm, for central or offset ceiling suspension for mesh cable trays = 200 mm wide, for ceiling suspension on both sides (inside and outside the mesh cable tray cross-section) for mesh cable trays = 300 mm wide, for central ceiling suspension in the longitudinal direction only for mesh cable trays with a cross wire spacing of 75 mm, all ceiling suspensions only possible in conjunction with mesh cable tray support rod GRTS 30/3 F or mesh cable tray hanging support GRHS 30/... F. Screwless fastening in the floor of the mesh cable trays. To prevent the mesh cable trays from tipping, please order a hook screw GRSM 6 F separately. When introducing large loads into ceiling-suspended mesh cable trays with a width of 200 mm or more, these must be supported against deflection! Can be used for: Wall mounting = 100 mm mesh cable tray width GR... .100 GRS 60.100 central and offset arrangement = 200 mm mesh cable tray width with GRTS 30/3 F or GRHS 30/... F GR... .100 - ... GRS 60.100 - ... GRC 60.200 MTC... .100 - ... Exception: mini mesh cable trays arrangement on both sides outside the mesh cable tray cross-section = 300 mm mesh cable tray width with GRTS 30/3 F or GRHS 30/... F GR... .300 - ... GRS 60.300 - ... GRC 60.300 - ... arrangement on both sides within the mesh cable tray cross-section = 300 mm mesh cable tray width with GRTS 30/3 F or GRHS 30/... F GR... .300 - ... GRS 60.300 - ... GRC 60.300 - ... GRCI 50.300 MTC... .300 - ... central arrangement in the longitudinal direction with a cross wire spacing of 75 mm = 300 mm mesh cable tray width with GRTS 30/3 F or GRHS 30/... F GRCI 50.100 - 300 Exception: mini mesh cable trays Dimensions (approx. dimensions) Height H x Length L : 71.5 x 86.5 mm Fixing hole mesh cable tray : 7 x 25 mm Fixing hole : ¿ 9 mm Material : Steel, hot-dip galvanized in accordance with DIN EN ISO 1461
Type: GRHB 30/150 F

The item price shown refers to 20 pieces Niedax GRHB30/150F

Questions & answers

What is the delivery time of Niedax GRHB30/150F bracket,?

The article Niedax GRHB30/150F bracket, is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Niedax GRHB30/150F to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Niedax GRHB30/150F bracket, always at the best possible price. We can give you a discount of 2% on Niedax GRHB30/150F bracket, if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 25 pieces of Niedax GRHB30/150F bracket, we can offer you a price of 210,32 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Niedax GRHB30/150F bracket, via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Niedax GRHB30/150F bracket, is offered by us in a sales unit of 20 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
