Niedax 4013339952144 KK 110.100 GFK cable duct 110x100x3000 mm shaped, connection unlined, pressed, GY

Your rating:
Average rating
product review for Niedax 4013339952144 KK 110.100 GFK cable duct 110x100x3000 mm shaped, connection unlined, pressed, GY
( 5 / 5 ) 1 ratings
Niedax 4013339952144Niedax 4013339952144
Niedax 4013339952144
This image may differ from the desired article.
199,21 EUR
( 237,06 EUR incl. VAT )
≈ £166.74  |  ≈ $222.92
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 3 meters
1x Niedax 4013339952144 KK 110.100 GFK cable duct 110x100x3000 mm shaped, connection unlined, pressed, GY
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:467531
Mfg Part No: 4013339952144
UPC/EAN: 4013339952144
Weight:0.123 kg
Type:KK 110.100
Further Cable support systems, cable trays and accessories from NiedaxFurther products in category Cable support systems, cable trays and accessories All products of Niedax

Product information for Niedax 4013339952144:

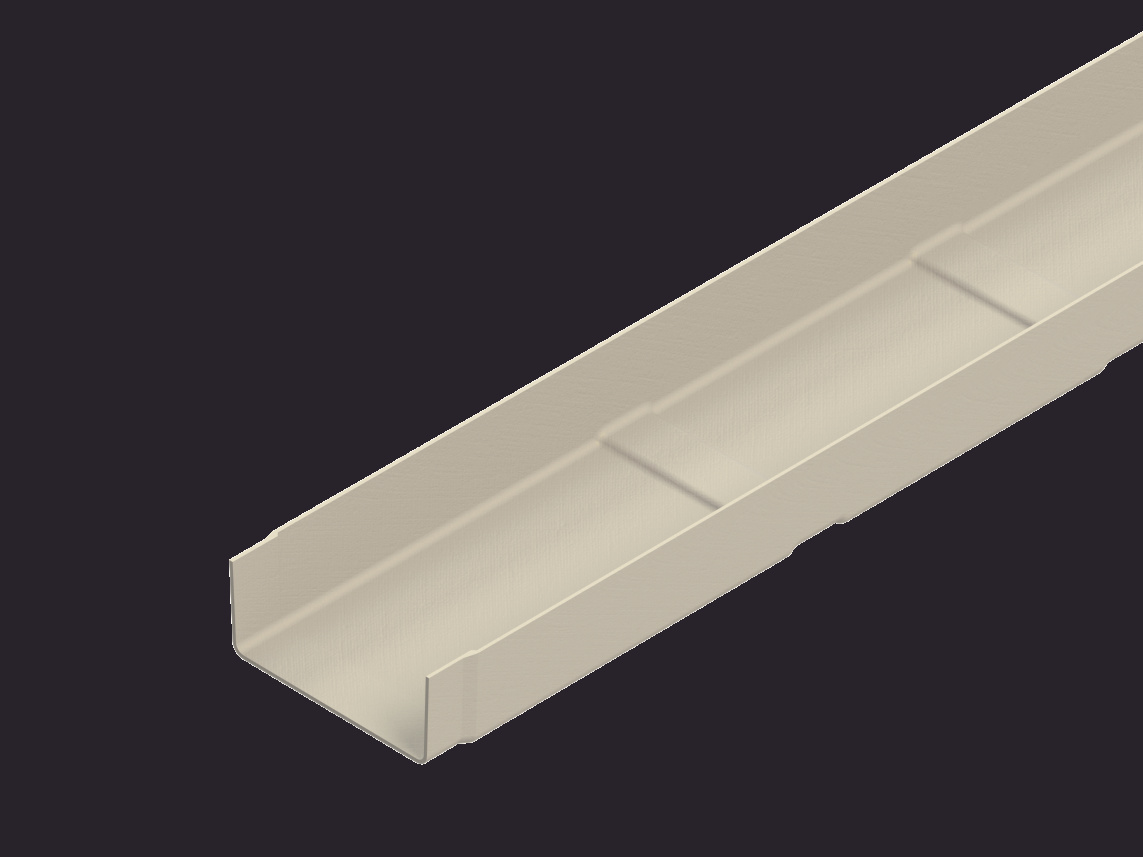

GRP cable tray, pressed, with unperforated side rails and base, with molded connector, with transverse reinforcements (5 mm) over the entire cable tray width, mechanical strength in accordance with IEC 61537, please order appropriate fastening accessories separately, halogen-free. Due to the transverse reinforcements, the cable tray is also approved for use with high-frequency cables in accordance with UTE C15-900 (application class D, frequency 16 MHz). An expansion distance of 8 mm must be taken into account. Due to the expansion of the material, the following must be observed during assembly: - The cable tray should not be screwed close to or at the joint. - When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray. Article also available in ...AC (resin mixture with acrylic resin). Dimensions (approx. dimensions) H x W : 110 x 100 mm Material thickness t : 4 mm Bottom bead shape : 60 x 5 mm Bottom bead shape Grid dimension : 250 mm Load capacity F at a support distance of 1.5 m : 1.2 kN/m Delivery length : 3000 mm Usable cross-section : 7956 mm² Material : UP-GF (glass fiber reinforced polyester) Color : pebble gray RAL : 7032 (similar)

The item price shown refers to 3 meters Niedax 4013339952144

Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.

Questions & answers

What is the delivery time of Niedax 4013339952144 KK 110.100 GFK cable duct 110x100x3000 mm shaped, connection unlined, pressed, GY?

The article Niedax 4013339952144 KK 110.100 GFK cable duct 110x100x3000 mm shaped, connection unlined, pressed, GY is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Niedax 4013339952144 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Niedax 4013339952144 KK 110.100 GFK cable duct 110x100x3000 mm shaped, connection unlined, pressed, GY always at the best possible price. We can give you a discount of 2% on Niedax 4013339952144 KK 110.100 GFK cable duct 110x100x3000 mm shaped, connection unlined, pressed, GY if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Niedax 4013339952144 KK 110.100 GFK cable duct 110x100x3000 mm shaped, connection unlined, pressed, GY is offered by us in a sales unit of 3 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
