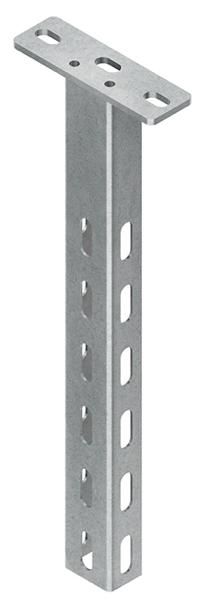

Niedax HU 4530/500 FL hanging support U-profile 43.5x29.5x501mm steel hot-dip galvanized

This image may differ from the desired article.

667,26 EUR

( 794,04 EUR incl. VAT )

plus delivery charges

Delivery time on request

Sales unit: 20 pieces

Printing view Bookmark Wholesale Inquiry

Lieske Part No.:

2105949

Mfg Part No:

4013339164868

UPC/EAN:

4013339164868

Weight:

0.89 kg

Graduated prices net

From pieces	Price per pieces
3	607,21 EUR
6	547,15 EUR
9	487,10 EUR
12	427,05 EUR

Further Cable support systems, cable trays and accessories from Niedax Further products in category Cable support systems, cable trays and accessories All products of Niedax

Product information for Niedax 4013339164868:

Hanging support, U-profile perforated on 3 sides with welded head plate, system HU 4530/..., for brackets for one-, two- and three-sided installation, in order to prevent the deformation of the hanging support profile when installing the bracket, the hanging support spacer profile HDS 45.30 F with hexagon screw must be taken into account for static reasons, when attaching the bracket to the hanging support profile on one side, the closed side of the bracket should preferably be aligned with the profile web of the hanging support. For static reasons and to enable the protective cap to be fitted without problems, the bracket must be mounted at a distance of x=50 mm (bottom edge of the bracket to the end of the hanging support), above the end of the hanging support. for boom: KTAL... KTAM... = 400 mm KTA... = 400 mm Dimensions (approx. dimensions) Head plate L x W xt: 130 x 40 x 5 mm Fastening holes: 11 x 20 mm Center distance: 100 mm Head plate holes, center: 11 x 20 mm 15 mm from the side edge U-profile: 43.5 x 29.5 x 29.5 mm Material thickness t: 2 mm Distance between three-sided profile holes and head plate: 123 mm Three-sided profile holes, single row: 11 x 30 mm Center distance: 50 mm Total length L: 501 mm Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461
Type: HU 4530/500 FL

The item price shown refers to 20 pieces Niedax 4013339164868

Questions & answers

What is the delivery time of Niedax HU 4530/500 FL hanging support U-profile 43.5x29.5x501mm steel hot-dip galvanized?

The article Niedax HU 4530/500 FL hanging support U-profile 43.5x29.5x501mm steel hot-dip galvanized is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Niedax 4013339164868 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Niedax HU 4530/500 FL hanging support U-profile 43.5x29.5x501mm steel hot-dip galvanized always at the best possible price. We can give you a discount of 2% on Niedax HU 4530/500 FL hanging support U-profile 43.5x29.5x501mm steel hot-dip galvanized if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Niedax HU 4530/500 FL hanging support U-profile 43.5x29.5x501mm steel hot-dip galvanized we can offer you a price of 607,21 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Niedax HU 4530/500 FL hanging support U-profile 43.5x29.5x501mm steel hot-dip galvanized is offered by us in a sales unit of 20 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
