Netpeppers 501-915 NEPE TDR Cable Length Meter

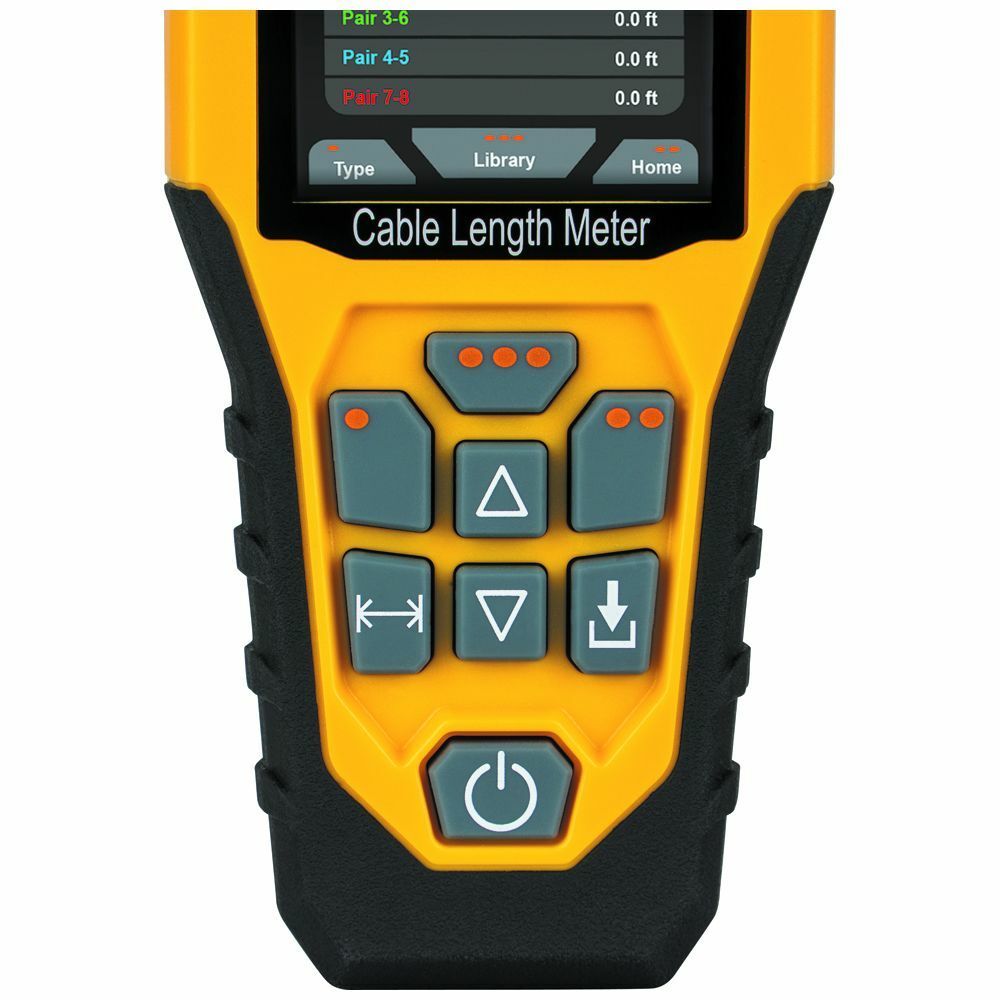

The Klein Tools Cable Length Meter is a portable time domain reflectometer (TDR) for cable length testing. It measures cable lengths, calibrates velocity of propagation (VOP), measures distance to cable faults, and has a tone generator for cable location. This cost-effective tester provides accurate cable length measurement for a wide range of different cable types. Includes test leads and carrying case.
Features:
Cable Length Meter measures length of electrical, data, two-wire and Romex® cables up to 3000 feet (914 m)
TDR technology measures distance to fault, open or short on terminated and unterminated cables
Programmed with Velocity of Propagation (VOP) values for coaxial, data, Romex® and other multi-conductor cables for accurate length measurement with an accuracy of +/- (2 percent plus 3 feet/0.9 m)
Stores custom cable VOP values for consistently accurate results and time savings
Simple user interface with color, interactive LCD
Tones de-energized, open wires for wire tracing (Requires analog probe (Cat. No. VDV500-123, sold separately)
Coax BNC or high-quality alligator clips for quick, easy connection to test most cable types
RJ45 jack for accurate length measurement of terminated data cables
Units of measurement can be switched between metric and imperial units can be switched
Includes padded bag and cable
One set contains the following test leads:
. Coax BNC plug to crocodile clips
. Coax BNC plug to coax F socket
. Coax BNC plug to coax F plug
. CAT-6 RJ45 to CAT-6 RJ45
. Coax BNC plug to coax BNC plug
Type: 501-915
