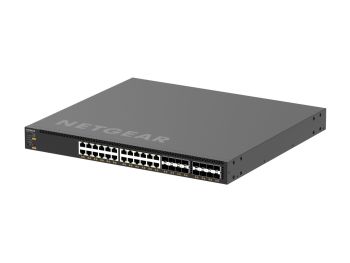

Netgear XSM4340V-100NES
Switch 48-Port M4350-24X8F8V 24x10G 8xSFP+ 8xSFP28
|
6.556,08 EUR 6.577,75 EUR |
|
|
( 7.801,74 EUR incl. VAT ) ≈ £5,467.77 | ≈ $7,323.14 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1552702 |
|---|---|
| Mfg Part No: | XSM4340V-100NES |
| UPC/EAN: | 10606449165132 |
| Weight: | 0 kg |
| Certificates | |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
| Data transmission | |
| Switching capacity | 1040 Gbit/s |
| Throughput | 773.76 Mpps |
| MAC address table | 16000 entries |
| Latency (10 Gbps) | 2.7 µs |
| Jumbo frames | 12000 |
| Packet buffer memory | 64 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| 10G support | |
| Full duplex | |
| Policy-based routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| 6to4 tunnel | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Other features | |
| Power supply | 750 W |
| Packaging content | |
| Cables included | AC, USB Type-C |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Included power plug types | EU, UK, NA |
| Performance | |
| Processor model | ARM Cortex-A57 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 512 MB |
| Built-in processor | |
| sFlow | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 8 |
| SFP28 ports quantity | 8 |
| Power | |
| Power source | AC |
| Power consumption (typical) | 151.8 W |
| Power consumption (max) | 464 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 1770 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP V1, V2, V3 |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) egress | 1023 |
| Access Control List (ACL) ingress | 511 |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Access Control List (ACL) | |
| IGMP snooping | |
| IGMP proxy | |
| MAC address filtering | |
| Static port security | |
| Loop protection | |
| BPDU filtering/protection | |
| Root protection | |
| Password protection | |
| DoS attack prevention | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 400 mm |
| Height | 43.2 mm |
| Weight | 7.24 kg |
Questions & answers
What is the delivery time of Netgear XSM4340V-100NES Switch 48-Port M4350-24X8F8V 24x10G 8xSFP+ 8xSFP28?
The article Netgear XSM4340V-100NES Switch 48-Port M4350-24X8F8V 24x10G 8xSFP+ 8xSFP28 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Netgear XSM4340V-100NES to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Netgear XSM4340V-100NES Switch 48-Port M4350-24X8F8V 24x10G 8xSFP+ 8xSFP28 always at the best possible price. We can give you a discount of 2% on Netgear XSM4340V-100NES Switch 48-Port M4350-24X8F8V 24x10G 8xSFP+ 8xSFP28 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
