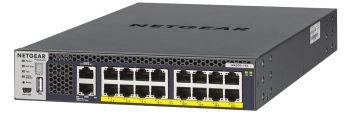

Netgear 16Port Gigabit PoE+ Managed Switch 100/1000/10000 M4300-16X +++ 500W PoE Stabelbar, Nonstop Forwarding uvm.
|
-6% 2.387,00 EUR 2.535,40 EUR |
|
|
( 2.840,53 EUR incl. VAT ) ≈ £1,990.76 | ≈ $2,666.28 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1640421 |
| Mfg Part No: | XSM4316PB-100NES |
| UPC/EAN: | 10606449140986 |
| Weight: | 4 kg |
| Data transmission | |
| Switching capacity | 320 Gbit/s |
| Throughput | 238 Mpps |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Number of static routes | 64 |
| Jumbo frames | 9000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
| Rack mounting | |
| Stackable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Multicast features | |
| Number of multicast groups filtered | 4000 |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| 10G support | |
| Port mirroring | |
| IP routing | |
| Link aggregation | |
| Auto-sensing | |
| VLAN support | |
| Operational conditions | |
| Heat dissipation | 2081.64 BTU/h |
| Packaging content | |
| Rack mount kit | |
| Performance | |
| Physical stacking (units) | 8 |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Noise level | 35 dB |
| Mean time between failures (MTBF) | 690301 h |
| Built-in processor | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Power | |
| Number of power supply units | 1 |
| Power consumption (max) | 610 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 500 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Authentication | Guest VLAN, MAC-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 212 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 3.22 kg |
