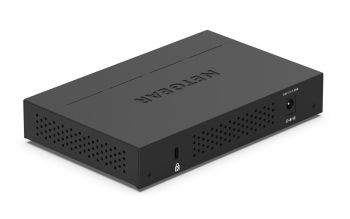

NETGEAR 5PT POE/POE+ GIGE Unmanaged Switch GS305PP
|
68,36 EUR 68,39 EUR |
|
|
( 81,35 EUR incl. VAT ) ≈ £57.01 | ≈ $76.36 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1400369 |
| Mfg Part No: | GS305PP-300EUS |
| UPC/EAN: | 0606449164916 |
| Weight: | 1.4 kg |
| Type: | CPNT |
Product information for Netgear GS305PP-300EUS:
| Certificates | |
| Certification | CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 1.448 Mpps |
| MAC address table | 2000 entries |
| Latency (1 Gbps) | 2.4 µs |
| Jumbo frames | 9216 |
| Packet buffer memory | 128 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Rack mounting | |
| Reset button | |
| Wall mountable | |
| Logistics data | |
| Master (outer) case width | 237 mm |
| Master (outer) case length | 469 mm |
| Master (outer) case height | 306 mm |
| Master (outer) case gross weight | 8.52 kg |
| Products per master (outer) case | 6 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | |
| Full duplex | |
| Auto MDI/MDI-X | |
| Auto-sensing | |
| Auto-negotiation | |
| Cable length detection | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 304 BTU/h |
| Other features | |
| Warranty period | 3 year(s) |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 269 mm |
| Package depth | 73 mm |
| Package height | 215 mm |
| Package weight | 1.3 kg |
| Performance | |
| Mean time between failures (MTBF) | 6710127 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Power | |
| Power source | DC |
| DC input voltage | 54 V |
| Input current | 1.66 A |
| Power consumption (typical) | 2.89 W |
| Power consumption (max) | 88.89 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 83 W |
| Power over Ethernet (PoE) | |
| Technical details | |
| Shipping (inner) case height | 37.5 cm |
| Shipping (inner) case width | 45.1 cm |
| Shipping (inner) case length | 25.5 cm |
| Shipping (inner) case net weight | 15.1 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 410 g |
