Netgear 6000451-10000S 3/4/5G Mobile MIMO Antenna

Your rating:
Average rating
product review for Netgear 6000451-10000S 3/4/5G Mobile MIMO Antenna
( 4 / 5 ) 1 ratings
Netgear 6000451-10000S
This image may differ from the desired article.
Netgear 6000451-10000SNetgear 6000451-10000SNetgear 6000451-10000SNetgear 6000451-10000S
52,93 EUR
( 62,99 EUR incl. VAT )
≈ £44.30  |  ≈ $58.17
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: >50 pieces
1x Netgear 6000451-10000S 3/4/5G Mobile MIMO Antenna
Datasheet:file_download Download
Lieske Part No.:1912930
Mfg Part No: 6000451-10000S
UPC/EAN: 0606449158540
Weight:0.205 kg
Type:ACCS

Product information for Netgear 6000451-10000S:

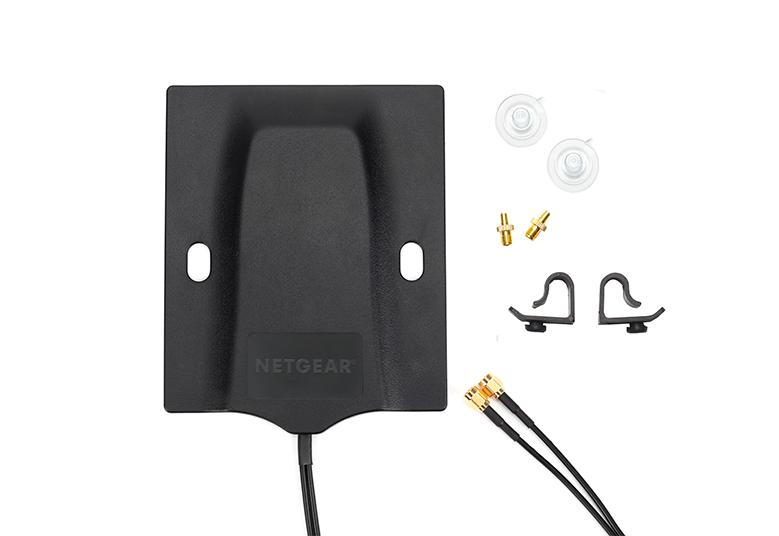

The Netgear ACCS (manufacturer number 6000451-10000S) is an omnidirectional MIMO antenna designed specifically for use with 3G/4G/5G modems and mobile hotspots. It is intended to improve reception performance and extend network coverage in areas with weak signal strength, such as buildings, vehicles, or remote locations. The antenna features a slim, flat housing with dimensions of 160 mm (width) × 120 mm (depth) × 5.5 mm (height) and is black in colour. With a 100 m cable, it allows flexible placement of the antenna element independently of the device to which it is connected.

Applications

The antenna is ideal for applications requiring a stable and sufficiently strong mobile network connection, where signal quality is impaired by buildings, distance, or other obstacles. It is commonly used in environments where mobile broadband devices such as USB modems or mobile hotspots are deployed to provide wireless internet connectivity. Typical use cases include vehicles or rural areas with limited network coverage, as the antenna can enhance the range and signal quality of connected devices.

Features and Equipment in Detail

The antenna provides a maximum gain of 2.5 dBi, which represents a slight signal boost compared to integrated antennas in devices. It is designed for frequency bands from 1710 MHz to 5925 MHz, covering major mobile communication standards including GSM/EDGE, UMTS, HSPA, CDMA, EV-DO, WiMAX, LTE, and 5G. The antenna comes equipped with two SMA connectors and two TS-9 adapters, enabling direct connection to devices with these interfaces. The delivery also includes mounting clips and suction cup holders, facilitating easy installation on laptops or other surfaces.

Technology Explained Simply

The omnidirectional orientation of the antenna means it receives and transmits signals in all directions, which is particularly advantageous when the exact position of the transmitter is unknown. MIMO technology (Multiple Input Multiple Output) allows the use of multiple antenna elements to increase data rate and signal stability. The 2.5 dBi gain improves sensitivity to weak signals, which is especially beneficial in the edge areas of mobile networks. The 100 m cable enables spatial separation between the device and the antenna, allowing the antenna to be positioned at a location with better signal quality.

Compatibility and Accessories

The antenna is compatible with a range of Netgear devices, including models MR1100, MR5200, MR6500, MR6110, and LM1200. Additionally, it can be used with other devices featuring TS-9 or SMA connectors. Use with 3G/4G/5G modems and mobile hotspots is specifically highlighted, and the antenna requires no additional software or configuration. The included mounting clips and suction cup holders simplify installation on various surfaces, particularly on laptops or vehicles.

Installation and Mounting

Installation requires no additional software or configuration. The antenna connects directly to the device via SMA or TS-9 connectors. The 100 m cable allows flexible positioning, with the antenna ideally placed at a location offering better signal quality. The included mounting clips and suction cup holders facilitate secure attachment to various surfaces, ensuring stable and safe installation.

Operational Advantages

Using the antenna improves signal quality and network coverage in areas with poor reception performance. The simple installation without additional configuration makes it particularly suitable for mobile applications. The combination of omnidirectional orientation, MIMO technology, and the long cable length enables flexible and efficient use in various application scenarios, especially in buildings, vehicles, or remote locations.

Features
Product colourBlack
Cable length100 m
Compatible productsMR1100, MR5200, MR6500, MR6110, LM1200, and other devices with TS-9 or SMA connectors.
Logistics data
Harmonized System (HS) code85177100
Performance
Bandwidth note1710-5925 MHz
Antenna gain level (max)2.5 dBi
Weight & dimensions
Width160 mm
Depth120 mm
Height5.5 mm


Product data sheet
Datasheet for Netgear 6000451-10000S, EAN: 0606449158540

Questions & answers

What is the delivery time of Netgear 6000451-10000S 3/4/5G Mobile MIMO Antenna ?

The article Netgear 6000451-10000S 3/4/5G Mobile MIMO Antenna is currently in stock

According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Netgear 6000451-10000S to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Netgear 6000451-10000S 3/4/5G Mobile MIMO Antenna always at the best possible price. We can give you a discount of 2% on Netgear 6000451-10000S 3/4/5G Mobile MIMO Antenna if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
