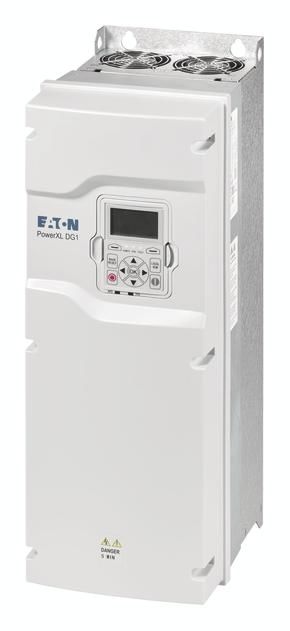

Moeller 9702-3002-00P EATON DG1-34031FB-C21C inverter, EMC filter int.Bremstransistor IP21 9702 content_copy

Frequency converter, type code: DG1, rated operating voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, 500 V AC, 3-phase, output voltage at Ue: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, 500 V AC, 3-phase, mains voltage (50/60Hz): ULN = 380 (-15%) - 500 (+10%) V, rated operating current at 150% overload: Ie = 31 A, Note: rated operating current at a switching frequency of 1 - 12 kHz and an ambient temperature of +50 °C for 150% overload and +40 °C for 110% overload, rated operating current at 110% overload: Ie = 38 A, Note: Overload cycle for 60 s every 600 s, Assigned motor power Note: for normal four-pole, internally and externally ventilated three-phase asynchronous motors with 1500 min-1 at 50 Hz or 1800 min-1 at 60 Hz, Overload cycle for 60 s every 600 s, at 400 V, 50 Hz, Assigned motor power 150 % overload: P = 15 kW, 110 % overload: P = 18.5 kW, 150 % overload: IM = 29.3 A, 110 % overload: IM = 36 A, Assigned motor power Note: at 500 V, 50 Hz, Assigned motor power 150 % overload: P = 18.5 kW, 110 % overload: P = 22 kW, 150 % overload: IM = 28.9 A, 110% overload: IM = 33 A, Assigned motor power Note: at 480 V, 60 Hz, Assigned motor power 150% overload: P = 20 HP, 110% overload: P = 25 HP, Assigned motor power 150% overload: IM = 27 A, 110% overload: IM = 34 A, Protection class: IP21/NEMA1, Interface/fieldbus (built-in): Modbus RTU, Modbus TCP, BACnet MS/TP, Ethernet IP, Fieldbus connection (optional): PROFIBUS, CANopen®, DeviceNet, SmartWire-DT, Equipment: Radio interference filter, additional circuit board protection, multi-line graphic display, brake chopper, DC link choke, Size: FS3, Standards and regulations: General requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Requirements on safety: IEC/EN 61800-5, IEC/EN 60950-1: SELF
