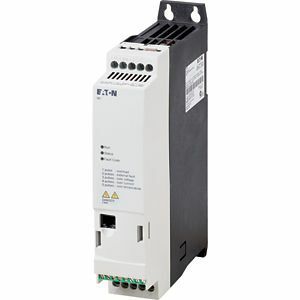

Moeller 180664 EATON DE11-343D6FN-N20N frequency converter. 3/3ph 400V 3.6A 1.5kW 2HP
|
387,42 EUR 403,73 EUR |
|||||||||||
|
( 461,03 EUR incl. VAT ) ≈ £332.02 | ≈ $440.11 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 2058441 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 180664 | ||||||||||
| UPC/EAN: | 4015081758296 | ||||||||||
| Weight: | 1.178 kg | ||||||||||
| Type: | DE11-343D6FN-N20N | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Frequency converter, soft starter from MoellerFurther products in category Frequency converter, soft starter
All products of Moeller
Product information for Moeller 180664:
Speed starter, type code: DE11, rated operating voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, output voltage at Ue: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, mains voltage (50/60Hz): ULN = 380 (-10%) - 480 (+10%) V, rated operating current at 150% overload: Ie = 3.6 A, note: rated operating current at a switching frequency of 16 kHz and an ambient temperature of +50 °C, note: overload cycle for 60 s every 600 s, assigned motor power note: for normal four-pole, internally and externally ventilated three-phase asynchronous motors with 1500 min-1 at 50 Hz or 1800 min-1 at 60 Hz, Overload cycle for 60 s every 600 s, at 400 V, 50 Hz, Assigned motor power 150% overload: P = 1.5 kW, 150% overload: IM = 3.6 A, Assigned motor power Note: at 440 - 480 V, 60 Hz, Assigned motor power 150% overload: P = 2 HP, Assigned motor power 150% overload: IM = 3.4 A, Protection class: IP20/NEMA 0, Interface/fieldbus (built-in): OP-Bus (RS485)/Modbus RTU, CANopen®, Equipment: Radio interference filter, Size: FS1, Standards and regulations: General requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1
Questions & answers
What is the delivery time of Moeller 180664 EATON DE11-343D6FN-N20N frequency converter. 3/3ph 400V 3.6A 1.5kW 2HP ?
The article Moeller 180664 EATON DE11-343D6FN-N20N frequency converter. 3/3ph 400V 3.6A 1.5kW 2HP is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Moeller 180664 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Moeller 180664 EATON DE11-343D6FN-N20N frequency converter. 3/3ph 400V 3.6A 1.5kW 2HP always at the best possible price. We can give you a discount of 2% on Moeller 180664 EATON DE11-343D6FN-N20N frequency converter. 3/3ph 400V 3.6A 1.5kW 2HP if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Moeller 180664 EATON DE11-343D6FN-N20N frequency converter. 3/3ph 400V 3.6A 1.5kW 2HP we can offer you a price of 378,70 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
This product is recommended as accessory for
 |
Moeller 174621 EATON DXE EXT-SET configuration module,
Configuration module, description: with selector switch for ramp time and operating mode, with potentiometer for motor protection and fixed frequency, can be used for: DE1, DE11, connection ... Lieske Part No.: 263372 Mfg Part No: 174621 Type: DXE-EXT-SET |
-9% 61,00 EUR 67,33 EUR
 ≈ £52.28 | ≈ $69.30
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 169131 EATON DX-NET SWD3 FU DC1 Komm.SWD module, IP20
SmartWire-DT module, fieldbus connection (optional): SmartWire-DT, usable for: DE1, DE11, DC1 (IP20), connection technology: plug-in module (front) with slot for device plug SWD4-8SF2-5 Lieske Part No.: 276878 Mfg Part No: 169131 Type: DX-NET-SWD3 |
96,68 EUR 99,58 EUR
≈ £82.85 | ≈ $109.83
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller Electric 197586 EATON DX-COM-STICK3-KIT Bluetooth communication stick
Parameter memory and Bluetooth communication stick, for storage, parameter copying and/or parameter transfer via Bluetooth to a PC with drivesConnect software, with 2 function keys for uploading and ... Lieske Part No.: 332508 Mfg Part No: 197586 Type: DX-COM-STICK3-KIT |
143,46 EUR 147,77 EUR
≈ £122.95 | ≈ $162.97
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 269501 EATON DEX-LN3-006 mains choke AC 3ph
Mains choke, rated voltage 480 V AC, three-phase, uk =4% Lieske Part No.: 375266 Mfg Part No: 269501 Type: DX-LN3-006 |
-9% 70,56 EUR 77,83 EUR
≈ £60.47 | ≈ $80.16
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 269539 EATON DEX-LM3-008 Motor choke AC
Motor choke three-phase max. permissible mains voltage 750V AC rated current 8 A inductance 4.1 mH Lieske Part No.: 678804 Mfg Part No: 269539 Type: DX-LM3-008 |
-6% 136,55 EUR 144,54 EUR
≈ £117.02 | ≈ $155.12
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 186946 EATON DX-KEY-OLED2 FU control unit OLED Vers.2
Control unit, sub-range: Control unit, Description: with 7-segment display, front IP54, with approx. 3 m long, pluggable connection cable (RJ45, 8-pin), length: 3 m, can be used for: DE1, DC1, DA1, DB1 Lieske Part No.: 1130282 Mfg Part No: 186946 Type: DX-KEY-LED2 |
92,84 EUR 95,62 EUR
≈ £79.56 | ≈ $105.47
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
|
 |
Moeller 169142 EATON DXSPL-RJ45-2SL1PL splitter RJ45 8p 2 sockets/1 plug with approx. 10cm cable
Splitter, sub-range: Splitter, description: RJ45, 8-pin, 2 sockets/1 plug, with approx. 10 cm cable, for CANopen® and Modbus RTU, can be used for: DE1, DE11, DC1, DA1 Lieske Part No.: 1135249 Mfg Part No: 169142 Type: DX-SPL-RJ45-2SL1PL |
21,71 EUR 22,37 EUR
≈ £18.61 | ≈ $24.66
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 744-A3036-00P EATON DX-CBL-PC-3M0 converter for frequency converter DA1 & DC1 to
Interface converter, sub-range: Interface converter, basic function: for direct connection of the frequency converter/motor starter to a PC with drivesConnect software, description: Interface ... Lieske Part No.: 1343242 Mfg Part No: 744-A3036-00P Type: DX-CBL-PC-3M0 |
70,05 EUR 72,15 EUR
≈ £60.03 | ≈ $79.58
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 169138 EATON DXCBL-RJ45-1M0 connection cable 1m with RJ45 plugs for DA1 and DC1
Connecting cable, sub-range: Connecting cable, description: Patch cable with RJ45 connectors, 8-pin, length: 1 m, can be used for: DE1, DE11, DC1, DA1 Lieske Part No.: 1591160 Mfg Part No: 169138 Type: DX-CBL-RJ45-1M0 |
7,45 EUR 7,67 EUR
≈ £6.38 | ≈ $8.46
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
