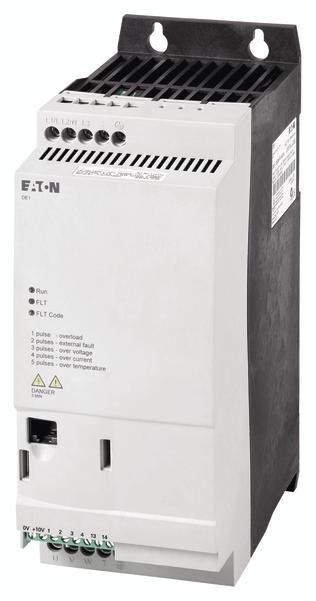

Moeller 177368 EATON DE1-345D0NN-N20N speed starter 3Ph. Mains connection 1Ph. 400V 5A
|
409,22 EUR 426,45 EUR |
|||||||||||
|
( 486,97 EUR incl. VAT ) ≈ £350.70 | ≈ $464.87 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1129198 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 177368 | ||||||||||
| UPC/EAN: | 4015081718283 | ||||||||||
| Weight: | 1.872 kg | ||||||||||
| Type: | DE1-345D0NN-N20N | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Frequency converter, soft starter from MoellerFurther products in category Frequency converter, soft starter
All products of Moeller
Product information for Moeller 177368:
Speed starter, type code: DE1, rated operating voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, output voltage at Ue: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, mains voltage (50/60Hz): ULN = 380 (-10%) - 480 (+10%) V, rated operating current at 150% overload: Ie = 5 A, note: rated operating current at a switching frequency of 16 kHz and an ambient temperature of +50 °C, note: overload cycle for 60 s every 600 s, assigned motor power note: for normal four-pole, internally and externally ventilated three-phase asynchronous motors with 1500 min-1 at 50 Hz or 1800 min-1 at 60 Hz, Overload cycle for 60 s every 600 s, at 400 V, 50 Hz, Assigned motor power 150% overload: P = 2.2 kW, 150% overload: IM = 5 A, Assigned motor power Note: at 440 - 480 V, 60 Hz, Assigned motor power 150% overload: P = 3 HP, Assigned motor power 150% overload: IM = 4.8 A, Degree of protection: IP20/NEMA 0, Interface/fieldbus (built-in): OP-Bus (RS485)/Modbus RTU, Frame size: FS2, Standards and regulations: General requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1
Questions & answers
What is the delivery time of Moeller 177368 EATON DE1-345D0NN-N20N speed starter 3Ph. Mains connection 1Ph. 400V 5A ?
The article Moeller 177368 EATON DE1-345D0NN-N20N speed starter 3Ph. Mains connection 1Ph. 400V 5A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Moeller 177368 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Moeller 177368 EATON DE1-345D0NN-N20N speed starter 3Ph. Mains connection 1Ph. 400V 5A always at the best possible price. We can give you a discount of 2% on Moeller 177368 EATON DE1-345D0NN-N20N speed starter 3Ph. Mains connection 1Ph. 400V 5A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Moeller 177368 EATON DE1-345D0NN-N20N speed starter 3Ph. Mains connection 1Ph. 400V 5A we can offer you a price of 400,01 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
