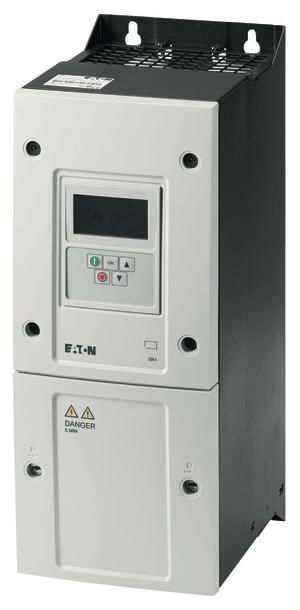

Moeller 169391 EATON DA1-34030FB-B55C FU 3/3 ph 400V 30A 15kW EMC IP55 content_copy

Frequency converter, type code: DA1, rated operating voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, output voltage at Ue: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, mains voltage (50/60Hz): ULN = 380 (-10%) - 480 (+10%) V, rated operating current at 150% overload: Ie = 30 A, note: rated operating current at a switching frequency of 8 kHz and an ambient temperature of +40 °C, note: overload cycle for 60 s every 600 s, assigned motor power note: for normal four-pole, internally and externally ventilated three-phase asynchronous motors with 1500 min-1 at 50 Hz or 1800 min-1 at 60 Hz, Overload cycle for 60 s every 600 s, at 400 V, 50 Hz, Assigned motor power 150% overload: P = 15 kW, 150% overload: IM = 29.3 A, Assigned motor power note: at 440 - 480 V, 60 Hz, Assigned motor power 150% overload: P = 20 HP, Assigned motor power 150% overload: IM = 27 A, Protection class: IP55/NEMA 12, Interface/fieldbus (built-in): OP-Bus (RS485)/Modbus RTU, CANopen®, Fieldbus connection (optional): Ethernet IP, DeviceNet, PROFIBUS, PROFINET, Modbus-TCP, EtherCAT, SmartWire-DT, Equipment: Radio interference filter, brake chopper, additional circuit board protection, OLED display, Size: FS4, Standards and regulations: General requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1
