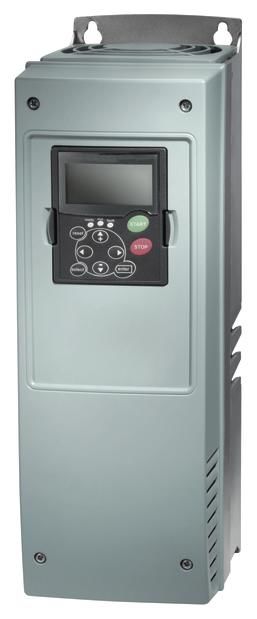

Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem.

Your rating:
Average rating
product review for Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem.
( 4.3 / 5 ) 10 ratings
Moeller 125660
This image may differ from the desired article.
2.500,90 EUR 2.606,20 EUR
( 2.976,07 EUR incl. VAT )
≈ £2,143.27  |  ≈ $2,841.02
plus delivery charges: 83,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem.
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:1129271
Mfg Part No: 125660
UPC/EAN: 4015081232703
Weight:8.46 kg
Type:SPX007A1-4A1B1
Graduated prices net
From piecesPrice per pieces
22.482,14 EUR
42.463,39 EUR
62.444,63 EUR
82.425,87 EUR
Further Frequency converter, soft starter from MoellerFurther products in category Frequency converter, soft starter All products of Moeller

Product information for Moeller 125660:

Frequency converter, type reference: SPX, rated operating voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, 500 V AC, 3-phase, output voltage at Ue: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, 500 V AC, 3-phase, mains voltage (50/60Hz): ULN = 380 (-15%) - 500 (+10%) V, rated operating current at 150% overload: Ie = 12 A, rated operating current at 110% overload: Ie = 16 A, note: overload cycle for 60 s every 600 s, assigned motor power note: for internally and externally ventilated AC motors with 50 Hz or 60 Hz, overload cycle for 60 s every 600 s, at 400 V, 50 Hz, Assigned motor power 150% overload: P = 5.5 kW, 110% overload: P = 7.5 kW, 150% overload: IM = 11.3 A, 110% overload: IM = 15.2 A, Assigned motor power Note: at 440 - 480 V, 60 Hz, Assigned motor power 150% overload: P = 7.5 HP, 110% overload: P = 10 HP, Assigned motor power 150% overload: IM = 11 A, 110% overload: IM = 14 A, Protection class: IP21, Fieldbus connection (optional): PROFIBUS-DP, LonWorks, CANopen®, DeviceNet, Modbus-TCP, BACnet/IP, Equipment: Radio interference filter, Brake chopper, OLED display, DC link choke, Frame size: FR5, Standards and regulations: General requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1


Questions & answers

What is the delivery time of Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem.?

The article Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem. is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Moeller 125660 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem. always at the best possible price. We can give you a discount of 2% on Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem. if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem. we can offer you a price of 2.482,14 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Moeller 125660 EATON SPX007A1-4A1B1 frequency inverter 3/3ph. 480V 5.5kW IP21 EMC+Brem.

Moeller 125049 EATON OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX Moeller LogoMoeller 125049 EATON OPTA2 output extension 2RO (NO/NC) for FU SVX and SPX Output extension, Sub-range: Output extension, Description: The extension module is plugged into the frequency converter., 2 relay outputs (NO/NC), can be used for: SVX, SPX

Lieske Part No.: 127658
Mfg Part No: 125049
Type: OPTA2
46,78 EUR 48,19 EUR
Moeller 125049 plus VAT
≈ £40.09  |  ≈ $53.14
Made to order · Delivery time approx. 20 workdaysinfo_outline
Moeller 125055 EATON OPTA9 input and output extension 6DI 1DO for FU SVX and SPX Moeller LogoMoeller 125055 EATON OPTA9 input and output extension 6DI 1DO for FU SVX and SPX Input/output extension, sub-range: Input/output extension, description: The extension module is plugged into the frequency converter., 6 digital inputs, 1 digital output, 2 analog inputs (mA/V), 1 ...

Lieske Part No.: 127673
Mfg Part No: 125055
Type: OPTA9
99,80 EUR 102,79 EUR
Moeller 125055 plus VAT
≈ £85.53  |  ≈ $113.37
Made to order · Delivery time approx. 20 workdaysinfo_outline
Moeller 269542 EATON DEX-LM3-016 Motor choke AC Moeller LogoMoeller 269542 EATON DEX-LM3-016 Motor choke AC Motor choke three-phase max. permissible mains voltage 750V AC rated current 16 A inductance 1.5 mH

Lieske Part No.: 461513
Mfg Part No: 269542
Type: DX-LM3-016
-8% 145,63 EUR 158,14 EUR
Moeller 269542 plus VAT
≈ £124.80  |  ≈ $165.44
Made to order · Delivery time approx. 20 workdaysinfo_outline
Moeller 269503 EATON DEX-LN3-016 3ph AC line reactor, Moeller LogoMoeller 269503 EATON DEX-LN3-016 3ph AC line reactor, Mains choke, rated voltage 480 V AC, three-phase, uk =4%

Lieske Part No.: 915158
Mfg Part No: 269503
Type: DX-LN3-016
-9% 100,28 EUR 109,95 EUR
Moeller 269503 plus VAT
≈ £85.94  |  ≈ $113.92
Made to order · Delivery time approx. 20 workdaysinfo_outline
Moeller 125062 EATON OPTB5 output extension 3RO NO for frequency inverters and SPX Moeller LogoMoeller 125062 EATON OPTB5 output extension 3RO NO for frequency inverters and SPX Output extension, Sub-range: Output extension, Description: The extension module is plugged into the frequency converter., 3 relay outputs (NO), can be used for: SVX, SPX

Lieske Part No.: 1129237
Mfg Part No: 125062
Type: OPTB5
142,74 EUR 147,02 EUR
Moeller 125062 plus VAT
≈ £122.33  |  ≈ $162.15
Made to order · Delivery time approx. 20 workdaysinfo_outline
Moeller 126868 EATON OPTRMT-KIT connection cable 2m for mounting frame Moeller LogoMoeller 126868 EATON OPTRMT-KIT connection cable 2m for mounting frame Connection cable, sub-range: mounting frame, description: mounting frame for control cabinet door, connection cable, length: 2 m, usable for: KEYPAD-LOC/REM

Lieske Part No.: 1129266
Mfg Part No: 126868
Type: OPTRMT-KIT
116,94 EUR 120,45 EUR
Moeller 126868 plus VAT
≈ £100.22  |  ≈ $132.84
Made to order · Delivery time approx. 20 workdaysinfo_outline
