Mitsubishi 269669 L26CPU-P L-Series CPU 4096/8192EA 260k steps

Your rating:
Average rating
product review for Mitsubishi 269669 L26CPU-P L-Series CPU 4096/8192EA 260k steps
( 4 / 5 ) 2 ratings

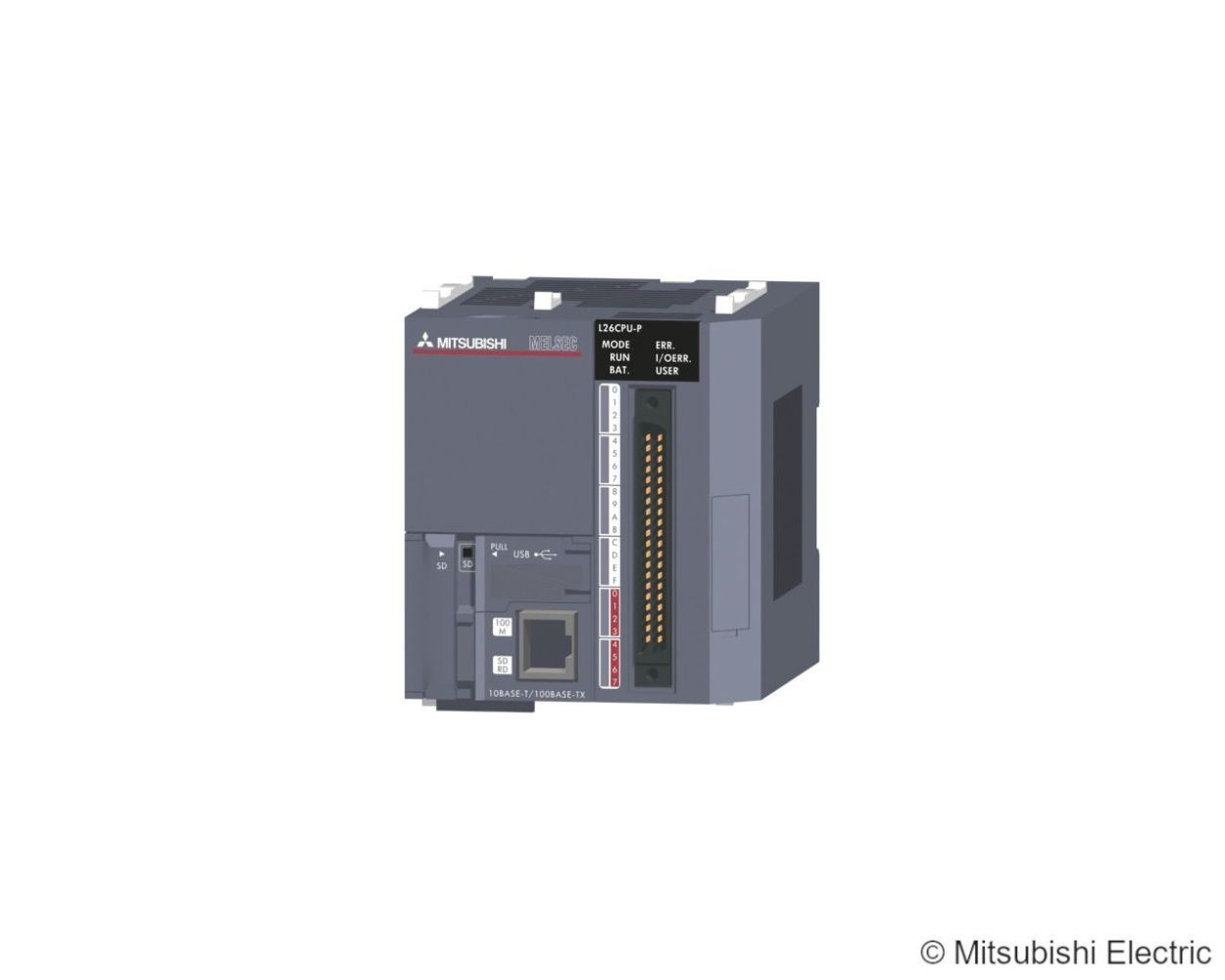

Mitsubishi 269669
This image may differ from the desired article.
4.391,84 EUR 4.582,79 EUR
( 5.226,29 EUR incl. VAT )
≈ £3,658.40  |  ≈ $4,817.85
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mitsubishi 269669 L26CPU-P L-Series CPU 4096/8192EA 260k steps
Lieske Part No.:512435
Mfg Part No: 269669
Weight:0.123 kg
Type:L26CPU-P

Product information for Mitsubishi 269669:

The Mitsubishi L26CPU-P is a CPU module for the L-Series PLC, designed for use in industrial automation systems. The module serves as the central control unit in decentralized control systems and enables the processing of input and output signals as well as the execution of control programs. It is designed for applications requiring a high number of inputs and outputs as well as sufficient program memory size. The CPU features positive logic, meaning that a logical state "2,5 cm ( 1 inch ) is defined by a positive voltage threshold, making it suitable for systems with standardized signal levels.

PLC System

The L26CPU-P is part of the Mitsubishi L-Series, a range of PLC modules designed for medium to large automation tasks. These PLC systems are capable of processing complex control logics and offer high integration capability with other Mitsubishi modules as well as external devices. The CPU functions as the core component, coordinating communication between individual modules and peripherals.

Functions and Features in Detail

The module features 16 digital inputs and 8 digital outputs, which can be used to control sensors, switches, relays, and drives. The maximum number of inputs and outputs achievable via expansion modules is 4096 inputs and 8192 outputs, making the CPU suitable for extensive installations. The program memory size is 260,000 steps, sufficient to implement complex control sequences. The CPU supports communication via Ethernet, enabling integration into modern industrial communication networks.

Technology Explained Simply

The CPU processes control logic in the form of ladder diagrams or other programming languages commonly used in PLC programming. Positive logic means that a signal level of 2,5 cm ( 1 inch ) is represented by a positive voltage (e.g., 24 V), while "0 is defined by the absence of voltage. This is a common convention in industrial electronics and ensures clear signal interpretation. The Ethernet interface enables data transmission to other devices, such as visualization stations or higher-level control systems.

Compatibility and Accessories

The L26CPU-P is compatible with other modules in the Mitsubishi L-Series, particularly with expansion modules for inputs and outputs. Communication is achieved via the integrated Ethernet interface, allowing the module to be integrated into existing networks. For programming and configuration, specialized software provided by Mitsubishi is typically used.

Mounting and Installation

The CPU is installed in a PLC housing that is part of a modular system. Mounting is typically done by inserting the module into a corresponding rail holder or into a special housing designed for the L-Series. Wiring of inputs and outputs is done via standardized terminal clamps intended for connection to field devices.

Advantages in Operation

The L26CPU-P offers high flexibility due to the large number of available inputs and outputs as well as the large program memory size. The Ethernet interface enables fast and reliable communication, simplifying maintenance and diagnostics of installations. Positive logic ensures unambiguous signal processing, increasing the reliability of the control system.

General
PLC systemL-series
CPU typeL26CPU-P
Inputs16
Outputs8
Max. inputs4096
Max. outputs8192
Program memory260k steps
Logicpositive


Questions & answers

What is the delivery time of Mitsubishi 269669 L26CPU-P L-Series CPU 4096/8192EA 260k steps ?

The article Mitsubishi 269669 L26CPU-P L-Series CPU 4096/8192EA 260k steps is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mitsubishi 269669 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mitsubishi 269669 L26CPU-P L-Series CPU 4096/8192EA 260k steps always at the best possible price. We can give you a discount of 2% on Mitsubishi 269669 L26CPU-P L-Series CPU 4096/8192EA 260k steps if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
