Mitsubishi 200692 Q68DAIN PLC system Q analog output module 8 outputs current

Your rating:
Average rating
product review for Mitsubishi 200692 Q68DAIN PLC system Q analog output module 8 outputs current
( 4.4 / 5 ) 39 ratings

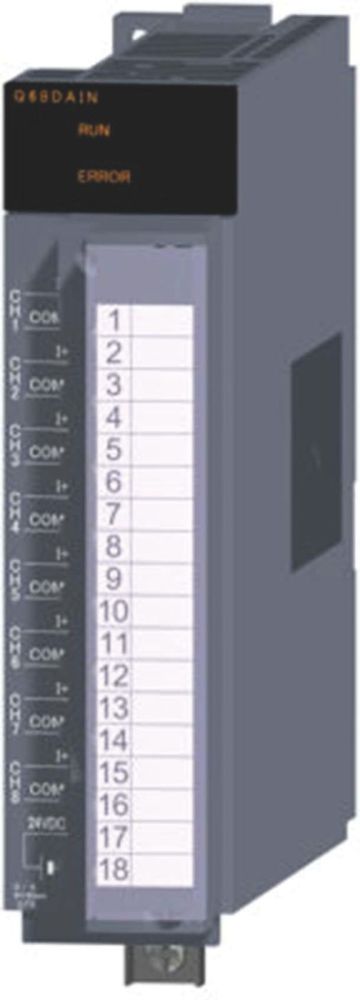

Mitsubishi 200692
This image may differ from the desired article.
885,33 EUR 923,82 EUR
( 1.053,54 EUR incl. VAT )
≈ £741.02  |  ≈ $972.98
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mitsubishi 200692 Q68DAIN PLC system Q analog output module 8 outputs current
Lieske Part No.:327811
Mfg Part No: 200692
Weight:0.289 kg
Type:Q68DAIN

Product information for Mitsubishi 200692:

The Mitsubishi SPS SystemQ analog output module type Q68DAIN is a modular component element for industrial automation systems. It serves as an output module for controlling analog loads in the current range and is used in SPS systems of the SystemQ series. The module features eight independent outputs that are galvanically isolated to ensure high electrical isolation between individual channels and the main system. This isolation reduces interference and increases safety when controlling sensitive or high-power consumers.

Analog output module

The Q68DAIN is specifically designed for outputting analog current signals. It enables precise control of loads that are actuated via current signals, such as positioning motors, heating registers, or other analog-controlled actuators. The galvanic isolation of the eight outputs ensures that interference or voltage fluctuations on one channel are not transmitted to other outputs, thereby increasing the reliability of the entire control system.

Functions and equipment in detail

Galvanic isolation is a central feature that ensures electrical safety and signal quality in industrial operation. The module is intended for use in SPS systems of the Mitsubishi SystemQ family and is mounted in standard plug-in module housings used in typical control enclosures.

Technology explained clearly

Galvanic isolation is achieved through opto-coupled or transformer-based isolation stages that separate electrical potentials between the control and load circuits. This prevents voltage spikes or fault currents from the load circuit from entering the control system. This is particularly important in environments with high electrical interference or when controlling loads with different earth potentials. The eight outputs operate independently, enabling parallel control tasks without mutual interference.

Compatibility and accessories

The module is specifically developed for Mitsubishi SPS systems of the SystemQ series and requires use within a compatible SystemQ control frame. No additional accessories or adapters are required to integrate the module into an existing SystemQ system. The exact plug-in technology and connection types are adapted to the SystemQ standard architecture.

Mounting and installation

Mounting is performed in a standard plug-in module housing within a control enclosure. The module is inserted into the designated plug position and mechanically secured. Electrical connection is made via the integrated terminal clamps at the outputs. Installation requires no additional tools or components, except for the usual aids for control enclosure mounting.

Advantages in operation

Galvanic isolation of the eight outputs increases interference resistance and operational safety. The modular design enables flexible expansion of the control system without requiring a complete system overhaul. Use in SystemQ control systems ensures high compatibility with existing control software and hardware components.

General
ManufacturerMitsubishi
Number of outputs8
Type of outputCurrent
System compatibilitySystemQ
Galvanic separationYes


Questions & answers

What is the delivery time of Mitsubishi 200692 Q68DAIN PLC system Q analog output module 8 outputs current ?

The article Mitsubishi 200692 Q68DAIN PLC system Q analog output module 8 outputs current is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mitsubishi 200692 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mitsubishi 200692 Q68DAIN PLC system Q analog output module 8 outputs current always at the best possible price. We can give you a discount of 2% on Mitsubishi 200692 Q68DAIN PLC system Q analog output module 8 outputs current if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
