MikroTik RBGPOE-CON-HP 48 to 24V Gigabit PoE Converter,

Your rating:
Average rating
product review for MikroTik RBGPOE-CON-HP 48 to 24V Gigabit PoE Converter,
( 4.5 / 5 ) 11 ratings

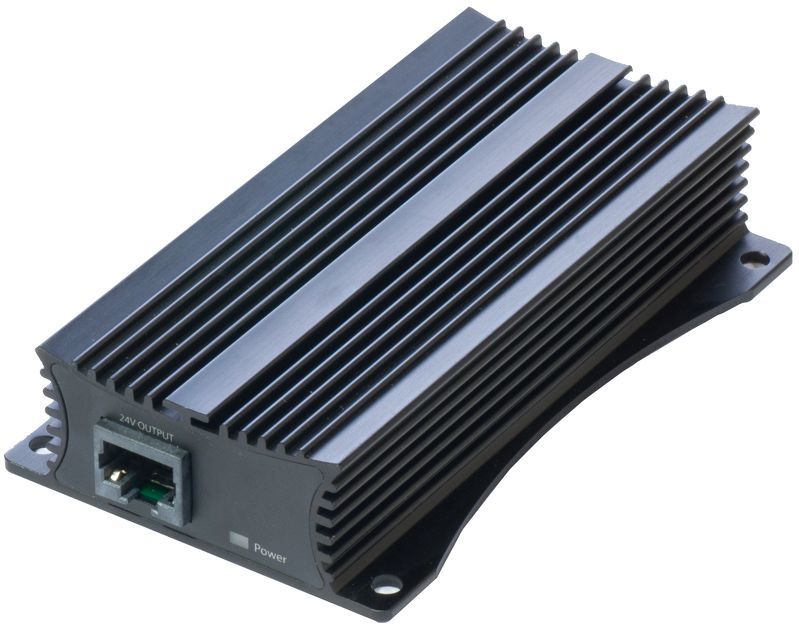

MikroTik RBGPOE-CON-HP
This image may differ from the desired article.
26,74 EUR
( 31,82 EUR incl. VAT )
≈ £22.38  |  ≈ $29.39
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x MikroTik RBGPOE-CON-HP 48 to 24V Gigabit PoE Converter,
Lieske Part No.:102164
Mfg Part No: RBGPOE-CON-HP
Weight:0.5 kg

Product information for MikroTik RBGPOE-CON-HP:

The MikroTik RBGPOE-CON-HP is a Gigabit PoE-Converter, specifically developed for powering RouterBOARD devices via Ethernet cables. It enables the use of 48V PoE sources, regardless of whether they are Passive PoE, Telecom PoE, 802.3af, or 802.3at, to supply RouterBOARD devices with an operating voltage of 8 to 30V. The conversion is achieved by transforming the input voltage of 42 to 57V into a stable output voltage of 24V with a maximum power of 24W (equivalent to 1A at 24V). This PoE-Converter is therefore suitable for connecting existing PoE infrastructures with MikroTik RouterBOARDs that cannot be directly connected to 48V PoE.

Applications

The RBGPOE-CON-HP is used in networks where RouterBOARD devices are to be powered via existing PoE networks without requiring additional power sources or adapters. It is particularly useful in installations where RouterBOARDs are installed at remote locations, such as outdoors, on masts, or in buildings without direct access to power supply. The robust metallic construction and integrated cooling ensure reliable operation even under harsh environmental conditions. The operating temperature ranges from -35°C to +70°C, enabling use in demanding climatic environments.

Features and Equipment in Detail

The converter features two Ethernet ports, with one port for the input voltage (42–57V PoE) and the other for the output voltage (24V). Power supply is via the network cable, with the input side supporting all common PoE standard variants, including Passive PoE, Telecom PoE, 802.3af, and 802.3at. The 24V output voltage is designed for RouterBOARD devices requiring an operating voltage of 8 to 30V. The maximum output power is 24W, sufficient to power even high-performance RouterBOARDs. The integrated cooling ensures efficient heat dissipation to guarantee continuous and stable operational reliability.

Technology Explained Simply

The RBGPOE-CON-HP functions as a voltage converter, stepping down the input voltage of 42 to 57V (PoE) to 24V. This voltage is suitable for most RouterBOARD devices operating in the 8 to 30V range. Power supply is via the Ethernet cable, with PoE technology (Power over Ethernet) enabling the transmission of power and data over a single cable. The integrated cooling and metallic housing construction ensure stable operation even under high loads and temperatures. The Ethernet ports support speeds of 10/100/1000Mbps, ensuring high data transfer rates.

Compatibility and Accessories

The converter is compatible with all RouterBOARD devices requiring an operating voltage of 8 to 30V. The input side supports all common PoE standard variants, including Passive PoE, Telecom PoE, 802.3af, and 802.3at. The 24V output voltage is suitable for most MikroTik RouterBOARDs. The use of shielded Ethernet cables is possible, as the shield connections are integrated into the Ethernet connector, ensuring proper grounding at both ends or at the converter itself. Mounting is done via the integrated mounting holes in the housing, allowing wall mounting.

Installation and Mounting

Installation is done by simply connecting the PoE cable to the input port and the RouterBOARD to the output port. Power supply is via the network cable, eliminating the need for additional power cables. Wall mounting is possible using the integrated mounting holes in the housing. The use of shielded cables is recommended to minimize electromagnetic interference. Installation requires no special tools or additional components.

Operational Advantages

The RBGPOE-CON-HP offers a simple and reliable way to power RouterBOARD devices via existing PoE networks. The robust metallic construction and integrated cooling ensure long service life and high operational reliability. Support for all common PoE standard variants increases flexibility when integrating into existing networks. Wall mounting allows flexible placement, and the use of shielded cables ensures stable data transmission. The operating temperature range of -35°C to +70°C makes the converter suitable for outdoor use as well.

Protection Rating

The metallic construction and integrated cooling indicate a robust design; however, no specific IP rating is specified. Wall mounting and outdoor use are possible, but without a specified protection class.

General
Output voltage24 V
Maximum output power24 W
Output current1 A
Input voltage42-57 V
Supported PoE standard variantsPassive PoE, Telecom PoE, 802.3af, 802.3at
Ethernet speed10/100/1000 Mbps
Operation temperature-35 to +70 °C
Housing materialMetal


Questions & answers

What is the delivery time of MikroTik RBGPOE-CON-HP 48 to 24V Gigabit PoE Converter, ?

The article MikroTik RBGPOE-CON-HP 48 to 24V Gigabit PoE Converter, is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of MikroTik RBGPOE-CON-HP to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you MikroTik RBGPOE-CON-HP 48 to 24V Gigabit PoE Converter, always at the best possible price. We can give you a discount of 2% on MikroTik RBGPOE-CON-HP 48 to 24V Gigabit PoE Converter, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
