MICROSENS Profi Line Switch Industrial Gigabit, PoE, 1x 10/1

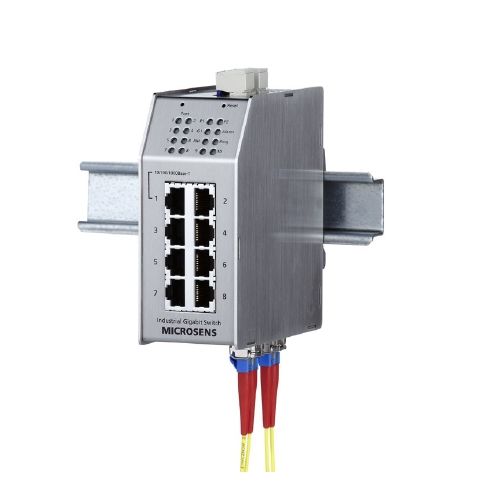

Gigabit Ethernet Industrial Switch for ring circuit with PoE1x 10/100 / 1000Base-T, 7x 10 / 100Base-TX, 3x SFP 100 / 1000Base-X extended temperature range specified: -40 ° ... 70 ° 3x SFP, 8x RJ-45 with PoE, 2x power supplyThe 10-Port GbE Industrial Profi Line Ring Switch by MICROSENS is a versatile and robust solution for demanding network environments. With its compact design and optional Power-over-Ethernet (PoE) support, this switch is ideal for applications such as video surveillance, large-scale WLAN coverage, or industrial control networks. The switch enables reliable, fail-safe, and remotely manageable communication.

Thanks to its support for star, daisy-chain, and ring topologies, the switch offers high flexibility. The integrated ring topology functionality ensures that, in the event of a segment failure, the network connection is restored within less than 50 milliseconds. Additionally, the device features two redundant power supplies that ensure a stable power supply.

The optional PoE functionality, compliant with IEEE 802.3af, allows powering end devices without additional power supplies, which is particularly useful for cameras, WLAN access points, and sensors. For specialized applications, a variant with extended certifications, such as for railway environments (EN50121) or substations (IEC61850), is available.

Technical details:

Type:

• Gigabit Ethernet Switch (Layer 2+), IEEE 802.3 compliant

Performance:

• Switching capacity: Full wire-speed, non-blocking
• MAC addresses: 8,192 (automatic learning and aging)

Operating conditions:

• Operating temperature: -20 °C to +60 °C (standard models)
• Operating temperature: -40 °C to +75 °C (extended models)
• Humidity: 5–90 %, non-condensing
• Storage temperature: -40 °C to +85 °C

Ports:

• Local Ports:
- 7x 10/100TX Fast Ethernet (RJ-45)
- 1x 10/100/1000Base-T (Combo port, only for SFP variants)

• Uplinks:
- 2x 100/1000Base-X (SFP, Multimode or Single Mode)
- 1x additional Combo port (1000Base-X or 10/100/1000Base-T)

• Cable lengths:
- Twisted Pair: max. 100 m
- Fiber Multimode: max. 500 m (62.5 µm) or 550 m (50 µm)
- Fiber Single Mode: max. 10 km (9 µm)


Power-over-Ethernet (PoE):

• IEEE 802.3af (only PM models)
• Power: max. 15.4 W/port, total max. 65 W

Power supply:

• Standard models: 24 V DC, typ. power consumption 8 W
• PoE models: 48 V DC, typ. power consumption 8 W (without PoE), max. 65 W (with PoE)
• Redundant power supply: 2x 2-pole screw terminals

Management:

• Supports IPv4/IPv6 dual stack
• Web manager (HTTP/HTTPS), Telnet, SSH, SNMP v1/v2c/v3
• Automatable CLI scripting functions
• Configurations storable on optional SMC card

Mechanics:

• Dimensions: 50 x 116 x 108 mm (W x H x D)
• Weight: 748 g
• Protection class: IP30
• Mounting: DIN rail mounting according to DIN EN 50 022

Certifications:

• CE, EN60950-1, EN55022, EN55024
• Industrial: EN61000-6-2/-3/-4
• Special models (B variant): EN50121, IEC61850

Key features:

• Ring topology with <50 ms switchover time in case of segment failure
• Integrated alarm contact for device status monitoring
• Supports redundant power supply

Scope of delivery:

• 1x Industrial Profi Line Switch
• 1x Quick start guide

Ordering information:

• MS650869M-V2: 24 V DC, non-PoE
• MS650869PM-48-V2: 48 V DC, with PoE
• MS650869MX-V2: extended temperature range, non-PoE
• MS650869PMX-48-V2: extended temperature range, with PoE
• Additional variants with SMC or fixed optical ports available
