MICROSENS Installation Switch 6 Port GBE, horizon. Installation 6x

Gigabit Ethernet Installation Switch 45x45, 4x10 / 100 / 1000T with 2x10 / 100 / 1000Base-T up- & downlink, horizontal installation, 48V DCStromversorgungsanschluss, management capability (web / telnet / SNMP / optional NMPSoftware), VLANs, QoS, Security, 5x PoE PSE / PoE PD 1x

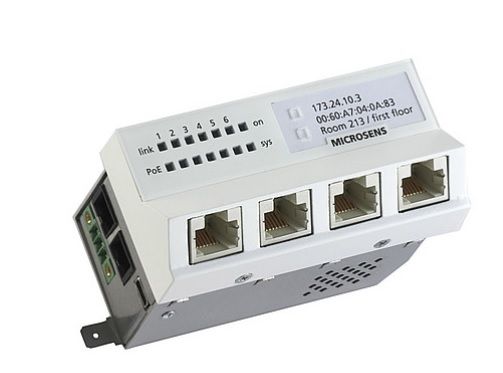

The MICROSENS 6-Port Gigabit Ethernet Micro Switch G6 with Twisted Pair Up- and Downlinks is the ideal solution for demanding network environments with structured cabling. Based on the successful FTTO series, this switch features six twisted pair ports, including one RJ-45 uplink. The PoE+ variant allows both powering devices and being powered via the PD (Powered Device) port.

Compact, fanless, and highly reliable, the Micro Switch G6 is designed for installation in cable ducts, floor tanks, and other space-constrained environments. With cutting-edge Marvell chipset technology, it delivers a future-proof, flexible platform.

Product Variants:

• PoE+ Variants:
- 1x RJ-45 uplink (PD) + 5x RJ-45 PoE+ (PSE) (horizontal or vertical)

• 230V Variants (non-PoE):
- 1x RJ-45 uplink + 5x RJ-45 (horizontal or vertical)


Features:



• Gigabit Ethernet Switch:
- Fanless design, energy-efficient Marvell switching chip
- Layer-2+ switching, full wire-speed, non-blocking
- Supports jumbo frames (max. 10,240 bytes)
- 8,192 MAC addresses with automatic learning and aging

• Energy Efficient Ethernet (EEE):
- Optimized power consumption according to IEEE 802.3az
- Up to 50% energy savings

• Network Management:
- Web Manager (HTTP/HTTPS), Telnet/SSH, SNMP v1/v2c/v3
- Integrated Linux OS with 800 MHz ARM CPU
- IPv4/IPv6 dual stack, CLI scripting for automated tasks
- Replaceable microSD card for configurations, scripts, and firmware

• Power-over-Ethernet (PoE+ variants):
- IEEE 802.3at (max. 30 W per port)
- Total power limit: max. 80 W
- PoE-PD functionality (uplink port as powered device)

• Ports:
- Uplink: 1x RJ-45 (1000Base-T)
- Local: 5x RJ-45 (10/100/1000Base-T)
- RS-232 console port (mini-USB)

• Mounting:
- Snap-in mounting (45 mm) for easy installation
- Compatible with standard installation systems
- Available in horizontal or vertical designs


Technical Specifications:



• Switching Capacity: 32 Gbps
• PoE Power: Max. 30 W per port, max. 80 W total
• Power Supply:
- PoE variant: Powered via PD port or external 54 V DC power supply
- 230V variant: Powered via 195–265 V AC

• Dimensions: 90 x 45 x 58 mm (L x W x H, without connectors)
• Weight: 325 g
• Operating Temperature: 0 to 40 °C
• MTBF: 100,000 hours

Package Contents:

• 1x Micro Switch G6
• 1x Grounding cable (20 cm)
• 1x Power connector
• 1x Quick Start Guide
• 1x Set of pictogram stickers

Ordering Information:

• Micro Switch G6 with PoE+ (54 VDC):
- MS450186PM-48G6+: Horizontal, pure white (RAL 9010)
- MS450186PM-48G6+GT: Horizontal, graphite gray (RAL 7021)
- Additional color options and vertical variants available

• Micro Switch G6 230V (non-PoE):
- MS450186M-G6+: Horizontal, pure white (RAL 9010)
- MS450186M-G6+GT: Horizontal, graphite gray (RAL 7021)

• Accessories:
- SFP transceivers, microSD cards, console cables, power supplies


Applications:


The Micro Switch G6 is ideal for FTTO solutions in offices, schools, and other structured cabling environments. The PoE+ functionality enables the operation of IP phones, cameras, and access points. Its compact design and versatile mounting options make it suitable for various installation scenarios.
