MICROSENS MS440217PM-48G6

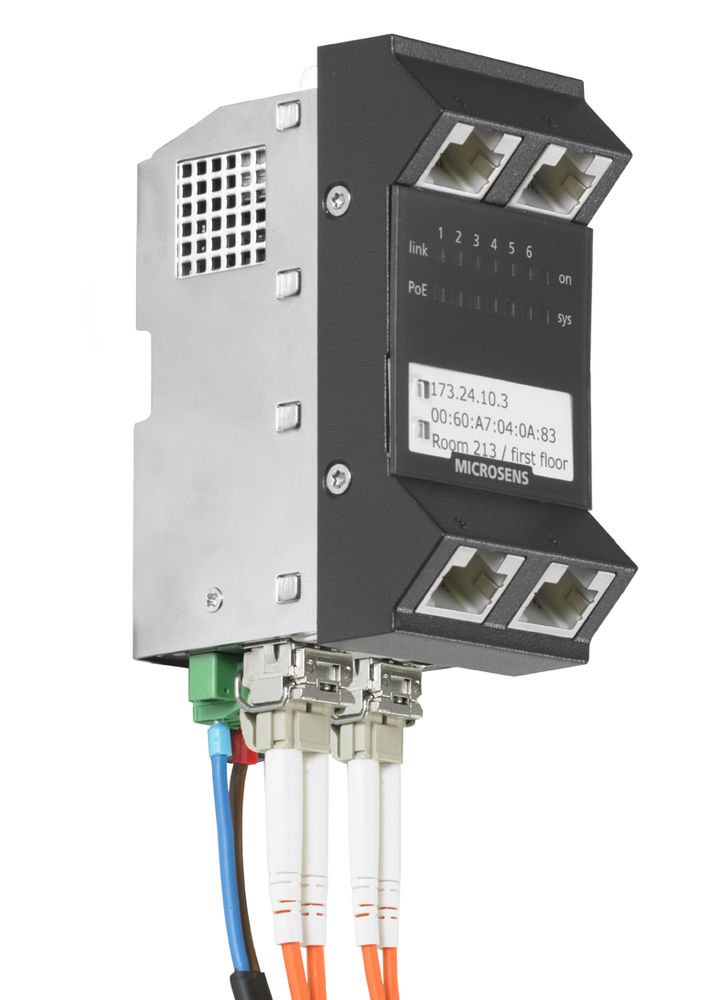

Microsens installation switch GBE 6 port, vert. installation, 4xRJ45, 2xSFP, PoE+, MS440217PM-48G6
GBE installation switch 4x10/100/1000Base-T + PoE/PoE+, uplink: 2x 100/1000Base-X SFP slot, vertical installation, 44..57 VDC power supply, 4x RJ-45, 2x SFP slots, 1x 3-pin DCThe MICROSENS 6-Port Gigabit Ethernet Micro Switch G6 with fiber uplink and optional PoE+ support is a groundbreaking solution in Fiber-To-The-Office (FTTO) technology. It combines state-of-the-art technology, a compact design, and flexible deployment options. The switch is available in various configurations to meet individual customer requirements.

The Micro Switch G6 offers high reliability, robust quality, and minimal installation time. With its fanless design and compact size, it is ideal for installation in cable ducts, floor tanks, or custom environments such as surface-mounted housings.

Product Variants:

• Micro Switch G6 PoE+:
- 1x Fiber, 5x RJ-45 PoE+ PSE (horizontal or vertical)
- 2x Fiber, 4x RJ-45 PoE+ PSE (horizontal or vertical)


• Micro Switch G6 230V (no PoE):
- 1x Fiber, 5x RJ-45 (horizontal or vertical)
- 2x Fiber, 4x RJ-45 (horizontal or vertical)

*Note: A pure RJ-45 variant is also available (separate datasheet).*


Features:



• Gigabit Ethernet Switch:
- Fanless design, energy-efficient Marvell switching chip
- Layer-2+ switching, full wire-speed, non-blocking
- 8,192 MAC addresses, automatic learning and aging
- Supports jumbo frames (max. 10,240 bytes)

• Energy Efficient Ethernet (EEE):
- Power optimization according to IEEE 802.3az
- Up to 50% reduced energy consumption

• Network Management:
- Web Manager (HTTP/HTTPS), Telnet/SSH, SNMP v1/v2c/v3
- Integrated Linux OS with 800 MHz ARM CPU
- Support for IPv4/IPv6 dual stack
- Automated tasks via CLI scripting
- Replaceable microSD card for configuration, firmware, and scripts

• Power-over-Ethernet (PoE+ variants):
- IEEE 802.3at (max. 30 W per port)
- Total power limit: max. 80 W

• Ports:
- Uplink: 1x or 2x Fiber (100/1000Base-X, SFP or SC/ST) or 1x RJ-45
- Local: 4x or 5x RJ-45 (10/100/1000Base-T)

• Mounting:
- Snap-in mounting (45 mm) for quick installation
- Compatible with standard installation systems
- Available in horizontal or vertical designs


Technical Specifications:



• Switching Capacity: 32 Gbps
• MAC Addresses: 8,192
• PoE Power: Max. 30 W per port, max. 80 W total
• Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
• Operating Temperature: 0 °C to 40 °C
• MTBF: 100,000 hours

Package Contents:

• 1x Micro Switch G6
• 1x Grounding cable (20 cm)
• 1x Power connector
• 1x Quick Start Guide
• 1x Set of pictogram stickers

Ordering Information:

• Micro Switch G6 with PoE+:
- MS440200PM-48G6+: 1x Fiber uplink, 5x PoE+ ports, horizontal
- MS440210PM-48G6+: 1x Fiber uplink, 5x PoE+ ports, vertical
- Additional variants with different uplink options and designs available.

• Accessories:
- SFP transceivers (multimode or singlemode)
- Memory card (microSD) for configuration and firmware updates
- Console cable (Mini-USB to SUB-D9)


Applications:


The Micro Switch G6 is ideal for FTTO solutions in office buildings, schools, and hospitals. Its PoE+ functionality enables it to power devices such as IP phones, cameras, or access points directly. Its compact design and easy installation make it particularly flexible for a variety of environments.
