Microsens Micro-Switch 45x45 ruggedized, DIN rail 24V, vertical, 4xRJ45, 2xSFP, MS440217MXH-24G6

Microsens Micro-Switch 45x45 ruggedized, DIN rail 24V, vertical, 4xRJ45, 2xSFP, MS440217MXH-24G6
Gigabit Ethernet Inst.-Switch 45x45 ruggedized 19
4x10/100/1000TX, 2x100/1000X SFP slots
vertical mounting, manageable, 24 VDC external

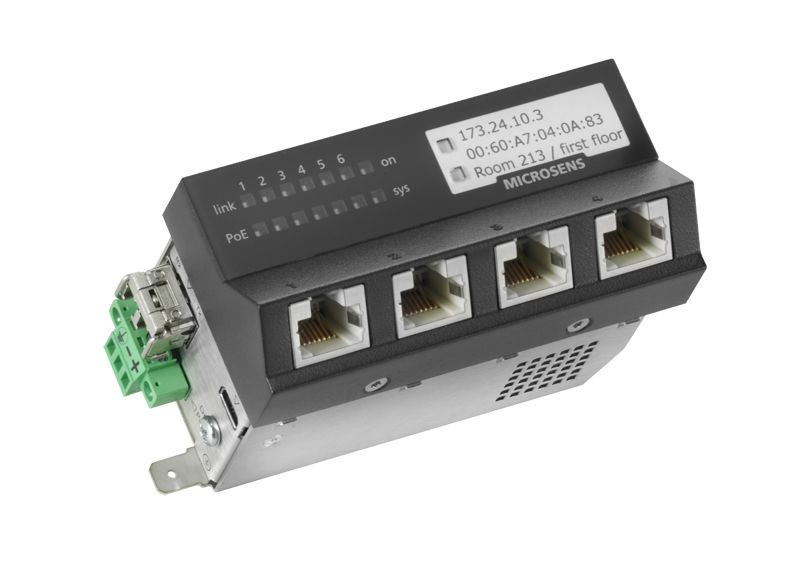

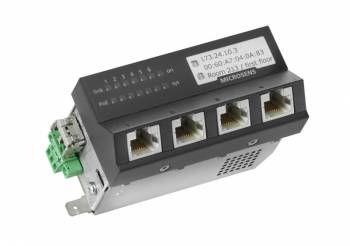

power supply, LANs ,QoSThe Ruggedized Micro Switch G6 by MICROSENS is a robust and flexible Gigabit Ethernet switch designed for industrial applications and environments with extended temperature requirements. With an operating temperature range of -25 °C to +65 °C, this switch is ideal for demanding environments such as control cabinets without defined ambient conditions.

Its compact design, combined with a 35-mm DIN rail mount and direct 24 V DC power input, ensures easy installation and maximum reliability. The switch is completely fanless, making it particularly durable and low-maintenance. It comes standard with a graphite gray cover.

The Ruggedized Micro Switch G6 is available in various configurations, including models with one or two SFP uplink ports as well as pure RJ-45 port models. This makes it adaptable to diverse requirements. With its powerful management functions and support for modern networking standards, it is optimized for future-proof applications.

Technical details:

Type:

• Gigabit Ethernet Switch (Layer 2+), IEEE 802.3 compliant

Performance:

• Switching capacity: Full wire-speed, non-blocking
• MAC addresses: 8,192 (automatic learning and aging)
• Jumbo frames: up to 10,240 bytes

Ports:

• Uplink:
- 0x/1x/2x SFP slots for 100/1000Base-X (depending on the model)

• Local:
- 6x/5x/4x RJ-45 ports (10/100/1000Base-T, Auto-Negotiation, Auto MDI/MDI-X)


Power supply:

• Input voltage: 18–75 V DC (typ. 24 V)
• Power consumption: typ. 4.5 W
• Connector: 3-pole screw terminal (PE/-/+)

Management:

• Linux-based operating system with fast boot time
• Web Manager (HTTP/HTTPS), Telnet, SSH, SNMP v1/v2c/v3
• Supports IPv4/IPv6 dual stack
• Automatable routine tasks via CLI scripting
• Firmware and configuration management via FTP, SFTP, or TFTP

Mounting:

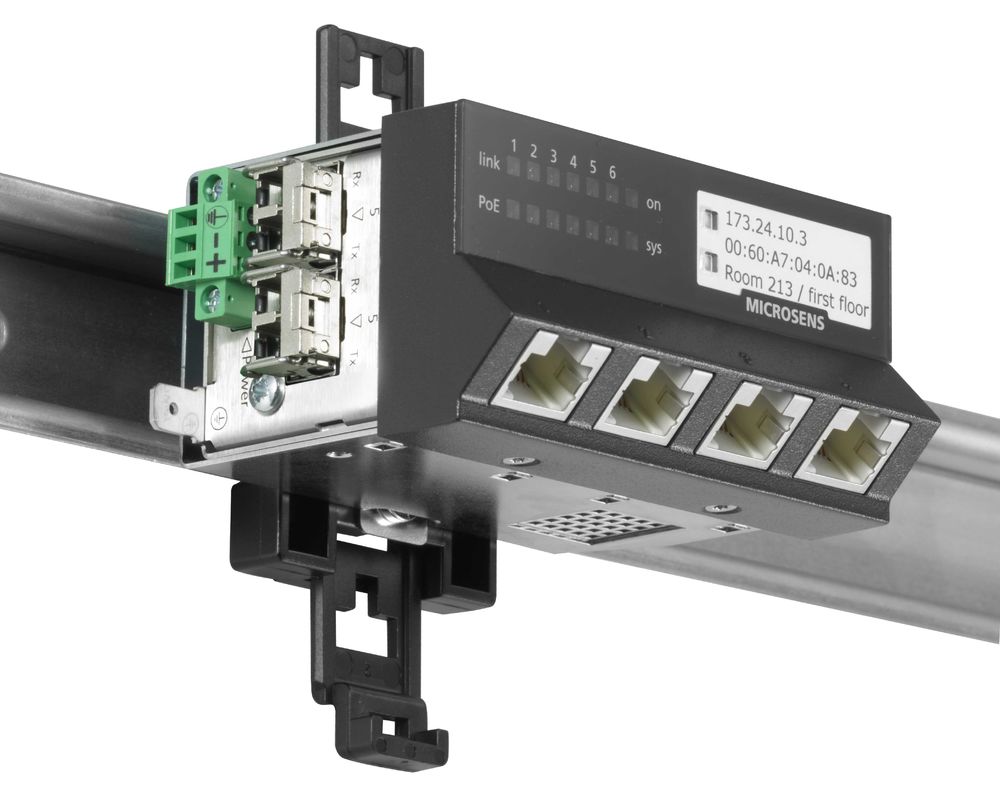

• DIN rail mount according to DIN EN 50022 for control cabinet installation
• Compatible with common installation systems
• Dimensions: 90 x 78.2 x 47.4 mm (L x H x W, without connectors)

Operating conditions:

• Operating temperature: -25 °C to +65 °C
• Storage temperature: -25 °C to +85 °C
• Humidity: 10–90 %, non-condensing

Key features:

• Fanless operation for maximum reliability
• Optional: microSD card for storing and transferring configurations
• Supports SFP diagnostic functions for fiber connections

Scope of delivery:

• 1x Ruggedized Micro Switch G6
• 1x Grounding cable (PE), 20 cm
• 1x Power connector
• 1x DIN rail mount (assembled)
• 1x Quick start guide
• 1x Set of pictogram stickers

Ordering information:

• MS440219MXH-24G6+: 1x SFP uplink, 5x RJ-45
• MS440217MXH-24G6+: 2x SFP uplink, 4x RJ-45
• MS450187MXH-24G6+: 1x TP uplink, 5x RJ-45
