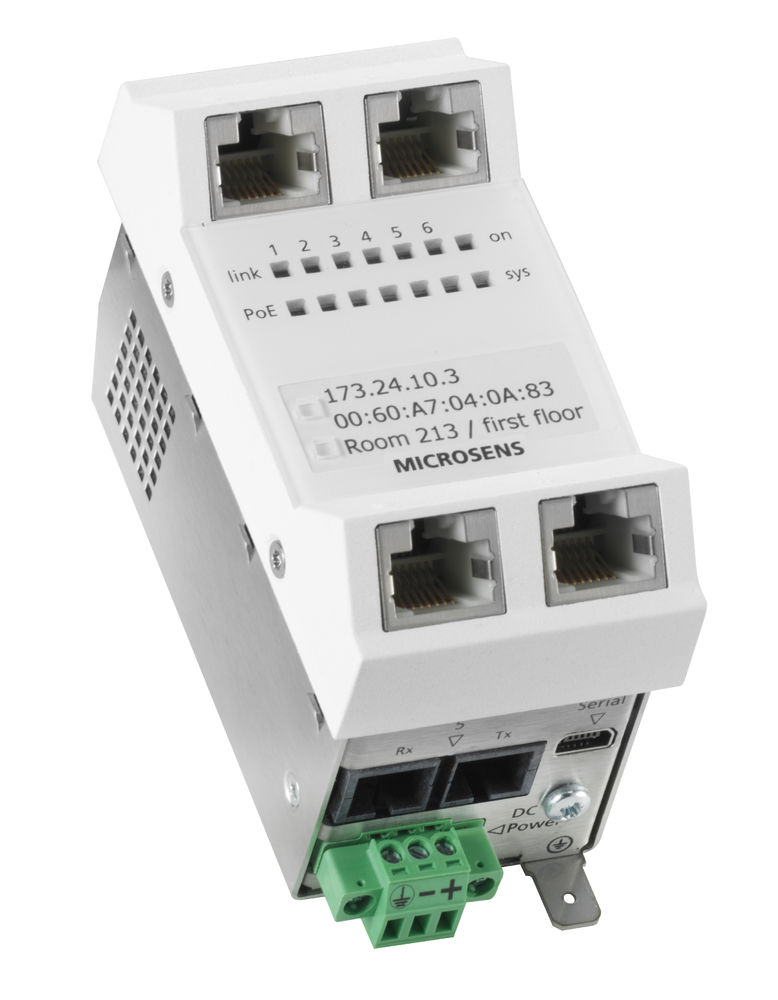

Microsens installation switch GBE 6 port, vert. installation, 5xRJ45, 1xSC duplex, PoE+, MS440212PM-48G6+

Microsens installation switch GBE 6 port, vert. installation, 5xRJ45, 1xSC duplex, PoE+, MS440212PM-48G6+
GBE installation switch 4x10/100/1000Base-T + PoE/PoE+, uplink: 1x1000Base-LX, SC monomode 1310 nm, downlink: 1x10/100/1000Base-T + PoE+ vertical installation, 44..57 VDC power supply, 5x RJ-45, 1x SC duplex, 1x 3-pin DCThe 6-Port GbE Micro Switch G6 with optional PoE+ and fiber uplink port is the ideal solution for compact network environments and modern “Fiber-To-The-Office” applications. This device stands out for its flexibility, variability, and forward-looking technology. Featuring a monolithic, fanless design, the switch provides high reliability and durability. Equipped with an energy-efficient switching chip, it supports the IEEE 802.3az standard, dynamically adjusting power consumption based on network load.

The Micro Switch G6 is available in various configurations, including horizontal and vertical designs, with 1 or 2 fiber uplink ports and optional PoE+ functionality. PoE+ powers devices such as IP cameras, access points, and VoIP phones with up to 30 W per port, with a maximum total output of 80 W. The switch can be managed via an intuitive web interface, SNMP, or CLI scripts, and its firmware is based on a robust Linux operating system. With features such as jumbo frames, VLAN support, and Layer-2+ switching, it is suitable for small and larger networks alike.

Thanks to its compact design, the switch can be installed in trunking channels, floor tanks, or surface-mounted housings. In addition to high performance, the device offers simple installation, supported by a snap-in mounting system. The “Made in Germany” production process ensures consistently high quality and reliability.

Technical details:

Type:

• Gigabit Ethernet Switch, Layer-2+, Store-and-Forward

Performance:

• Switching capacity: 32 Gbps
• MAC addresses: 8,192, automatic learning and aging
• Jumbo frames: max. 10,240 bytes

Ports:

• Local ports: 4 or 5x RJ-45 (10/100/1000Base-T)
• Uplink ports: 1 or 2x SFP slots (100/1000Base-X) or 1x fiber port (1000Base-SX/-LX)
• PoE+: IEEE 802.3at, max. 30 W/port, max. 80 W total output

Network management:

• Web manager (HTTP/HTTPS), Telnet/SSH, SNMP v1/v2c/v3
• CLI scripting, central management platform (NMP)
• IPv4/IPv6 Dual Stack

Power supply:

• 54 V DC (PoE variant), 230 V AC (non-PoE variant)
• Power consumption: typ. 4.5 W (without PoE), max. 80 W (with PoE)

Mounting:

• Snap-in mounting, compatible with standard installation systems

Environmental conditions:

• Operating temperature: 0 to 40 °C
• Storage: -20 to 85 °C
• Humidity: 10–90%, non-condensing

Dimensions & weight:

• Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
• Weight: 325 g

Scope of delivery:

• 1x Micro Switch G6
• 1x Grounding cable (PE)
• 1x Power supply connector
• 1x Quick start guide
• 1x Set of pictogram stickers

Quality:

• Manufactured in Germany
• Burn-in test for reliability

Optional extensions:

• Memory card (microSD) for storing firmware and configuration

Applications:

• Networks in office, industrial, or medical environments
• Power-over-Ethernet for IP devices
