MICROSENS Installation Switch 6 Port GBE, vert .. installation, 5xRJ

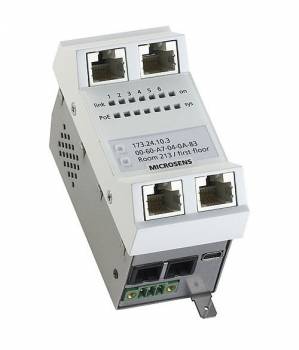

Gigabit Ethernet Installation Switch 45x45 vertical installation, 4x10 / 100 / 1000Base-T with 1x 1000SX uplink and 10/100 / 1000T downlink, 850nm multimode SC, 44..57 VDC power supply terminal, management capability (web / telnet / SNMP / optional NMPSoftware), VLANs , QoS, Security, 5x Power-over-Ethernet (PSE), 5x RJ-45, 1x SC duplex, 1x 3-pole DCThe 6-Port GbE Micro Switch G6 is a versatile and compact network solution, part of MICROSENS' innovative Fiber-To-The-Office (FTTO) product line. With advanced features and a modular design, the switch offers flexible adaptation to individual customer requirements. Available in various configurations, the Micro Switch G6 supports both fiber optic and RJ-45 connections and optionally provides Power-over-Ethernet (PoE+). The devices are available in horizontal and vertical designs and can be mounted in trunking systems, floor tanks, or custom enclosures.

This fanless Gigabit Ethernet Switch stands out with its energy efficiency, robust construction, and easy installation. With advanced functionality, including support for ring topologies, VLANs, and centralized management, the Micro Switch G6 is ideal for office environments, industrial applications, and specialized deployments.

Technical Specifications:

Switch:

• Type: Gigabit Ethernet Switch
• Layer 2+, IEEE 802.3 compliant
• Switching Capacity: 32 Gbps
• MAC Addresses: 8,192, automatic learning and aging
• Jumbo Frames: up to 10,240 bytes

Power-over-Ethernet (PoE+):

• Standard: IEEE 802.3at
• Power: max. 30 W per port, total max. 80 W
• PoE Ports: 4 or 5 x 10/100/1000Base-T (RJ-45), depending on the model
• External Power Supply: Typ. 54 VDC

Connections:

• Uplink Options:
- 1x 1000Base-SX/-LX (SC, ST, LC, MT-RJ, EM-RJ, E-2000)
- 1x or 2x SFP slot (100/1000Base-X)
- 1x RJ-45 (1000Base-T)

• Local Ports: 5x (4x for 2x SFP variant) 10/100/1000Base-T (RJ-45)
• Auto-MDI/MDI-X for simplified cabling
• RS-232 Console Port (mini-USB or RJ-45)

Power Supply:

• DC Input: 44..57 VDC, typ. 54 V; max. power consumption: 80 W
• AC Input: 195..265 VAC, 50..60 Hz; typ. power consumption: 4.5 W
• Connections: 3-pin terminal block, additional grounding via 6.3 mm flat connector

Operating Conditions:

• Operating Temperature: 0 to 40 °C
• Storage Temperature: -20 to 85 °C
• Humidity: 10 to 90 %, non-condensing

Mechanical:

• Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
• Weight: 325 g
• Mounting: Snap-in mounting, compatible with 45-mm installation systems

Network Management:

• Operating System: Linux
• Management Interfaces: Web Manager (HTTP/HTTPS), Telnet, SSH, SNMP v1/v2c/v3
• Support for IPv4/IPv6 Dual Stack
• Integrated scripting for automated tasks
• Centralized Management Platform: NMP

Standards:

• Safety: EN 60950-1:2011-01
• EMC: CE 2004/108/EC, EN 55022:2011-12, EN 55024:2011-09

Quality:

• Made in Germany: Manufactured and quality-controlled in Hamm, Germany
• Reliability: 48-hour burn-in test to ensure functionality

Package Contents:

• 1x Micro Switch G6
• 1x Grounding Cable (20 cm)
• 1x Power Connector
• 1x Quick Start Guide
• 1x Set of Pictogram Stickers

Ordering Information:

• PoE+ (54 VDC) Variants:
- MS440200PM-48G6+: 1x 1000Base-SX (ST)
- MS440207PM-48G6+: 2x SFP slots

• Non-PoE (230 VAC) Variants:
- MS440200M-G6+: 1x 1000Base-SX (ST)
- MS440207M-G6+: 2x SFP slots


Accessories:

• SFP Transceivers:
- Multimode 850 nm, 1000Base-SX: MS100200DX
- Single Mode 1310 nm, 1000Base-LX: MS100210DX

• Memory Cards:
- Standard microSD: MS140894X-4G
- Version with MAC Address: MS140894X-4G-M


Further Information:

Detailed technical specifications and configuration documents are available in the download center on the MICROSENS website.
