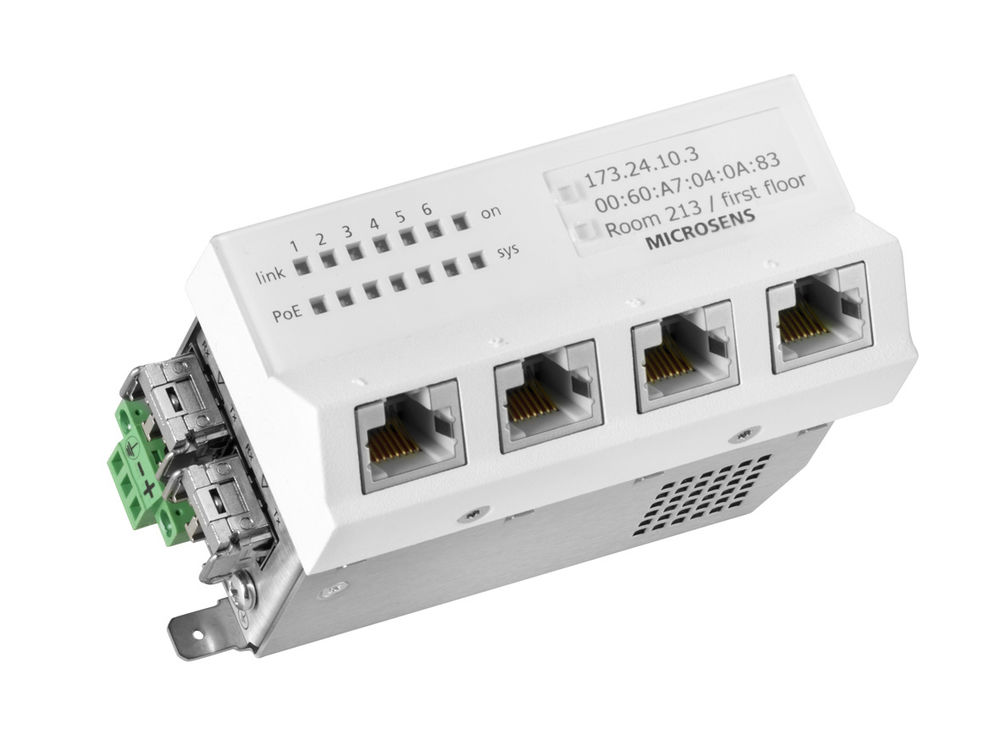

Microsens MS440207PM-48G6

6-Port GbE Micro Switch G6 PoE+ 2x 100/1000X SFP slots, horizontal, managed, 4x 10/100/1000T PoE+, 44..57VDC, microSD slot, RS-232 port (RJ-45)Smallest and Most Compact Gigabit Ethernet Switch for Tool-Free Installation

This ultra-compact 6-port Gigabit Ethernet switch stands out with its space-saving M45 design, allowing for quick and tool-free installation in cable ducts, floor tanks, and other confined spaces. Despite its small size, the switch delivers full gigabit performance with a non-blocking switching design, ensuring fast and reliable data transmission.

For maximum network security, the switch supports advanced encryption and authentication standards such as SSH, HTTPS, SNMPv3, Port Security 802.1x, and full RADIUS NAC compatibility. With Power-over-Ethernet (PoE+) delivering up to 30 W per RJ-45 port, connected devices such as IP cameras, access points, or VoIP phones can be powered directly via the switch—perfect for a flexible network setup without additional power supplies.

Intuitive management is provided via a user-friendly web interface, SSH, SNMP, and the MICROSENS NMP software, enabling centralized control and monitoring. For maximum connectivity, the switch includes a fiber SFP uplink with dual-speed 100/1000Base-X. It is also optionally available as a 2x fiber version or with permanently integrated fiber optics (SC/ST).

Technical Data:

• Form Factor: M45 design for tool-free installation
• Ports: 6-port non-blocking full-gigabit switch
• Security:
- SSH, HTTPS, SNMPv3
- Port Security 802.1x
- Full RADIUS NAC compatibility

• Power-over-Ethernet (PoE+):
- Up to 30 W per RJ-45 port

• Management:
- Web, SSH, SNMP interface
- MICROSENS NMP software

• Fiber Uplink:
- SFP with dual-speed 100/1000Base-X
- Optional 2x fiber version or with integrated fiber optics (SC/ST)


Scope of Delivery:

• Gigabit Ethernet switch
• Installation manual
