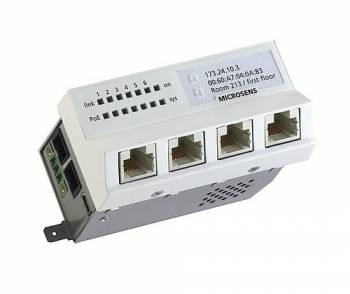

MICROSENS Installation Switch 6 Port GBE, horizon. Installation, 5

Gigabit Ethernet Installation Switch 45x45 horizontal installation, 4x10 / 100 / 1000Base-T with 1x 1000LX uplink and 10/100 / 1000T downlink, horizontal installation, 1310nm single-mode SC 10km, 44..57 VDC power supply terminal, management capability (web / telnet / SNMP / optional NMP-Software), VLANs, QoS, Security, 5x Power-over-Ethernet + (PSE)The 6-Port GbE Micro Switch G6 by MICROSENS is a cutting-edge, flexible solution as part of the Fiber-To-The-Office (FTTO) concept. Designed as a compact, fanless 6-port Gigabit Ethernet switch, it features innovative technology, extensive model variations, and a small footprint. With options like fiber optic uplink ports (1x or 2x) and PoE+ support, it is ideal for demanding network applications in cable ducts, floor boxes, or custom enclosures.

With IEEE 802.3at PoE+ functionality (up to 30 W per port), devices like IP cameras or access points can operate without additional power supplies. The device features a monolithic design, exceptional robustness, quick installation, and maximum reliability.

Technical Specifications:

Switch:

• Type: Gigabit Ethernet Switch
• Layer 2+, IEEE 802.3 compliant
• Performance: Store-and-Forward
• Switching Capacity: 32 Gbps
• MAC Addresses: 8,192 addresses, automatic learning and aging
• Jumbo Frames: Max. 10,240 bytes

Twisted Pair Ports:

• Number: 5 ports (4 with 2x SFP variant)
• Type: Gigabit Ethernet, Triple Speed (10/100/1000Base-T)
• Connector: RJ-45 (shielded)
• Cable Type: Category 5e, max. length: 100 m
• Flow Control: Pause Frames (IEEE 802.3x), configurable

Fiber Ports:

• Types:
- 1000Base-SX (Multimode, max. 550 m)
- 1000Base-LX (Single Mode, max. 10 km)
- Optional: SFP slots (100/1000Base-X)

• Connector: SC-duplex, ST, LC, MT-RJ, EM-RJ, E-2000 (varies by model)

Power-over-Ethernet (PoE+):

• Standard: IEEE 802.3at
• Max. Power: 30 W/port
• Total Power Budget: 80 W
• External Power Supply: Typical 54 V DC

Management:

• Supported Protocols: SNMP v1/v2c/v3, Telnet/SSH, Web Manager (HTTP/HTTPS)
• Operating System: Linux OS
• CPU: High-Performance ARM 800 MHz
• Features: IPv4/IPv6 Dual Stack, Central Management (NMP), Firmware Updates via FTP/SFTP/TFTP

Mechanical:

• Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
• Weight: 325 g
• Mounting: Snap-in mounting (45 mm) for cable ducts, floor boxes, and other installation systems

Environmental Conditions:

• Operating Temperature: 0 to 40 °C
• Storage Temperature: -20 to +85 °C
• Humidity: 10 to 90%, non-condensing

Power Supply:

• DC Input: 44–57 V DC (typ. 54 V)
• Power Consumption: Typical 4.5 W (without PoE), max. 80 W (with PoE)

LED Indicators:

• 14 LEDs, switchable off
• Status indicators: Ports, PoE, System readiness

Package Contents:

• 1x Micro Switch G6
• 1x Grounding cable (PE), 20 cm
• 1x Power connector
• 1x Quick Start Guide
• 1x Set of pictogram stickers

Optional Accessories:

• Micro Storage Media Card (microSD) for configuration and firmware storage
• SFP Transceivers (1.25G SX, 1.25G LX, 155M FX, WDM)
• Console Cable (Mini-USB to SUBD-9 or RJ-45)
• Network Management Software (NMP Professional, NMP Server)

Variants Overview:

• Micro Switch G6 PoE+ (horizontal and vertical layout):
- 1x fiber uplink + 5x RJ-45 PoE+ (PSE)
- 2x fiber uplink + 4x RJ-45 PoE+ (PSE)

• Micro Switch G6 without PoE (horizontal and vertical layout):
- 1x fiber uplink + 5x RJ-45
- 2x fiber uplink + 4x RJ-45


Notes:

• Made in Germany: All variants are manufactured in Germany and undergo extensive quality tests.
• Burn-In Test: Each device is stress-tested under load for functionality prior to shipment.

Ordering Information:

• Article Numbers: MS440200PM-48G6+, MS440207PM-48G6+ (and others depending on the variant)
