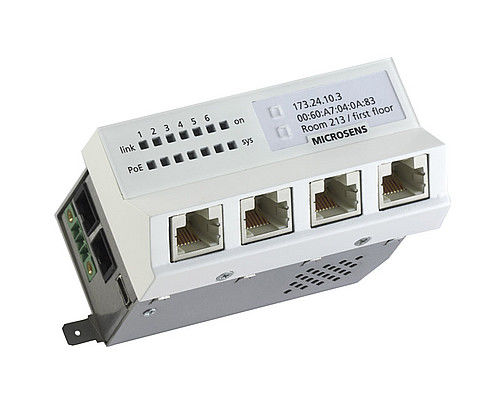

Gigabit Ethernet Installation Switch 45x45 horizontal installation, 4x10 / 100 / 1000T with 1000LX uplink and 10/100 / 1000T downlink, 1310nm single-mode SC 10km, int. 230 VAC power supply, management capability (web / telnet / SNMP / optional NMP-Software), VLANs , QoS, SecurityThe MICROSENS 6-Port GbE Micro Switch G6 with fiber-optic uplink port(s) and optional PoE+ functionality is a versatile and high-performance solution for modern networking environments. As part of the forward-looking Fiber-To-The-Office (FTTO) concept, this compact switch excels in flexibility, efficiency, and reliability. It is particularly well-suited for applications with limited space, such as trunking channels, floor tanks, or custom enclosures. Designed as a monolithic, fanless device, it ensures quick installation and robust operation.

The switch is always configured as a 6-port device, with various available versions: models with one or two fiber-optic uplink ports and the option for PoE+ functionality enable optimal adaptation to a wide range of requirements. The PoE+ functionality (Power over Ethernet) allows connected devices, such as IP phones or cameras, to be powered directly, eliminating the need for separate power supplies.

Technical details:

Type:

• Gigabit Ethernet Switch (Layer 2+), IEEE 802.3 compliant

Performance:

• Switching capacity: 32 Gbps
• MAC addresses: 8,192 (automatic learning and aging)
• Jumbo frames: up to 10,240 bytes

Ports:

• Uplink:
- 1x or 2x fiber-optic uplink (SC/ST duplex, 1000Base-SX/-LX, SFP slots for 100/1000Base-X)
- 1x RJ-45 (1000Base-T, optional for certain models)

• Local:
- 4x or 5x RJ-45 ports (10/100/1000Base-T, optionally with PoE+)

PoE+ functionality (optional):

• IEEE 802.3at (max. 30 W/port)
• Total PoE power: max. 80 W
• External power supply: typ. 54 V DC

Network management:

• Linux-based operating system
• Support for IPv4/IPv6 dual stack
• Web manager (HTTP/HTTPS), Telnet, SSH
• SNMP v1/v2c/v3, CLI scripting for automation
• Firmware and configuration updates via FTP/SFTP/TFTP

Mounting:

• Snap-in mounting (45 mm)
• Compatible with standard installation systems
• Beveled edges allow installation in double frames

Dimensions & weight:

• Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
• Weight: 325 g

Power supply:

• PoE variant: 44–57 V DC (typ. 54 V)
• Non-PoE variant: 230 V AC (195–265 V)
• Power consumption: typ. 4.5 W (without PoE), max. 80 W (incl. PoE)

Operating conditions:

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 85 °C
• Humidity: 10–90%, non-condensing

Reliability:

• MTBF: 100,000 hours (MIL-HDBK-217F)

Key features:

• Supports up to two independent ring topologies
• Optional: microSD card for configuration and firmware management

Scope of delivery:

• 1x Micro Switch G6
• 1x Grounding cable (PE), 20 cm
• 1x Power supply connector
• 1x Quick start guide
• 1x Set of pictogram stickers

Ordering information:

• MS440200PM-48G6+: PoE+ variant, 1x fiber (ST, 1000Base-SX), horizontal form factor
• MS440207PM-48G6+: PoE+ variant, 2x fiber (SFP), horizontal form factor
• MS440200M-G6+: 230 V variant, 1x fiber (ST, 1000Base-SX), horizontal form factor
• MS440207M-G6+: 230 V variant, 2x fiber (SFP), horizontal form factor
